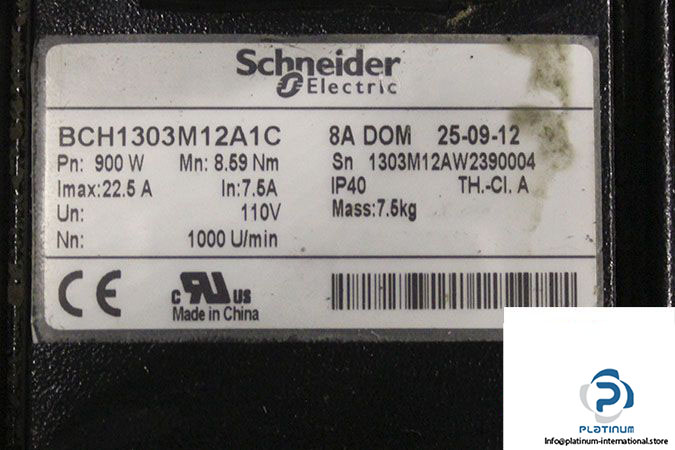

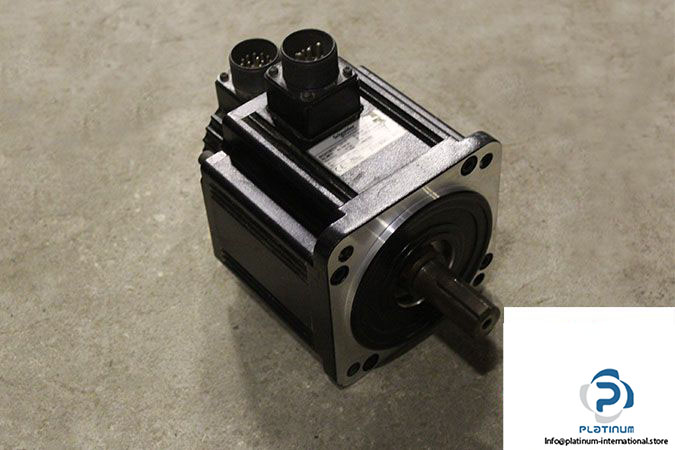

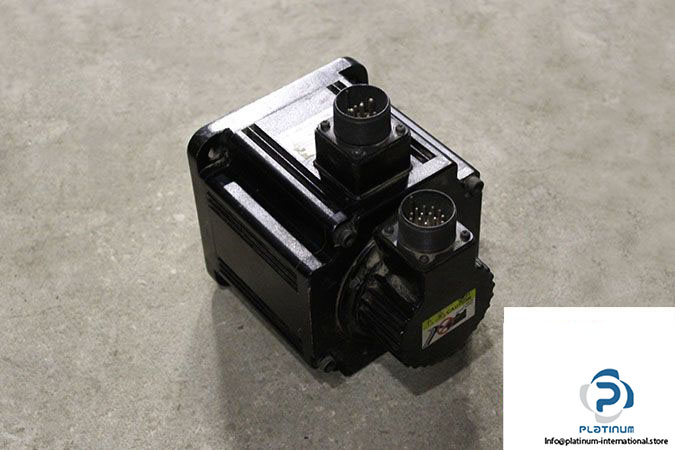

Schneider BCH1303M12A1C Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BCH1303M12A1C

Rated Torque [Nm]: 8.59

Still Current [A]: 7.5

Rated Current [A]: 7.5

Max Current [A]: 22.5

Rated Voltage [V]: 110

Rated Power [W]: 900

Rated Speed [rpm]: 1000

Max Speed [rpm]: 2000

Shaft End: Keyed

Flange Size [mm]: 130

Shaft Diameter [mm]: 22

Shaft Length [mm]: 47

Key Width [mm]: 8

Ambient Temperature [°C]: -20…40

Insulation Class: A

Protection Class [IP]: 40

Weight [kg]: 8.07
