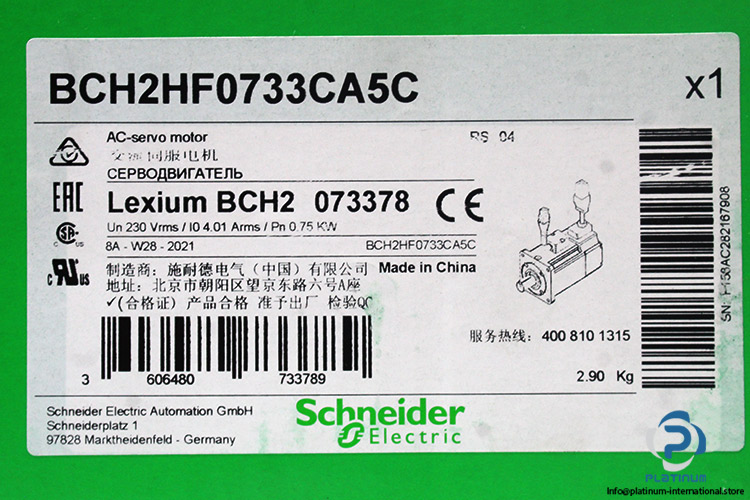

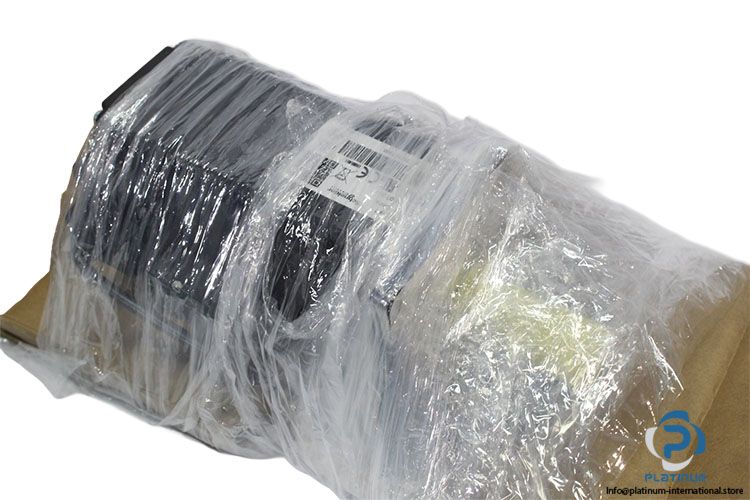

Schneider BCH2HF0733CA5C AC Servo Motor
Neu
Auf Anfrage verfügbar
The SCHNEIDER BCH2HF0733CA5C AC Servo Motor is a precision motion control motor designed for Schneider Lexium 28 servo systems. Featuring 750W output power, 5000 rpm speed, 20-bit absolute encoder feedback, and robust keyed shaft construction for demanding industrial automation applications.
Power:
750 W
Voltage:
230 V
Maximum Speed:
5000 rpm
Encoder:
20 Bits Absolute Encoder
Flange Size:
80 mm
Cooling:
Natural Convection
Standard:
IEC 60034-1
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

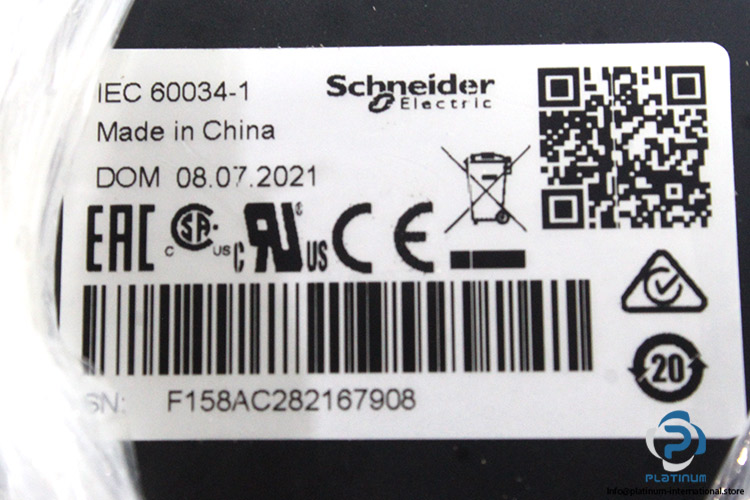

| SN | F158AC282167908 |
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 230 V |
| Network number of phases | Three phase/Single phase |
| Continuous stall current | 4.01 A |
| Continuous power | 750 W |
| Maximum permanent current | 4.29 A |
| Shaft end | Keyed |
| Shaft diameter | 19 mm |
| Shaft length | 35 mm |
| Key width | 6 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Mounting support | Asian standard flange |
| Motor flange size | 80 mm |

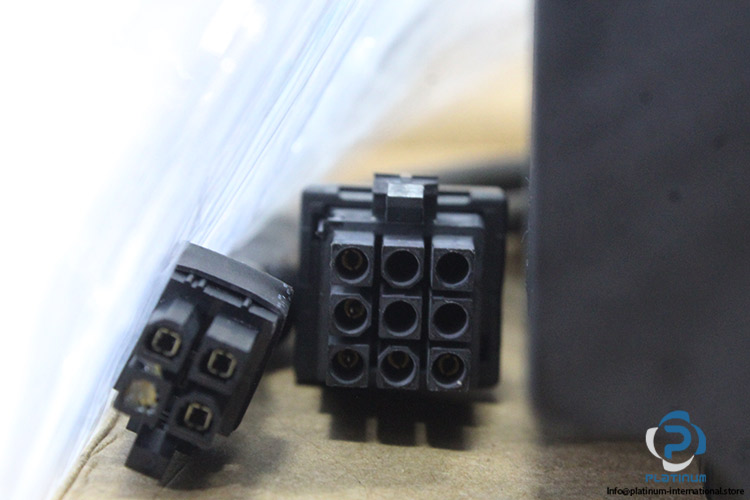

| Electrical connection | Free lead |
| Torque constant | 0.6 N.m/A at 20 °C |
| Back emf constant | 36 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 1.54 kg.cm² |
| Stator resistance | 1.5 Ohm at 20 °C |
| Stator inductance | 6.1 mH at 20 °C |
| Stator electrical time constant | 4.07 ms at 20 °C |
| Maximum radial force Fr | 332 N at 3000 rpm |
| Maximum axial force Fa | 115 N |
| Brake pull-in power | 10.2 W |
| Type of cooling | Natural convection |
| Standard | IEC 60034-1 |
| Condition | New |
| SKU | 1099035 |
| Weight | 3,3 |
Mehr von SCHNEIDER
Verwandte Produkte
GebrauchtAuf Anfrage verfügbar
NO BRAND
CW250 Stepper Motor Driver
SKU: 1078168
Auf Anfrage verfügbar
44,44$
GebrauchtAuf Anfrage verfügbar
SIEMENS

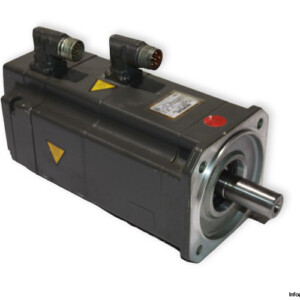

Siemens 1FK7042-2AF71-1QA0 Servomotor
