Schneider BMH1002P07A2A Servomotor
899,99$
Servo Motor

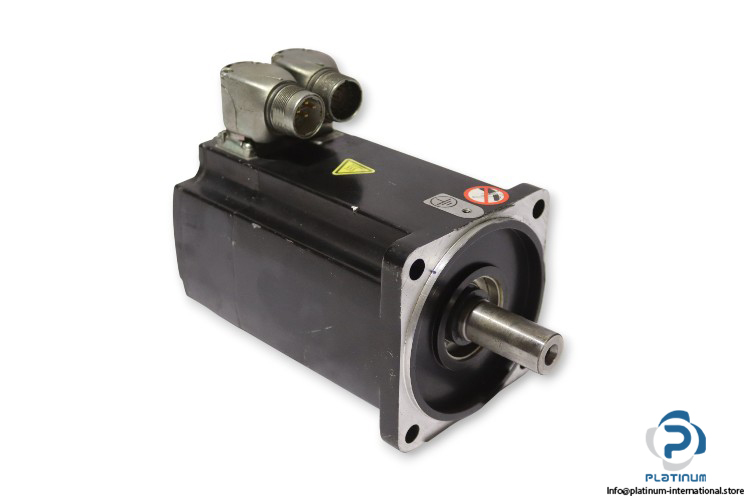

High precision Schneider Electric BMH1002P07A2A servo motor, 2.063 kW rated power, 4000 rpm speed, 6 Nm torque, and 480 V 3-phase operation. Compact, durable, and compatible with Lexium 32 systems for reliable motion control in industrial automation.Schneider Electric BMH1002P07A2A Servo Motor Without Brake
The Schneider Electric BMH1002P07A2A is a high-performance servo motor designed for precision motion control and reliable operation in demanding industrial environments. Part of the BMH Series and fully compatible with the Lexium 32 range, this motor ensures smooth, accurate, and energy-efficient performance for automation, robotics, and machinery applications.

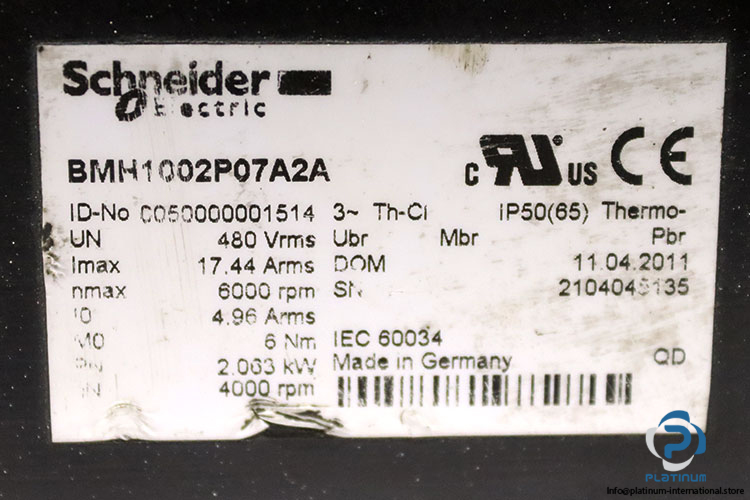

Manufacturer: Schneider Electric
Type: Servo Motor Without Brake
Model: BMH1002P07A2A
ID No.: 0050000001514
Serial No.: 2104045135
Series: BMH
Range Compatibility: Lexium 32
Engineered with Schneider Electric™s precision technology, this servo motor offers high torque density, superior accuracy, and low maintenance operation. Its compact and durable build makes it an excellent choice for machine builders, packaging systems, and automated production lines seeking stability, efficiency, and extended service life.
| Rated Voltage (UN) | 480 Vrms-3phase |
| Rated Power (PN) | 2.063 kW |
| Rated Speed (nN) | 4000 rpm |
| Maximum Speed (nmax) | 6000 rpm |
| Rated Current (I0) | 4.96 Arms |
| Maximum Current (Imax) | 17.44 Arms |
| Rated Torque (M0) | 6 Nm |
| Cooling Method | Natural convection |

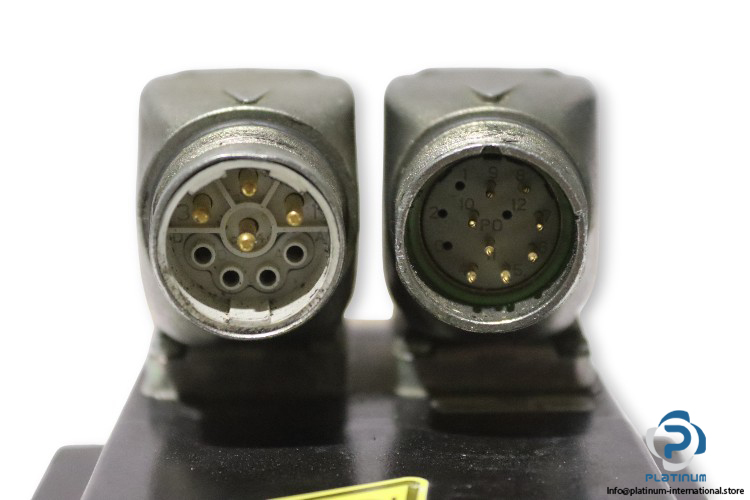

| Electrical Connection | Rotatable right-angled connectors |
| Mounting Support | International standard flange |
| Number of Mounting Holes | 4 |
| Shaft End | Smooth shaft |
| Shaft Diameter | 19 mm |
| Shaft Length | 40 mm |
| Standard Compliance | IEC 60034 |
| Protection Class | IP50 (shaft) / IP65 (housing) |
