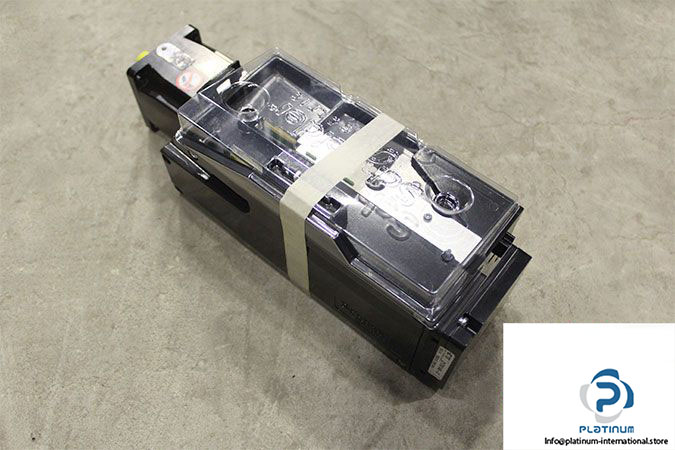

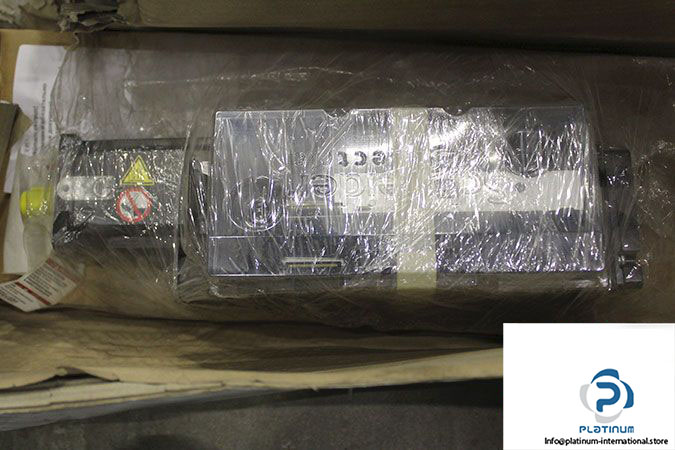

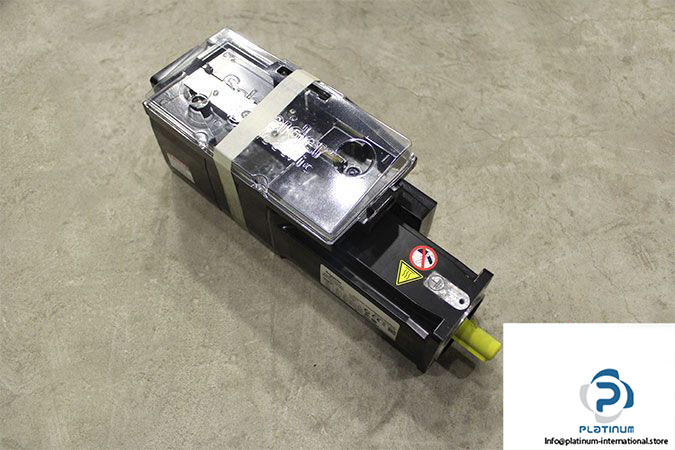

Schneider BMI0703P16A Servo Motor
Neu
Auf Lager2 EinheitenVersandbereit
1 800,00$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

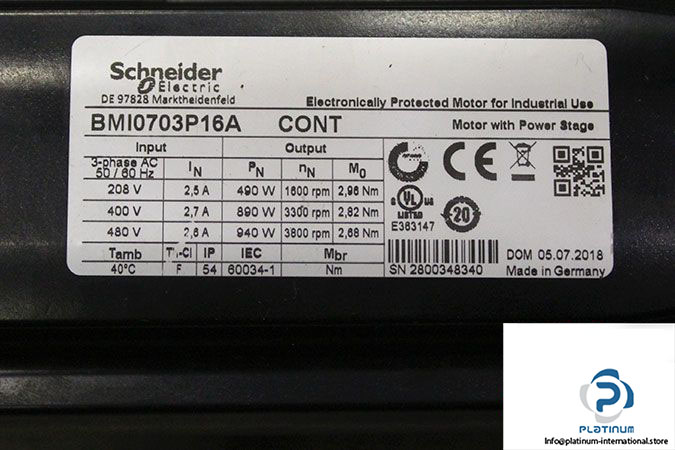

Manufacturer: Schneider Electric, Elau
Type: Servo Motors
Model: BMI0703P16A
Rated Voltage [V]: 208/400/480
Rated Current [A]: 2.5/2.7/2.6
Stall Torque [Nm]: 2.96/2.82/2.68
Rated Power [W]: 490/890/940
Rated Speed [rpm]: 1800/3300/3800
Ambient Temperature [°C]: 40
Frequency [Hz]: 50/60
Shaft End: Keyed
Flange Size [mm]: 70
Shaft Diameter [mm]: 14
Shaft Length [mm]: 30
Key Width [mm]: 5
Protection Class [IP]: 54
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 4.9
