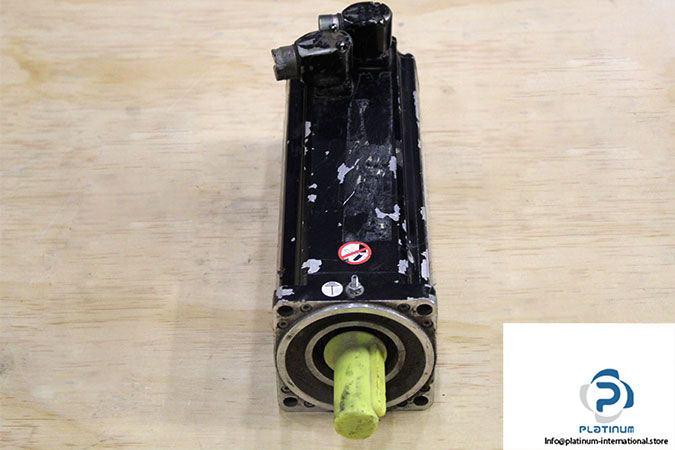

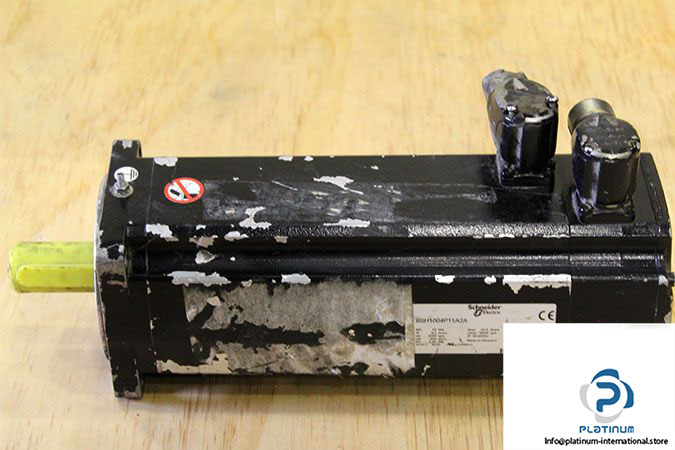

Schneider Electric BSH1004P11A2A AC Servo Motor

Manufacturer: SCHNEIDER ELECTRIC

Type: AC SERVO MOTOR

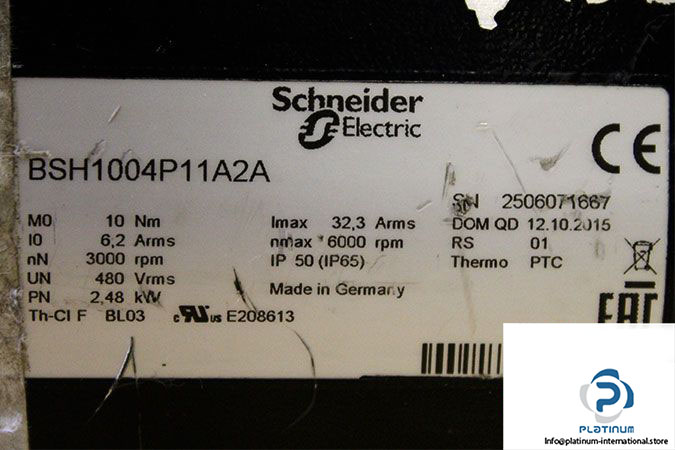

Model: BSH1004P11A2A

Max. Voltage : 480 Vrms

Max. Current: 32.3 Arms

Stall Current: 6.2 Arms

Nominal Speed: 3000 Revolution Per Minute (rpm)

Max. Speed: 6000 Revolution Per Minute (rpm)

Nominal Torque: 10 Nm

Nominal Power: 2.48 kW

Flange Size: 100 mm

Motor Length: 276.5 mm

Shaft Diameter: 24 mm

Shaft Length: 50 mm

Thermal Class: F

Protection Class: IP50 (IP65)

Weight: 9.14 kg
