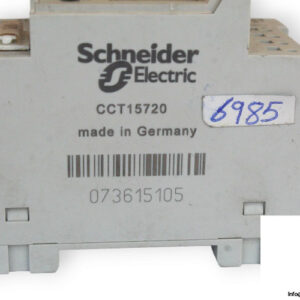

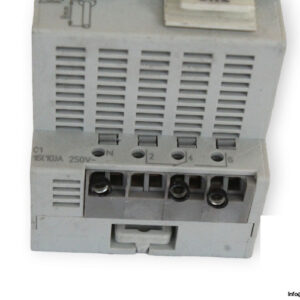

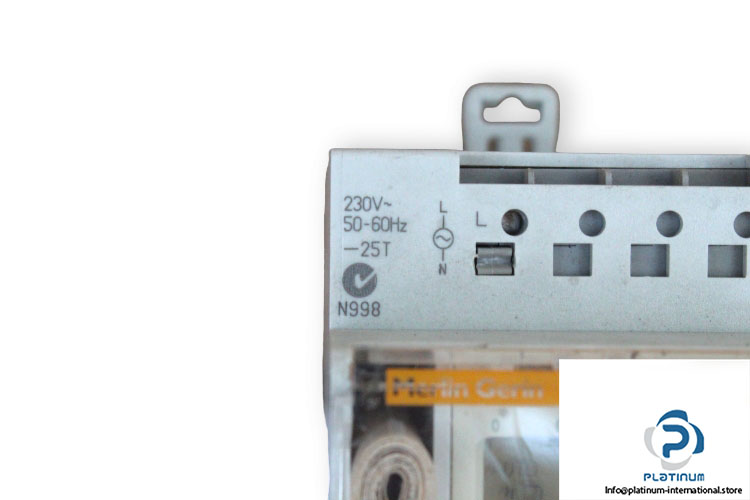

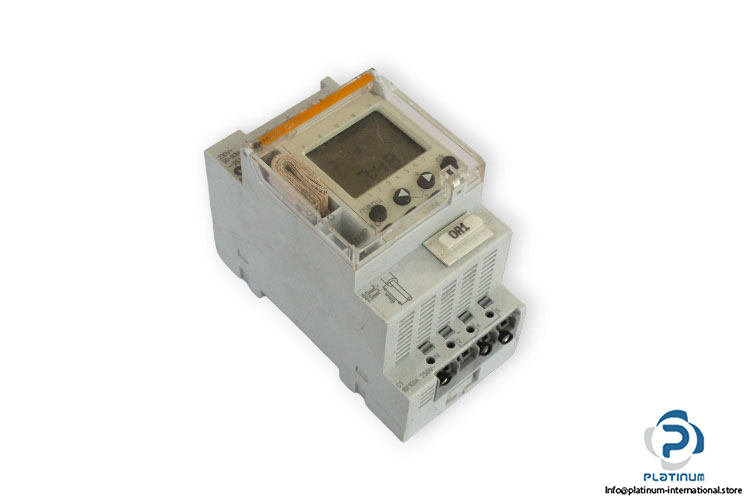

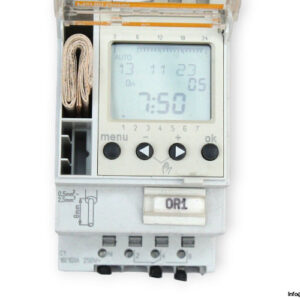

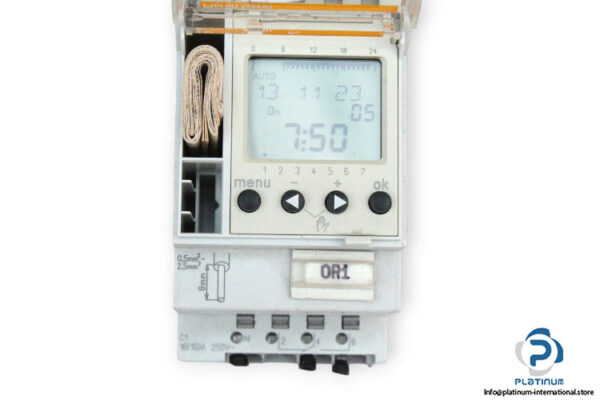

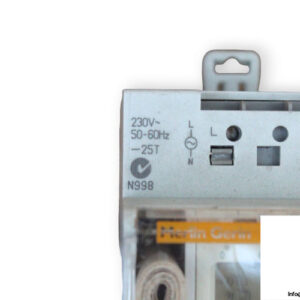

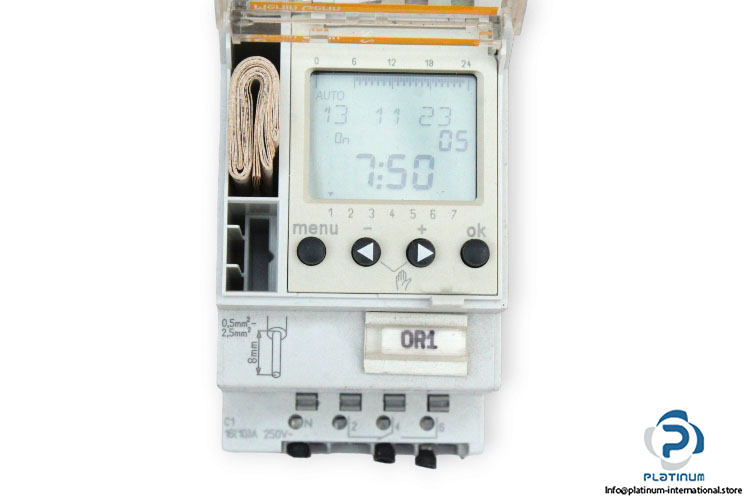

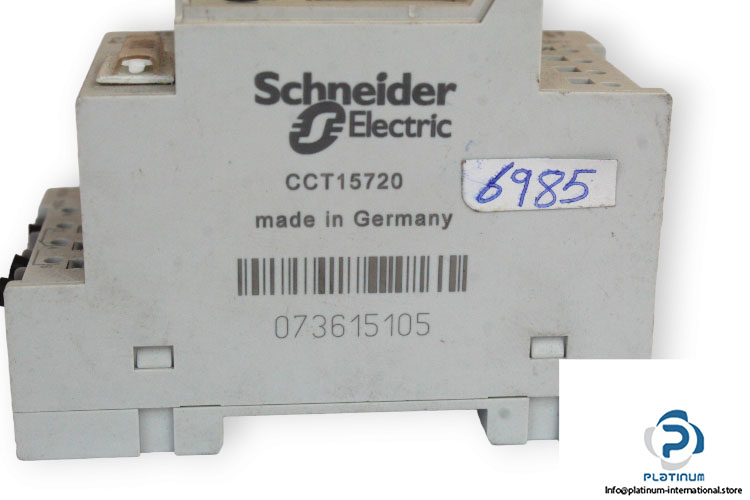

Schneider CCT15720 Digital Time Switch
Manufacture: Schneider
Type: Digital Time Switch
Model: CCT15720
Product Name: Acti9 IHP
Device Application: Building
Battery Type: Lithium
Number of Channels: 1
User Language: English, French, Portuguese, Italian, German, Spanish
Rated Operational Voltage Ue: 230 V AC
Power Consumption: 4 VA
Maximum Switching Current: 10 A – 250 V AC pf = 0.6,
16 A – 250 V AC pf = 1
Cycle Duration: 24 hours + 7 days
Maximum Number Of Switching: 56
Minimum Interval Duration: 1 min
Display Type Backlit: LCD

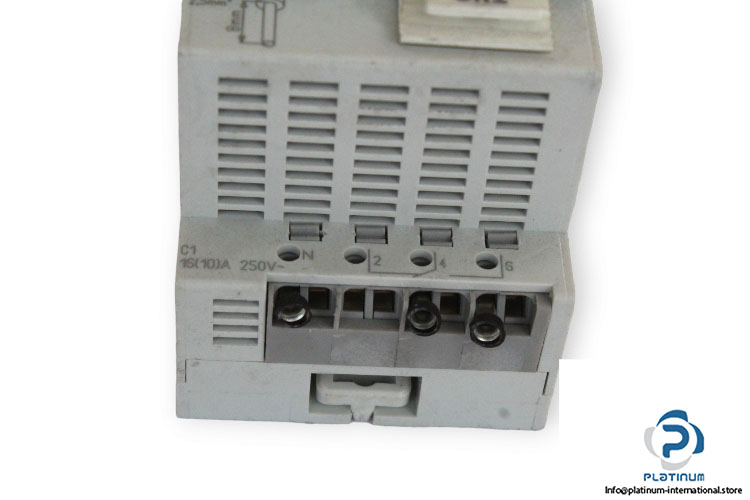

Connections-Terminals: screwless terminals
Mounting Support: DIN rail
Operation temperature: -10 … 50°C
Degree of protection: IP20 B
Dimensions: 45 x 85 x 66 mm
