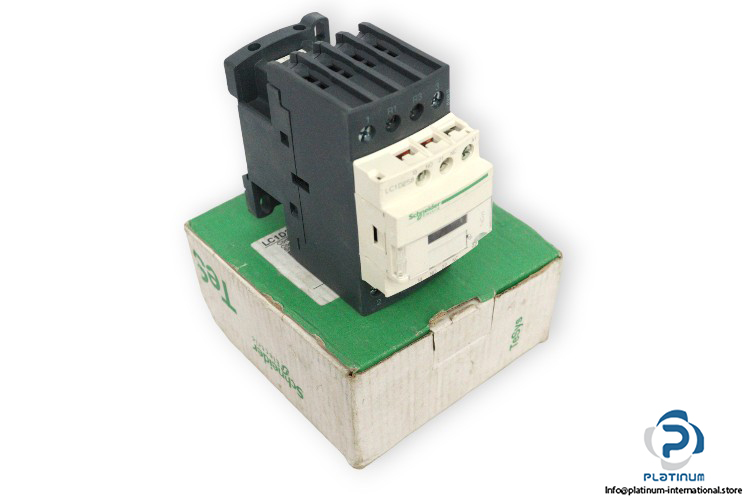

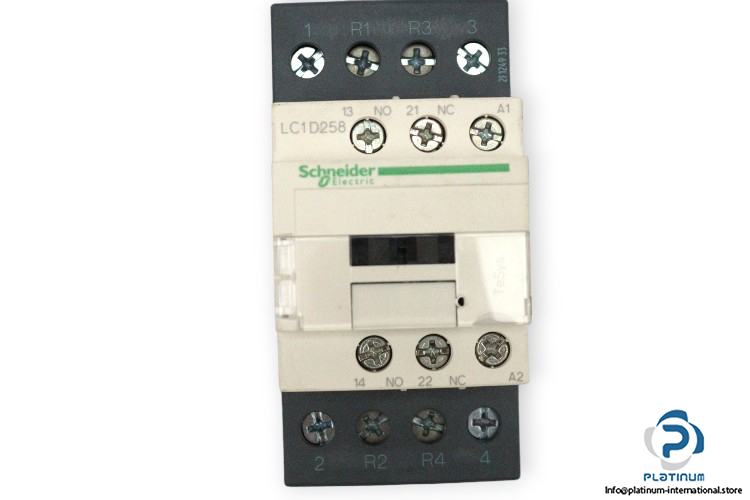

Schneider Electric LC1D258D7 Contactor

Manufacture: Schneider Electric
Type: Contactor
Model: LC1D258D7
Device Short Name: LC1D

Application: Resistive load

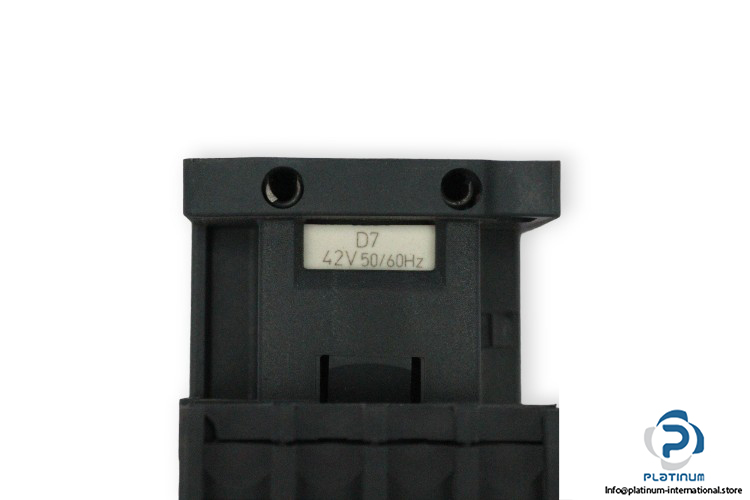

Control circuit voltage Uc: 42 V AC
Frequency: 50/60 Hz
No. of poles: 4 poles
Rated Operational Current: 40 A @440 V AC (AC-1)
Rated Operational Voltage Ue: Power circuit <= 690 V AC 25...400 Hz
Conventional Free Air Thermal Current Ith: 10 A (at 60 °C) for signaling circuit, 40 A (at 60 °C) for power circuit
Power Dissipation Per Pole: 3.2 W (AC-1)
Rated power: 11 kW@400 V-3phase
Pollution Degree: 3
Rated Impulse Withstand Voltage Uimp: 6 kV
Inrush Power: 70 VA
Auxiliary Contact Composition: 1 NO + 1 NC
Minimum Switching Voltage: 17 V
Minimum Switching Current: 5 mA
Protection degree: IP20
Permissible Ambient Air Temperature Around the Device: -40 … 60 °C, 60 … 70 °C with derating
Dimensions: 91 x 45 x 99 mm
