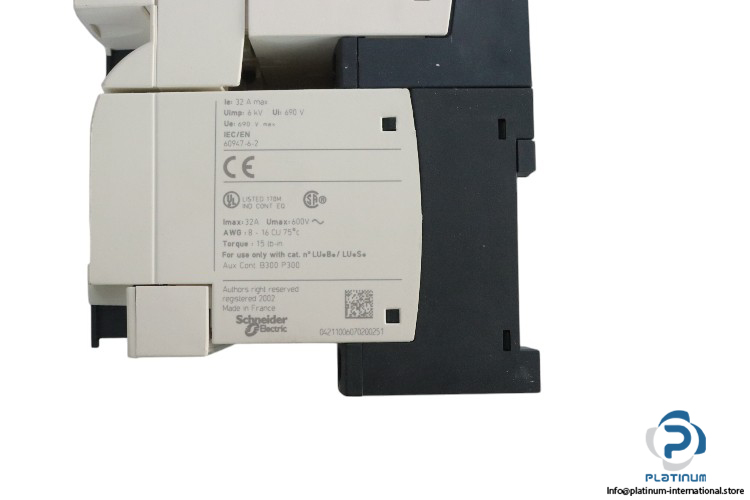

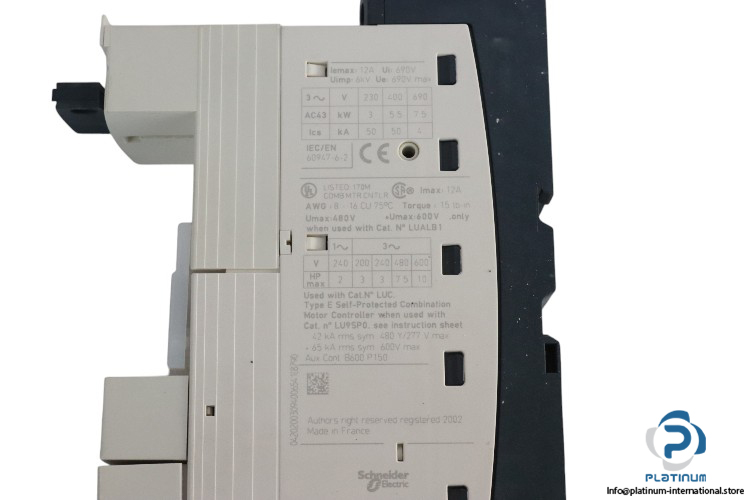

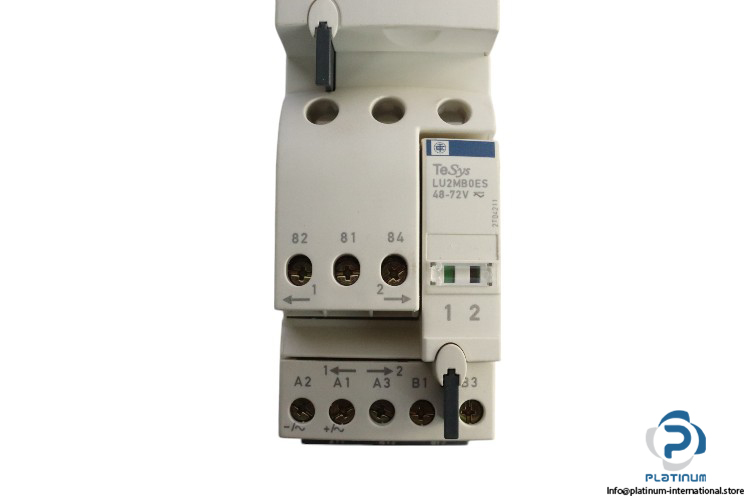

Schneider Electric LU2MB0ES Reverser Block
Schneider Electric / Telemecanique LU2MB0ES Umkehrblock Industrieller Umkehrblock, entwickelt für die Motorsteuerung. Verfügt über direkte Montage, Steckerbefestigung und schnelles Schalten (150 ms) für zuverlässige Leistung.
Schneider Electric / Telemecanique LU2MB0ES Reverser Block

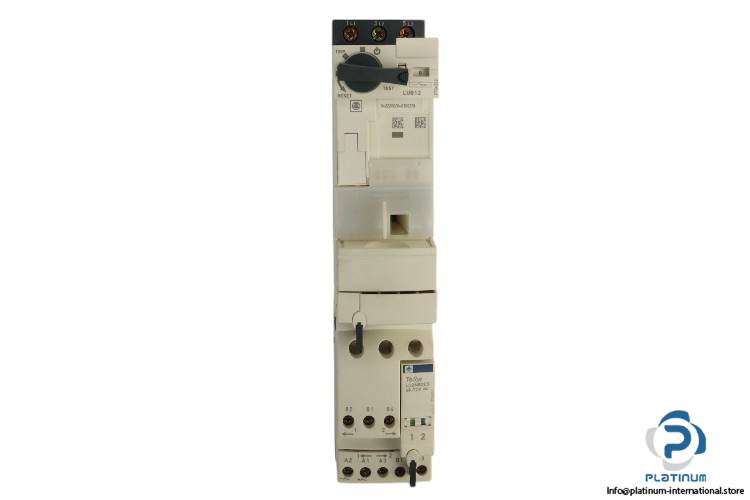

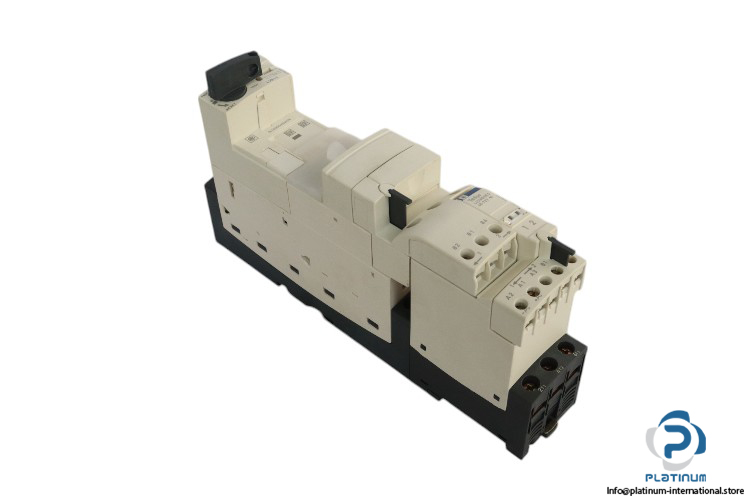

The Schneider Electric / Telemecanique LU2MB0ES is a high-performance reverser block designed for efficient and reliable motor control applications. It offers a plug-in fixing mode for easy installation and supports direct mounting with power bases like the LU2B12ES.
Key Details:
Manufacturer: Schneider Electric / Telemecanique
Type: Reverser Block
Model: LU2MB0ES
Device Short Name: LU2MB
Compatible Power Base:
Designed for industrial automation and motor control, the LU2MB0ES reverser block ensures quick response times and reliable motor direction changes, making it an essential component for demanding applications.
| Device Mounting | Direct Mounting |
| Device Application | Motor Control |
| Rated Operational Current Ie | 32 A |
| Rated Operational Voltage | 690 V AC |
| Network Frequency | 40 to 60 Hz |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Fixing Mode | Plug-in |
| Operating Time | 150 ms with Change of Direction |
| Current Consumption | 2300 mA |
| Control Circuit Voltage Uc | 48 to 72 V AC/DC |
| Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -25 to 60 °C |
| Dimensions | 45 x 80 x 105 mm |

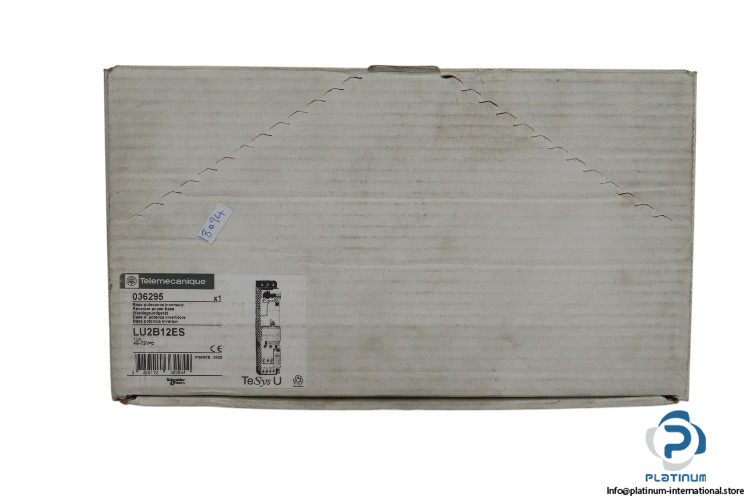

| Attachment | SCHNEIDER ELECTRIC LU2B12ES POWER BASE |
| Part No. | 036295 |

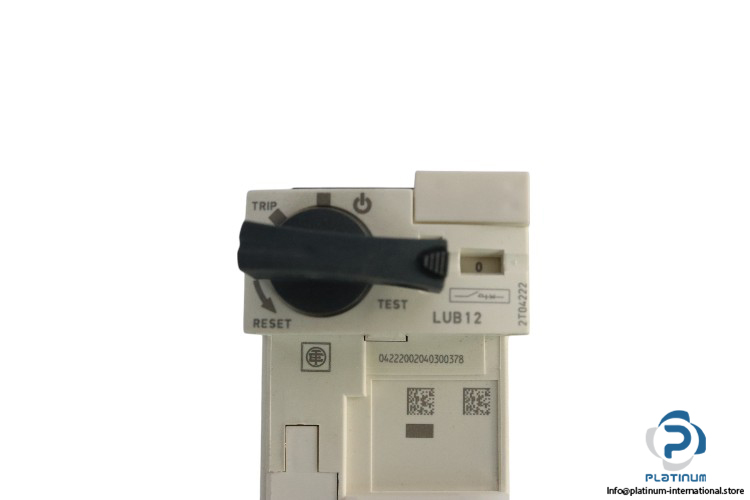

| Device Short Name | LUB12 |
