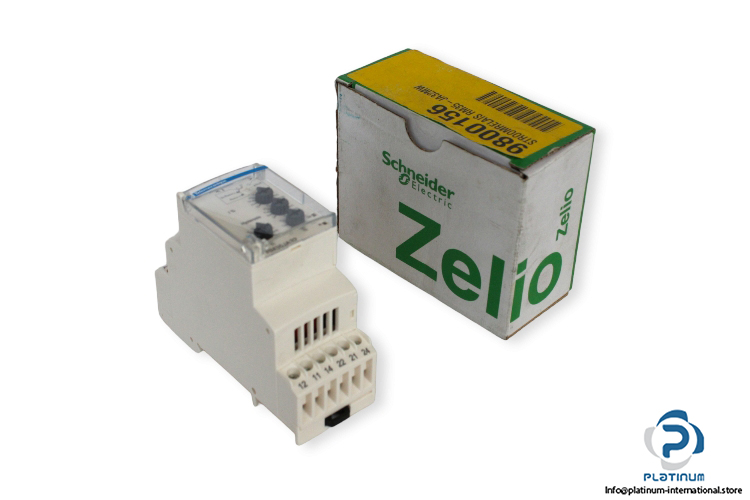

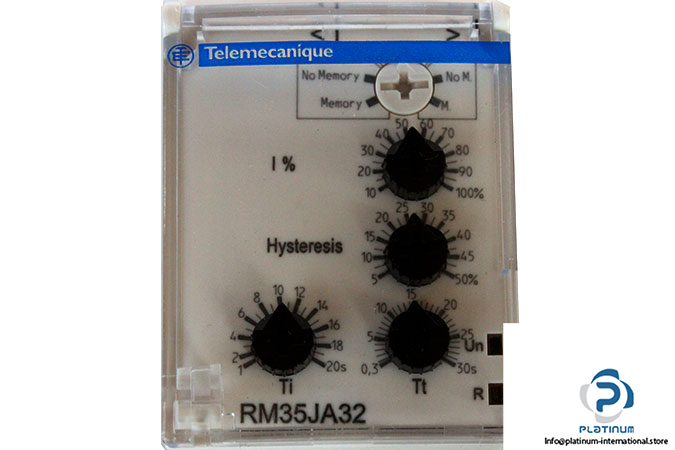

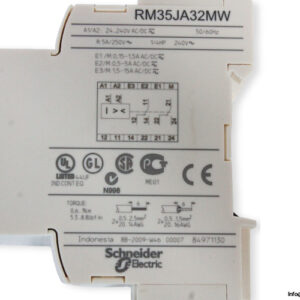

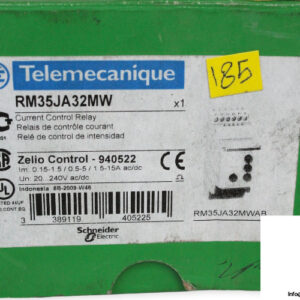

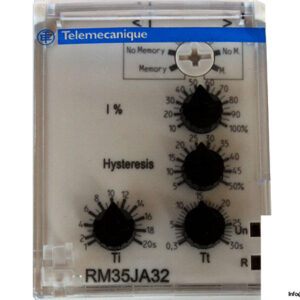

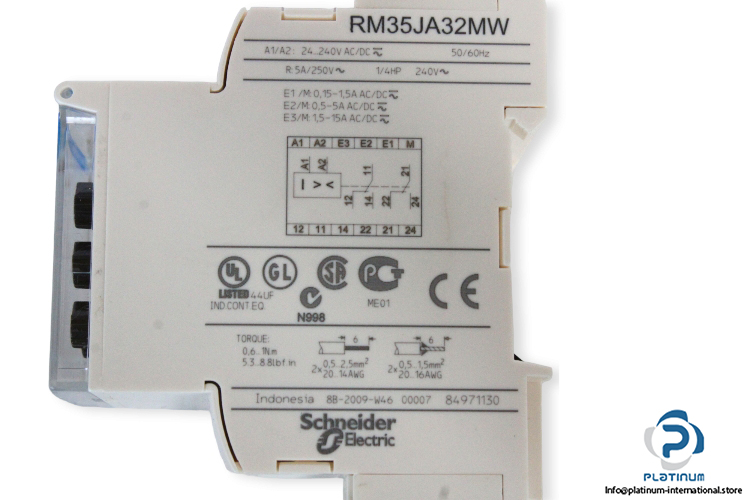

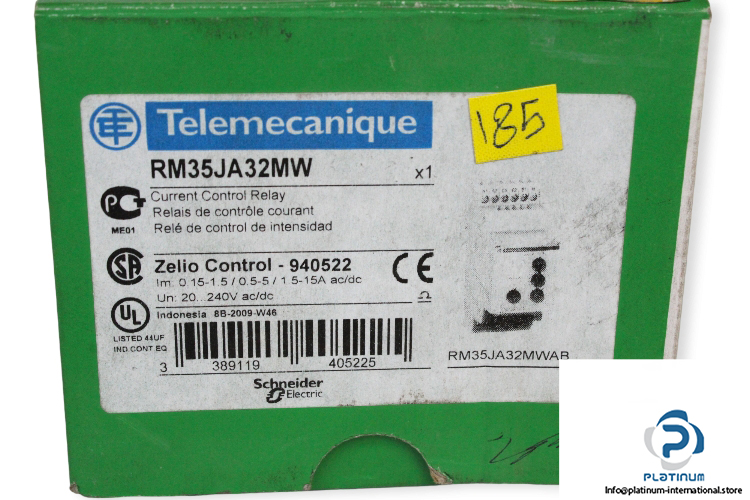

Schneider Electric RM35JA32MW Current Control Relay

Manufacturer: Schneider Electric, Telemecanique

Type: Current Control Relay

Model: RM35JA32MW

Part No.: 940522

Rated supply voltage: 24 … 240 V AC/DC (20.4 … 264 V AC/DC)

Maximum power consumption: 0.6 W

Output contacts: 2 C/O

Nominal output current: 5 A

Contact voltage: 250 V AC

Measurement range: E1-M terminals: 0.15 … 1.5 A AC/DC, E2-M terminals: 0.5 … 5 A AC/DC, E3-M terminals: 1.5 … 15 A AC/DC

Terminals: Screw terminals

Tightening torque: 0.6 … 1 N.m

Housing material: Self-extinguishing plastic

Operation temperature: -20 … 50 °C

Degree of protection: IP20

Pollution degree: 3

Dimensions: 90 x 35 x 72.5 mm
