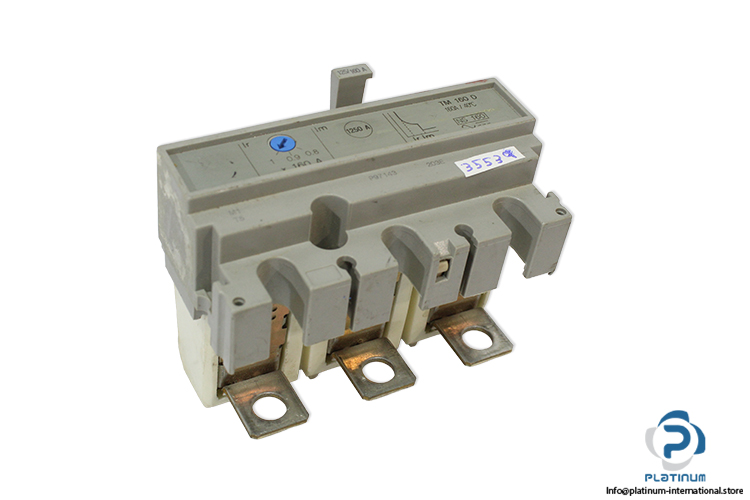

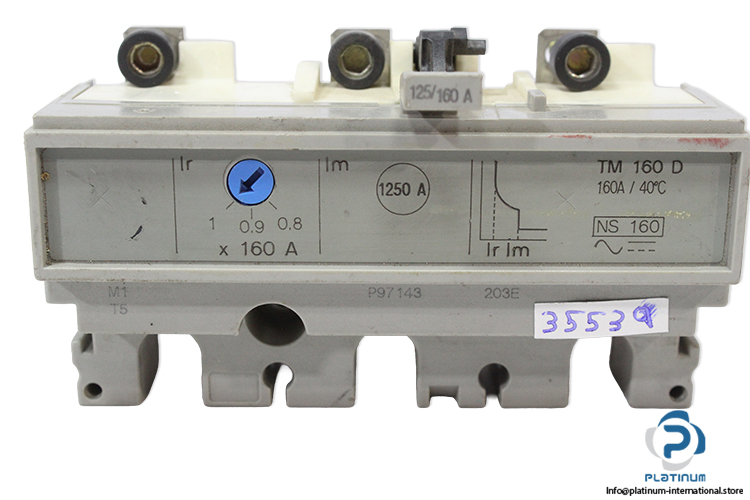

Schneider Electric TM 160 D Thermal-Magnetic Trip Unit

Auf Lager1 EinheitVersandbereit

Thermisch-magnetische Auslöseeinheit Schneider Electric TM160D Auslöseeinheit, konzipiert für ComPact NSX160 Leistungsschalter, bietet thermischen Überlast- und magnetischen Kurzschlussschutz für elektrische Verteilungssysteme.

SKU
1090606
Kategorie
Others
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

Schneider Electric TM160D Thermal-Magnetic Trip Unit

The Schneider Electric TM160D Thermal-Magnetic Trip Unit is designed for reliable protection in electrical distribution systems. Engineered for use with Schneider Electric ComPact NSX and NS circuit breakers, this trip unit provides dependable overload and short-circuit protection to ensure system safety and operational stability in industrial and commercial power distribution applications.

Manufacturer: Schneider Electric

Type: Thermal-Magnetic Trip Unit

Model: TM160D

Code: P97143 203E

Range Compatibility: ComPact NSX160

Device ApplicationDistribution
UsedFor Electrical Distribution Protection In Schneider Electric ComPact NSX And NS Circuit Breakers
Trip Unit Rated Current160 (125/160) A At 40 °C
Rated Operational Voltage690 V AC 50/60 Hz
Short-Time Protection Pick-Up Adjustment Range1250 A
Number Of Poles3P
Protected Poles Description3t
Trip Unit Protection FunctionsLI
Protection Type LFor Overload Protection (Thermal)
Protection Type IFor Short-Circuit Protection (Magnetic)
Ambient Air Temperature For Operation-25 To 70 °C
RecommendationEnsure reliable protection and maintain optimal performance of your electrical distribution systems by selecting genuine Schneider Electric trip units designed for seamless compatibility with ComPact NSX circuit breakers.
