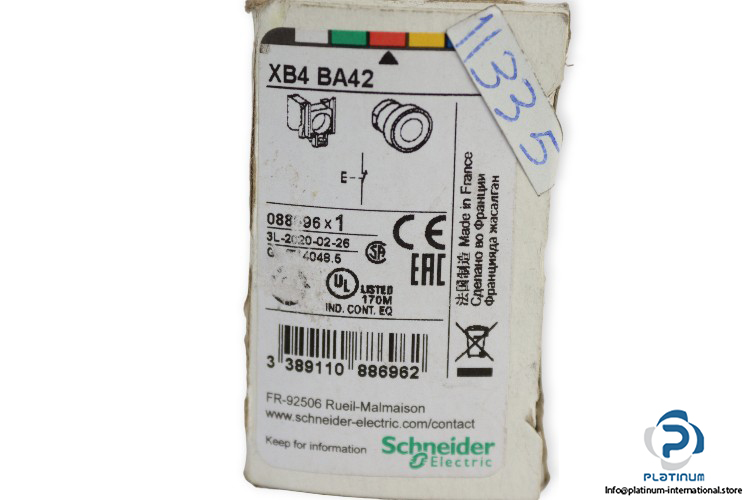

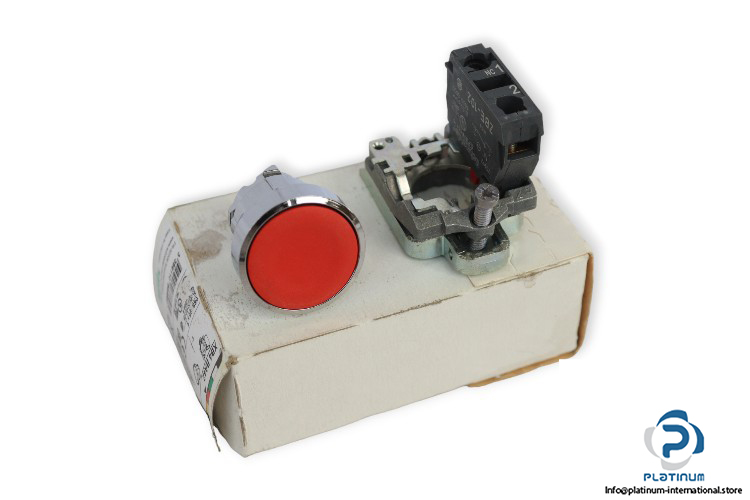

Schneider Electric XB4 BA42 Push Button
Hersteller: Schneider Electric Typ: Drucktaster Modell: XB4BA42 Artikel-Nr.: ZBE-102 Bestell-Nr.: 088696 Produktreihe: Harmony XB4 Kurzname des Geräts: XB4
Manufacture: Schneider Electric
Type: Push Button
Model: XB4BA42

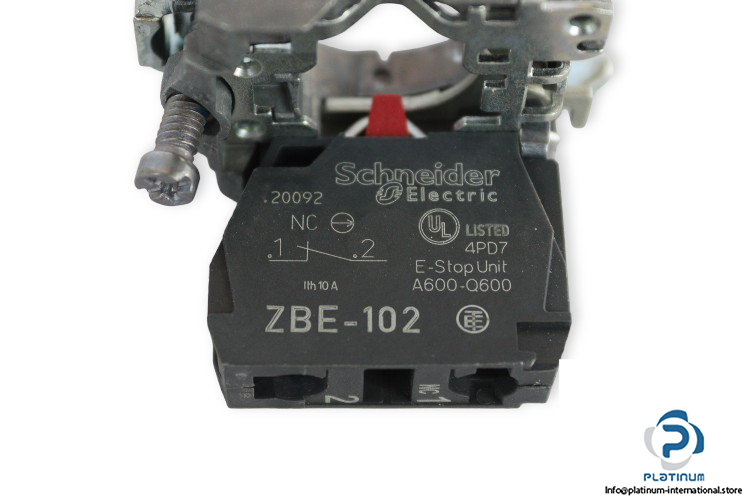

Part No.: ZBE-102
Order No.: 088696
Range of Product: Harmony XB4
Device Short Name: XB4
Conventional Free Air Thermal Current Ith: 10 A
Rated Insulation Voltage Ui: 600 V
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Operational Current Ie:
3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Shape of signaling unit Head: Round
Bezel Material: Chromium plated metal
Fixing Collar Material: Zamak
Mounting Diameter: 22 mm
Type of Operator: spring return
Operator Profile: Red flush, unmarked
Contacts Type and Composition: 1 NC
Contacts Material: Silver alloy
Contact Operation: Slow-break
Connections: Terminals Screw clamp terminals
Degree of Protection: IP66 IEC 60529, IP67, IP69, IP69K
Ambient Air Temperature for Operation: -40 … 70°C
Dimensions: 47 x 30 x 52 mm
