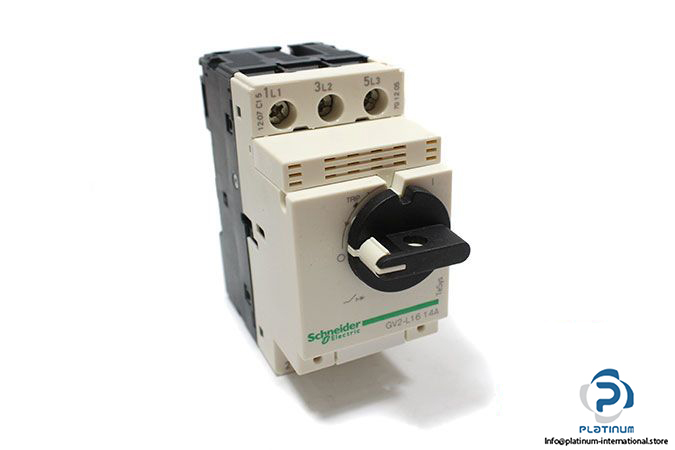

Schneider GV2L16 Circuit Breaker

Manufacturer: SCHNEIDER ELECTRIC

Type: Circuit Breaker

Model: GV2L16

Device Application: Motor

Device Short Name: GV2L

Rated Operational Voltage: 690 V AC

Power Dissipation Per Pole: 1.8 W

No. Of Poles: 3P

Trip Unit Technology: Magnetic

Magnetic Tripping Current: 170 A

Network Type: AC

Operating Position: Any position

Control Type: Rotary knob

Tightening torque: 1.7 N.m

Dimensions ( height x width x depth ): 89 x 45 x 79 mm

Frequency: 50/60 Hz

Operating Temperature: -20 … 60 °C

Weight: 0.32 kg
