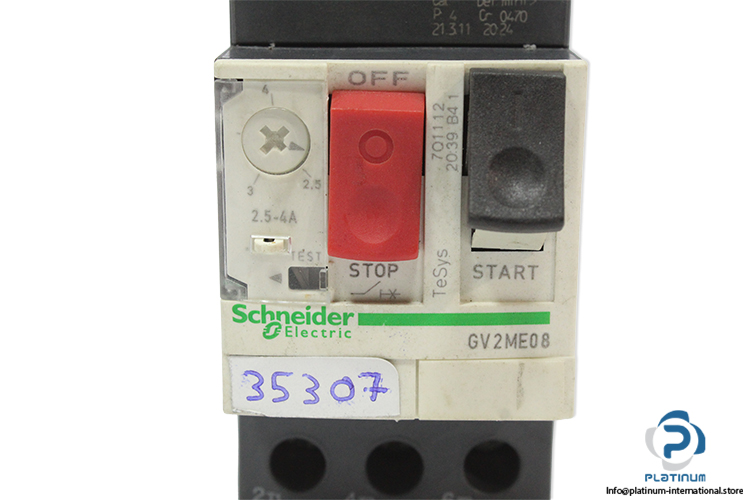

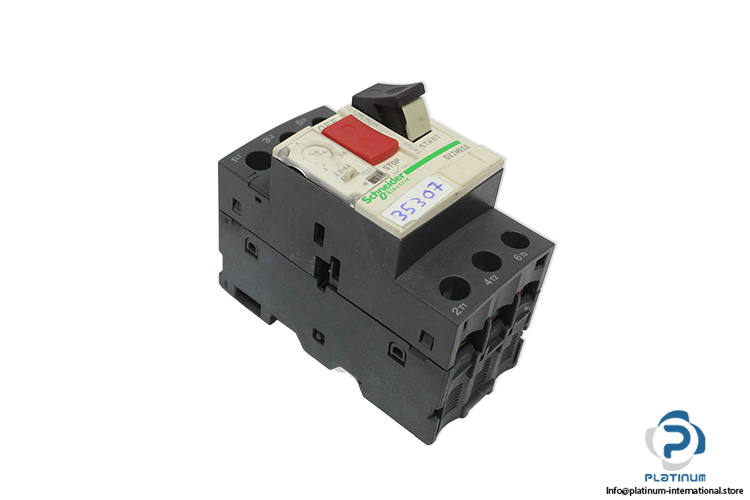

Schneider GV2ME08 Circuit Breaker
Neu
Auf Lager1 EinheitVersandbereit
Thermal Magnetic Circuit Breaker
Motor protection circuit breaker from the TeSys Deca range, providing adjustable thermal overload and magnetic short-circuit protection for industrial motor applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SCHNEIDER TELEMECANIQUE GV2ME08 Thermal Magnetic Circuit Breaker
The SCHNEIDER TELEMECANIQUE GV2ME08 thermal magnetic circuit breaker from the TeSys Deca range is designed for reliable motor protection in industrial applications. It combines thermal overload protection and magnetic short-circuit protection to ensure safe and efficient motor operation.
Manufacturer: SCHNEIDER TELEMECANIQUE
Type: Thermal Magnetic Circuit Breaker
Model: GV2ME08
Range: TeSys Deca
Short Name: GV2ME
Product Name: TeSys GV2
Device Application: Motor
| Thermal Protection Adjustment Range | 2.5 / 4 A |
| Magnetic Tripping Current | 51 A |
| Rated Operational Voltage (Ue) | 690 V AC, 50/60 Hz, IEC 60947-2 |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Frequency | 50 / 60 Hz |
| Motor Power | 1.1 kW at 400 / 415 V AC, 50/60 Hz |
| Motor Power | 1.5 kW at 400 / 415 V AC, 50/60 Hz |
| Breaking Capacity | 100 kA Icu at 400 / 415 V AC, 50/60 Hz, IEC 60947-2 |
| Conventional Free Air Thermal Current (Ith) | 4 A, IEC 60947-4-1 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Power Dissipation Per Pole | 2.5 W |
| Standards | IEC / EN 60947-2, IEC / EN 60947-4-1 |
| Poles Description | 3P |
| Line Rated Current | 4 A |
| Degree Of Protection | IP20 |
| Ambient Temperature | -20 / 60 °C |
| Dimensions | 89 x 45 x 78.5 mm |
