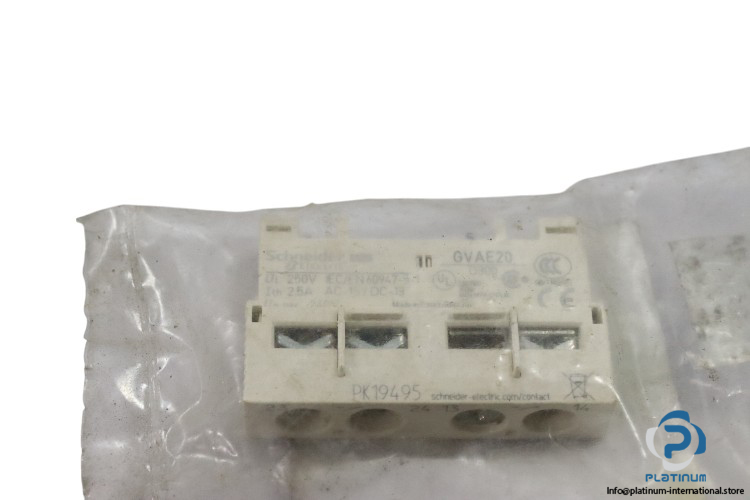

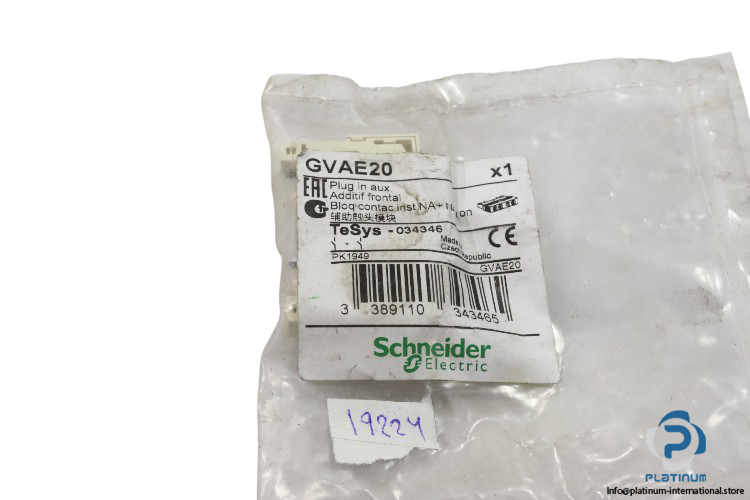

Schneider GVAE20 Auxiliary Contact Block
Hilfsschaltkontaktblock Der Schneider GVAE20 ist ein kompakter Hilfsschaltkontaktblock mit 2 normalerweise offenen (NO) Kontakten, ausgelegt für 24–240 V AC und 24–60 V DC. Mit einem thermischen Strom von 2,5 A und langlebiger Kontaktlebensdauer eignet er sich ideal für Steuerungssysteme und Motorschutzanwendungen.
Schneider GVAE20 Auxiliary Contact Block
The Schneider GVAE20 Auxiliary Contact Block is a compact and reliable solution designed to enhance the control capability of motor protection devices. It offers high durability with precise switching performance and is ideal for a wide range of industrial automation systems.
Manufacturer: Schneider Electrical
Type: Auxiliary Contact Block
Model: GVAE20
Part No.: 034346
Rated Operational Power:
120 VA at 110“120 V AC-15 (100,000 cycles)
120 VA at 230“240 V AC-15 (100,000 cycles)
48 VA at 24 V AC-15 (100,000 cycles)
60 VA at 48 V AC-15 (100,000 cycles)
| Rated Operational Voltage [Ue] | 24 to 240 V AC / 24 to 60 V DC |
| Thermal Current [Ith] | 2.5 A conventional free air |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Contacts | 2 Normally Open (NO) |
| Dimensions (W x H x D) | 45 x 11 x 29 mm |
