Schneider Electric ILA1B572PC2A0 IFA62/2DP0ISDS/5DM-I54/0-001RPP41 Integrated Drive ILA With Servo Motor

Name: SCHNEIDER ELECTRIC ILA1B572PC2A0 IFA62/2DP0ISDS/5DM-I54/0-001RPP41 INTEGRATED DRIVE ILA WITH SERVO MOTOR
SKU: 968750
Availability: LimitedAvailability

schneider-ILA1B572PC2A0-integrated-drive-ila-with-servo-motor

schneider-ila1b572pc2a0-integrated-drive-ila-with-servo-motor-1

schneider-ila1b572pc2a0-integrated-drive-ila-with-servo-motor-2

schneider-ila1b572pc2a0-integrated-drive-ila-with-servo-motor-3

Gebraucht

Auf Anfrage verfügbar

SKU

968750

Kategorie

Servo Motors

Zustand

Gebraucht

Drive Ila Integrated Lexium Motion motor Phase Servo Single With

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

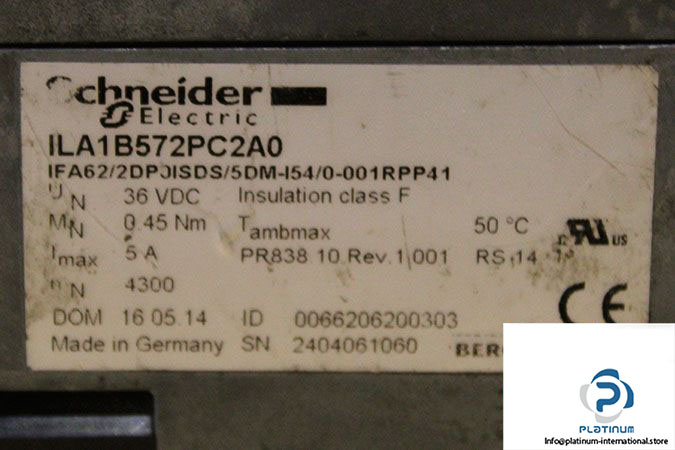

Manufacturer: ELAU – SCHNEIDER ELECTRIC / BERGER LAHR

Type: INTEGRATED DRIVE ILA WITH SERVO MOTOR

Model: ILA1B572PC2A0

ID No: 0066206200303

MRN: IFA62/2DP0ISDS/5DM-I54/0-001RPP41

Rated Voltage : 36 V DC

Current (^Imax): 5 A

Normal Speed: 4300 Revolution Per Minute (rpm)

Normal Torque: 0.45 Nm

Holding brake: Without

Temperature: 50 °C

Flange Size: 57 mm

Motor Length: 207.8 mm

Shaft Diameter: 9 mm

Shaft Length: 20 mm

Insulation Class: F

Protection Class: IP 41

Weight: 1.88 kg
