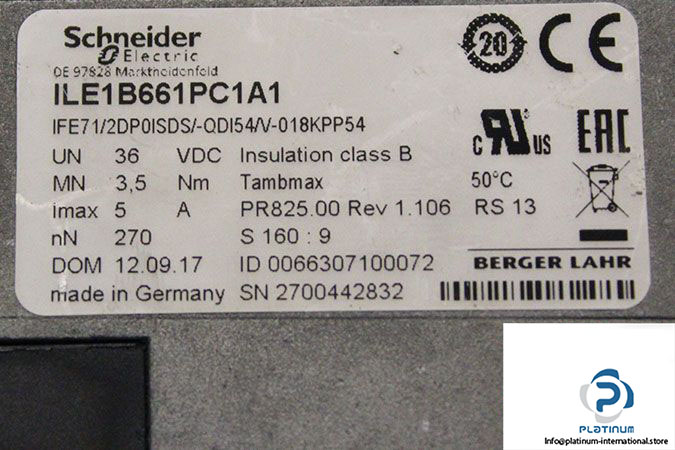

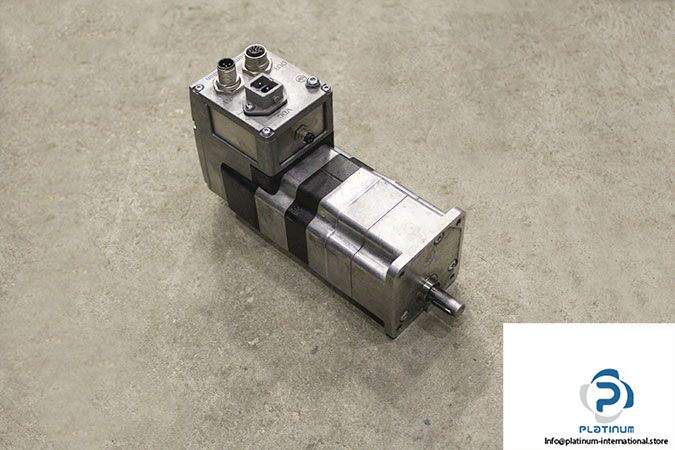

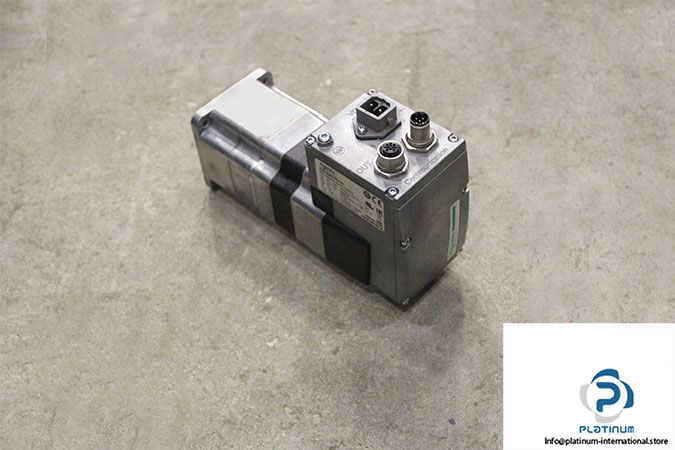

Schneider ILE1B661PC1A1 Brushless DC Motor

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motors

Model: ILE1B661PC1A1

Part No.: IFE71/2DP0ISDS/-QDI54/V-018KPP54

Reduction Ratio: 18

Peak Stall Torque [Nm]: 5.18

Continuous Stall Torque [Nm]: 4.3

Nominal Torque [Nm]: 3.5

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 270

Number of Poles: 6

Flange Size [mm]: 66

Shaft Diameter [mm]: 10

Shaft Length [mm]: 25

Key Width [mm]: 16

Length [mm]: 174

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 1.89
