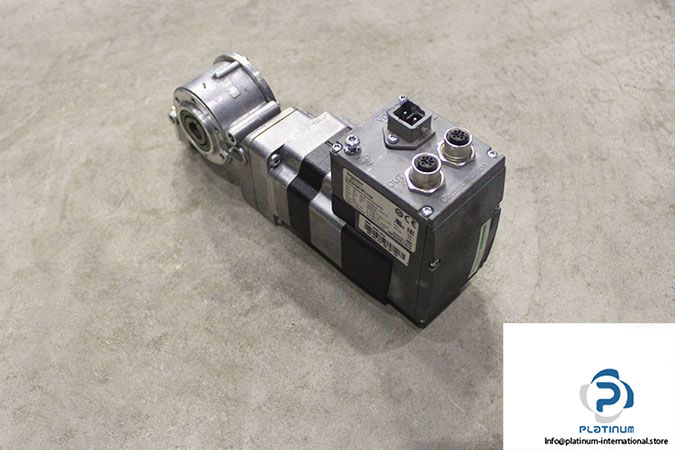

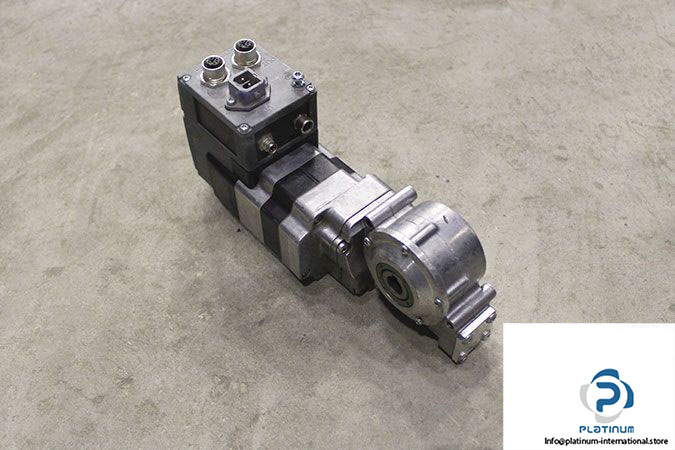

Schneider ILE2K661PC1A6 Brushless DC Motor
Gebraucht
Auf Lager5 EinheitenVersandbereit
722,22$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

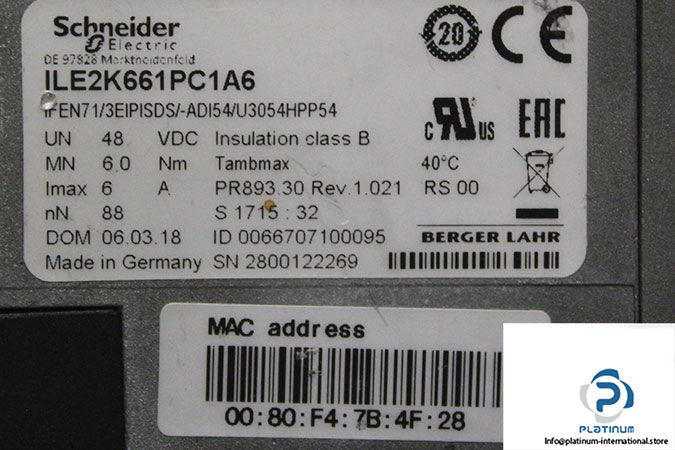

Manufacturer: Schneider Electric, Elau
Type: Brushless DC Motors
Model: ILE2K661PC1A6
Part No.: IFEN71/3EIPISDS/-ADI54/U3054HPP54
Reduction Ratio: 1:54
Supply Voltage [V]: 48
Max Current [A]: 6
Max Speed [rpm]: 93
Nominal Speed [rpm]: 88
Nominal Torque [Nm]: 6
Number of Poles: 6
Length [mm]: 174
Shaft End: Hole
Length [mm]: 229
Flange Size [mm]: 66
Ambient Air Temperature [°C]: 40
Thermal Class: B
Weight [kg]: 2.2
