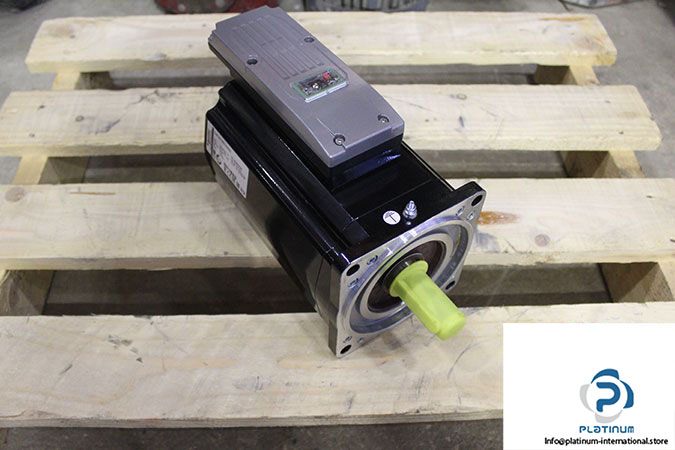

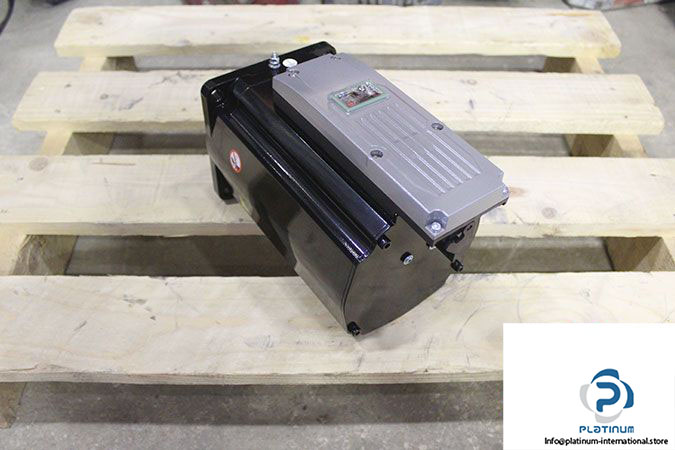

Schneider ILM1401M31A0000 Integrated Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Integrated Servo Motor

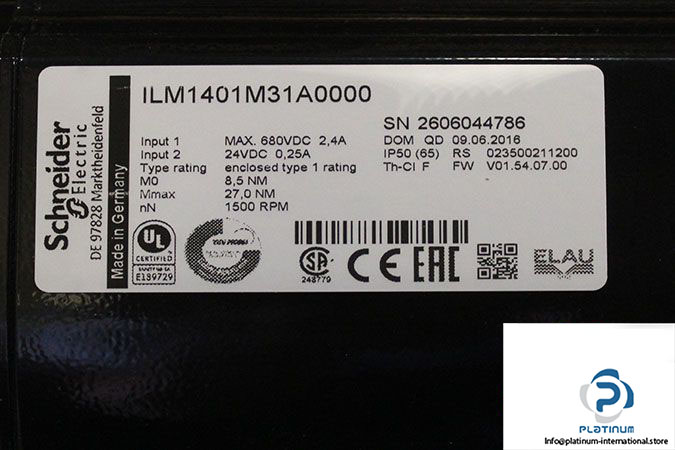

Model: ILM1401M31A0000

Continuous Stall Torque [Nm]: 8.5

Peak Stall Torque [Nm]: 27

Nominal Torque [Nm]: 8.3

Rated Current [A]: 3.15

Max Current [A]: 14.6

Max Supply Voltage [VDC]: 680 at 2.4 A

Supply Voltage [VDC]: 24 at 0.25 A

Nominal Output Power [W]: 1300

Nominal Speed [rpm]: 1500

Flange Size [mm]: 140

Shaft Diameter [mm]: 24

Shaft Length [mm]: 50

Key Width [mm]: 40

Protection Class [IP]: 50

Thermal Class: F

Weight [kg]: 11.86
