Schneider KSB63SM48 TAP-OFF Unit
Neu
Auf Lager1 EinheitVersandbereit
Tap-off Unit
The Schneider KSB63SM48 Tap-off Unit provides reliable power distribution with 63A current rating, 690V insulation, and IP55 protection. Ideal for medium power applications with plug-in mounting and fixed polarity.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

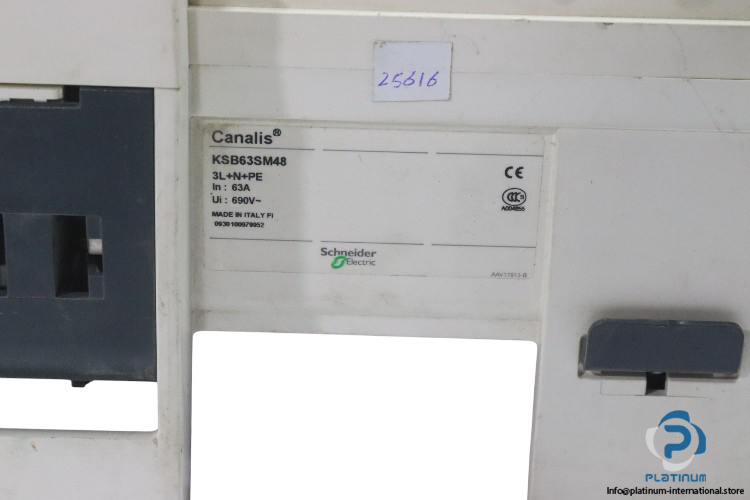

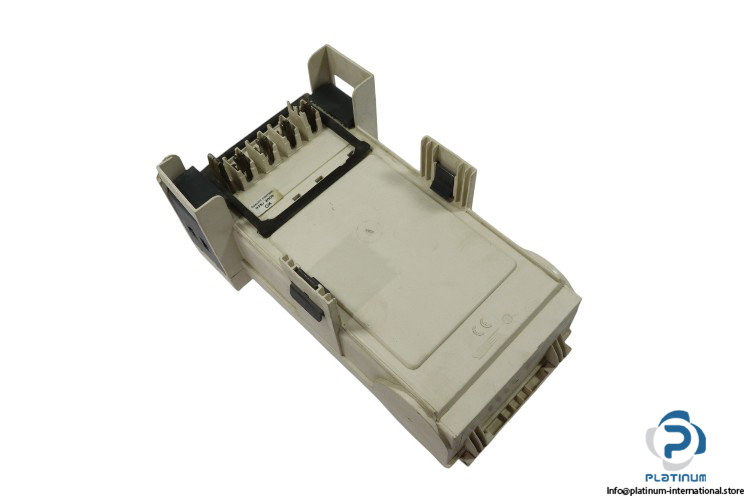

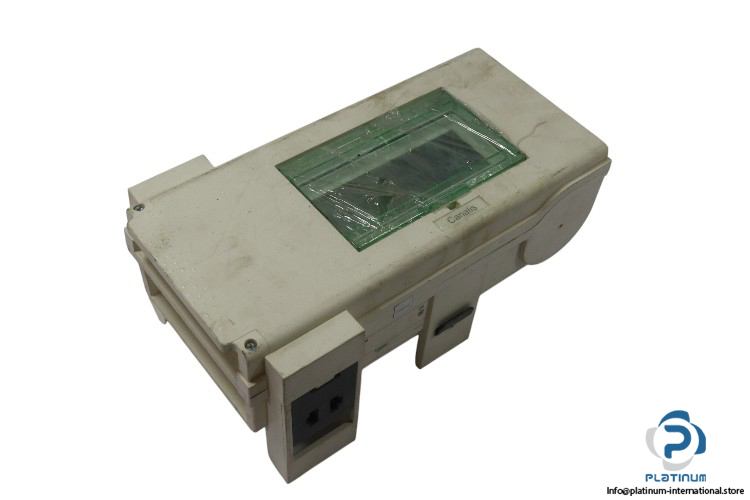

Schneider KSB63SM48 Tap-off Unit
The Schneider KSB63SM48 Tap-off Unit is designed for medium power distribution in industrial electrical systems. It provides reliable performance with a wide voltage range and robust insulation, ensuring safe operation in demanding environments. With an IP55 rating and durable plastic body, this tap-off unit is ideal for protecting electrical circuits.
Manufacturer: SCHNEIDER
Type: Tap-off Unit
Model: KSB63SM48
Technical Data:
- Range: CANALIS
- Application: Medium power distribution
- Rated Operational Current (Ie): 63 A
- Rated Operational Voltage (Ue): 230 / 690 V depending on protective device
- Rated Impulse Withstand Voltage (Uimp): 6.8 kV
- Rated Insulation Voltage (Ui): 690 V AC
- Network Frequency: 50/60 Hz
- Mounting Mode: Plug-in with fixed polarity
- Tap-off Unit Polarity: 3L+N+PE
- Body Material: Plastic
- Degree of Protection: IP55 conforming to IEC 60529
- Dimensions: 444 x 133 x 220 mm
