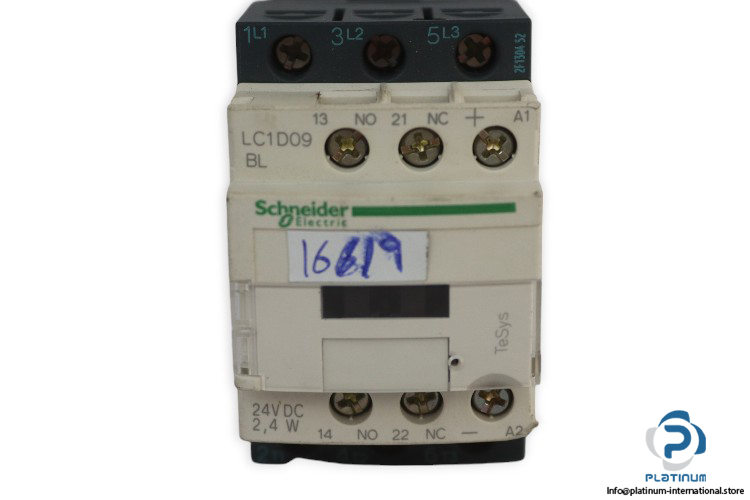

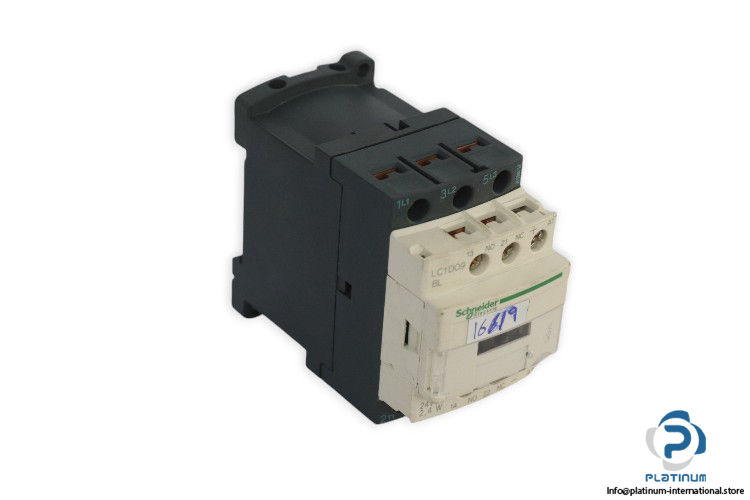

Schneider LC1D09BL Contactor

Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1D09BL

control circuit voltage: 24 V DC
Rated Operational Voltage: 690 V AC, 300 V DC
Rated Operational Current AC-3: 9 A
Rated Thermal Current: 25 A
Frequency: 50 … 60 Hz
Power AC-3:
220 / 230 V AC: 2.2 kW
380 / 400 / 415 / 440 V AC: 4 kW
500 / 660 / 690 V AC: 5.5 kW
No. of Poles: 3-Pole
Pole contact: 3 Normally Open (NO)
Auxiliary contact composition: 1 NO + 1 NC
Protection Class: IP20
Ambient Temperature: -40 … 60 °C
Dimensions: 77 x 45 x 95 mm
