Schneider LC1D09ED Contactor
Schütz Der Telemecanique/Schneider LC1D09ED Schütz verfügt über einen 48V DC Steuerstromkreis, 3P-Konfiguration und IP20-Schutz für industrielle Motorsteuerungsanwendungen.

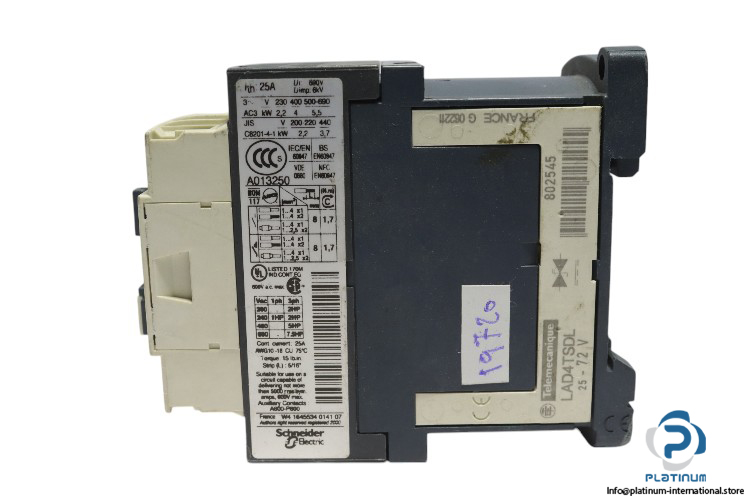

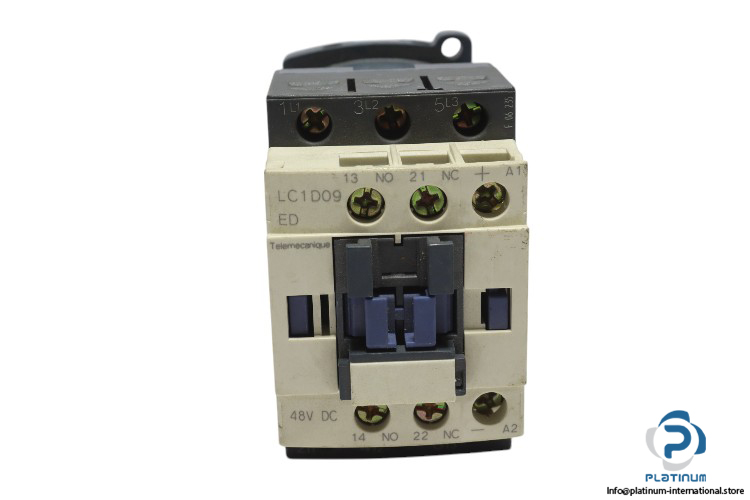

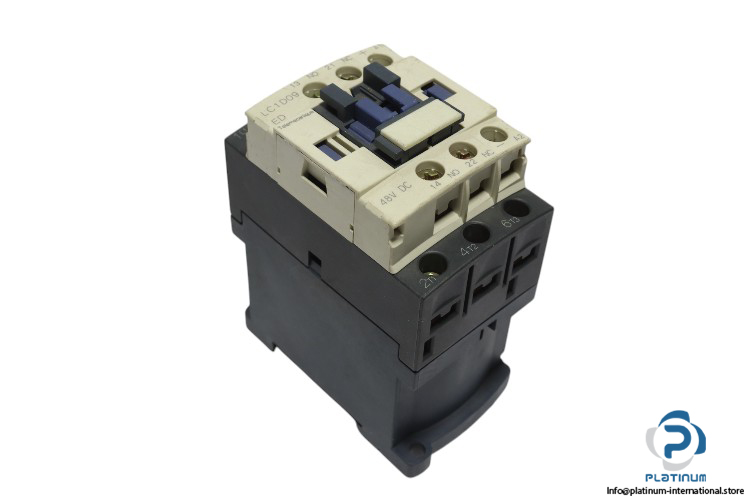

Telemecanique/Schneider LC1D09ED Contactor
The Telemecanique/Schneider LC1D09ED Contactor from the TeSys range is designed for reliable motor control and switching applications. With a 48V DC control circuit, 3P configuration, and IP20 protection, this contactor ensures efficient operation in industrial environments.
Manufacturer: Telemecanique/Schneider
Type: Contactor
Model: LC1D09ED
Range: TeSys
Motor Power:
2.2 kW at 220...230 V AC 50/60 Hz (AC-3)
2.2 kW at 400 V AC 50/60 Hz (AC-4)
5.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
Rated Operational Voltage:
Conventional Free Air Thermal Current:
25 A (at 60°C) for Power Circuit
10 A (at 60°C) for Signaling Circuit
| Poles Description | 3P |
| Control Circuit Voltage | 48 V DC |
| Frequency | 50/60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Power Circuit | ‰¤ 690 V AC (25...400 Hz) |
| Power Circuit | ‰¤ 300 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| IP Degree of Protection | IP20 |
