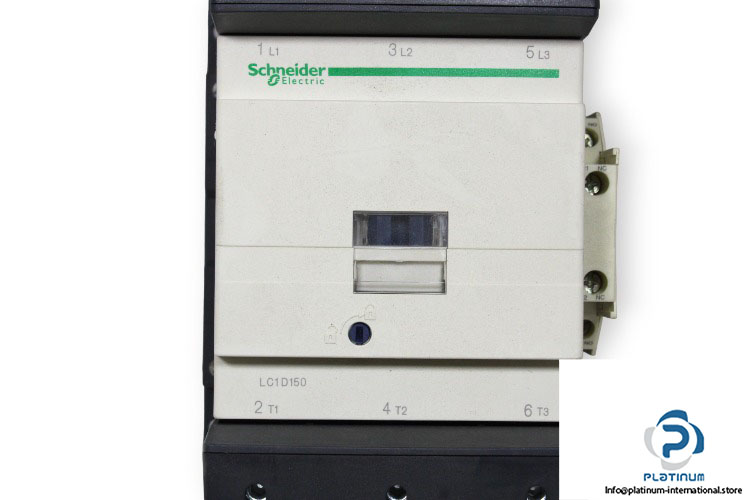

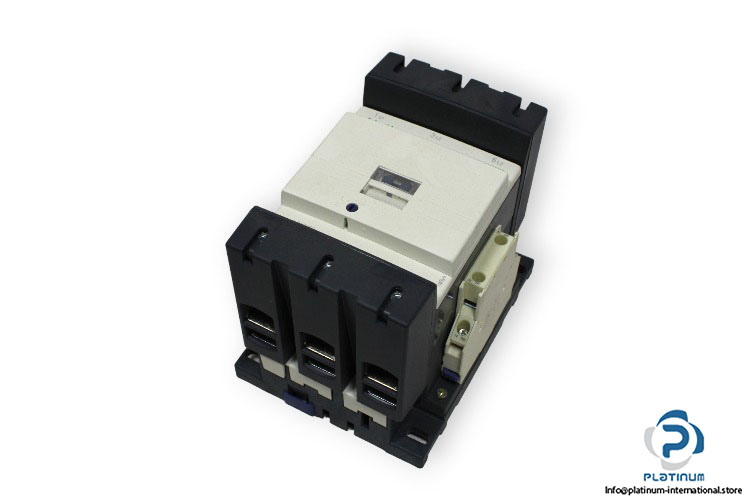

Schneider LC1D150B7 Contactor

Manufacturer: Schneider

Type: Contactor

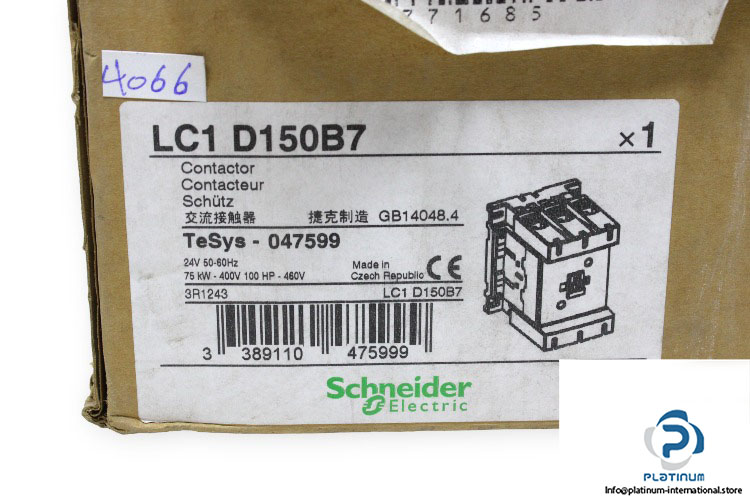

Model: LC1D150B7

Control circuit voltage Uc: 24 V AC 50/60 Hz

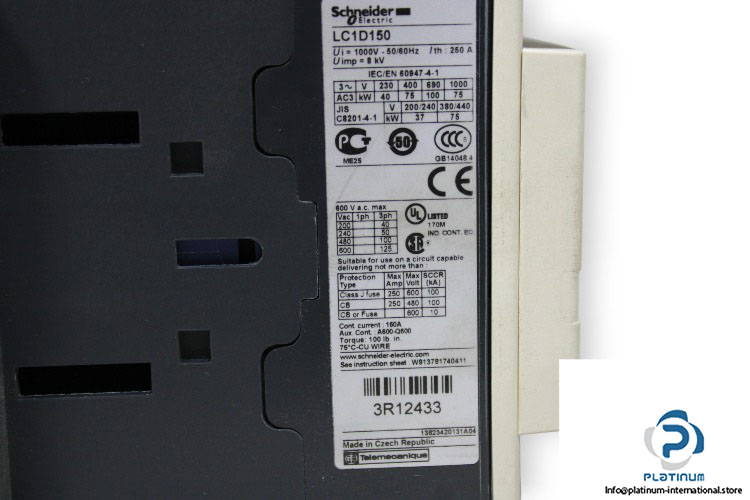

Rated insulation voltage Ui: 1000 V

Rated impulse withstand voltage Uimp: 8 KV

conventional free air thermal current Ith: 250 A

Motor power kW: 75 KW @ 400 V

Motor power hp: 100 hp @ 460 V

Pole contact composition: 3 Normally open contacts

Poles description: 3 poles

Auxiliary contact composition: 1 Normally open + 1 Normally closed

Degree of Protection: IP20

Dimensions: 158 x 120 x 136 mm
