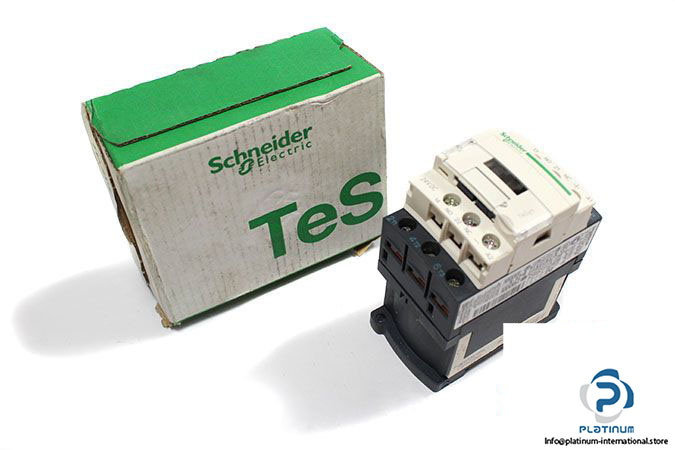

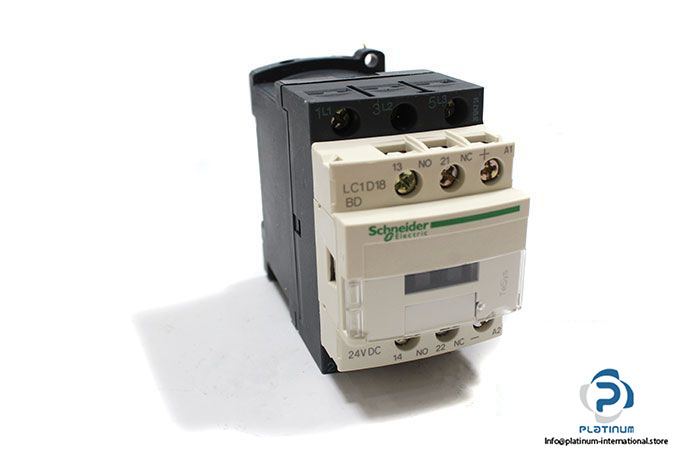

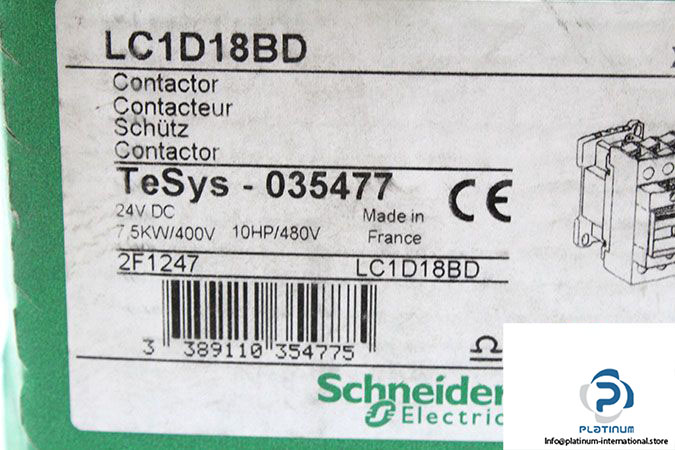

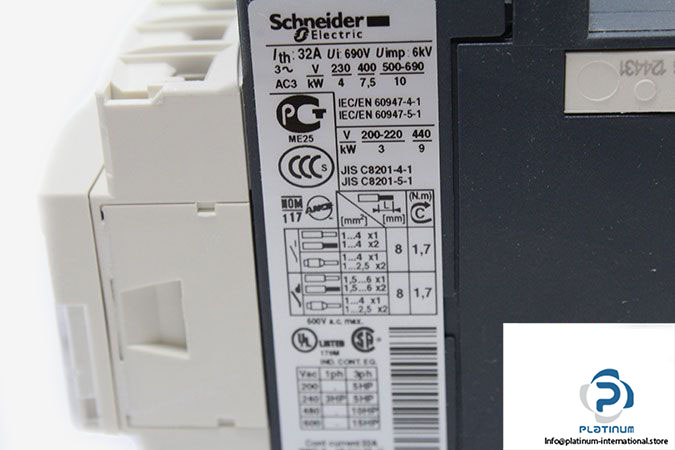

Schneider LC1D18BD Contactor

Manufacturer: SCHNEIDER ELECTRIC

Type: D Contactor

Model: LC1D18BD

Contactor Application:

• Motor control
• Resistive load

Rated Operational Voltage:

 300 V DC

690 V AC

Control Circuit Voltage: 24 V DC

Device Short Name: LC1D

No. Of Poles: 3P

Control Circuit Type: DC standard

Rated Impulse Withstand Voltage: 6 kV

Mounting Support: Plate, Rail

Time Constant: 28 ms

Minimum Switching Current: 5 mA

Minimum Switching Voltage: 17 V

Dimensions ( height x width x depth ): 77 x 45 x 95 mm

Frequency: 25…400 Hz

Operating Temperature: -5 … 60 °C

Weight: 0.52 kg
