Schneider LC1D95B7 Contactor

Name: SCHNEIDER LC1D95B7 CONTACTOR
SKU: 1080614
Availability: LimitedAvailability

Neu

Auf Lager1 EinheitVersandbereit

Contactor

The Schneider Telemecanique LC1 D95B7 contactor delivers high-performance switching with 95 A AC-3 rating, 24 V AC coil, and durable TeSys Deca construction for industrial motor control.

Hersteller

Schneider / Telemecanique

SKU

1080614

Kategorie

Contactors & Accessories

Zustand

Neu

24v 3-Pole 95A AC AC-3 coil Contactor D95B7 Deca Duty Heavy Industrial LC1 LC1D LC1D95B7 motor Power Schneider Series Telemecanique TeSys

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

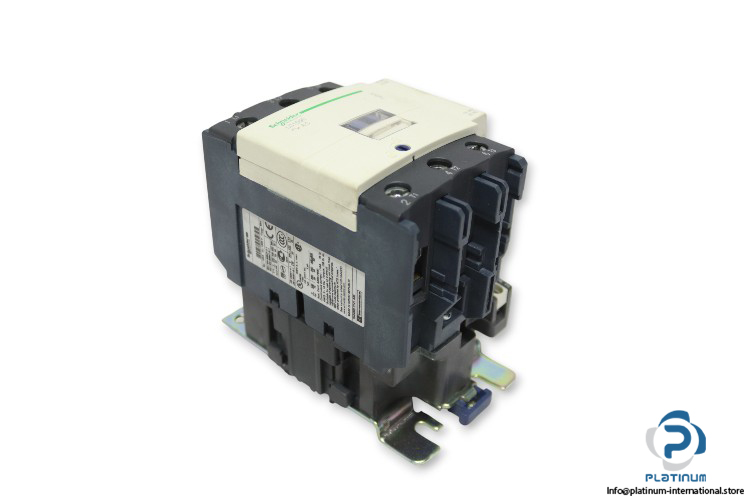

Schneider Telemecanique LC1D95B7 Contactor

The Schneider Telemecanique LC1 D95B7 Contactor from the TeSys Deca range is a high-performance power contactor designed for demanding industrial applications. It delivers reliable switching, long mechanical life, and excellent electrical durability for motors and heavy loads across a wide voltage range.

Manufacturer: Schneider Telemecanique

Type: Contactor

Model: LC1 D95B7

Part No.: 045065

Power AC-3:

Horse Power:

Range	TeSys Deca
Short Name	LC1D

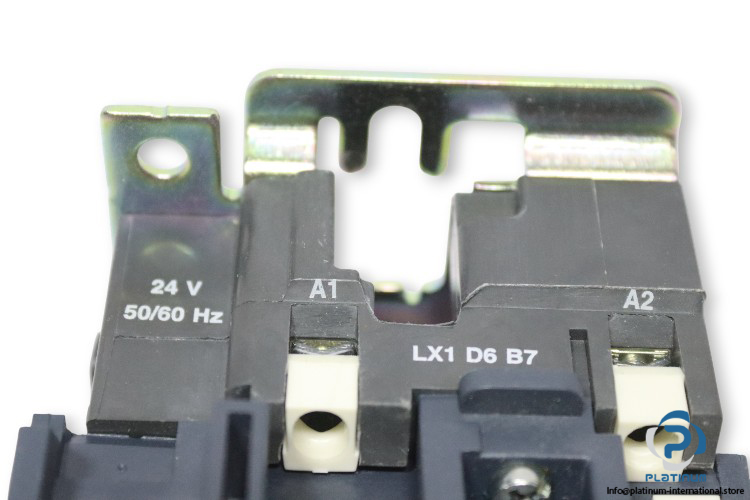

Coil Voltage	24 V AC
Rated Operational Voltage	690 V AC
Rated Operational Current AC-3	95 A
Rated Thermal Current	125 A
Rated Insulation Voltage	1000 V AC
Frequency	50 / 60 Hz
220/400 V AC	25 kW
380/440 / 660/690 V AC	45 kW
500 V AC	55 kW
1 Phase 120 V AC	7.5 HP
1 Phase 230/240 V AC	15 HP
3 Phase 200/208, 230/240 V AC	30 HP
3 Phase 460/480, 575/600 V AC	60 HP
Rated Impulse Voltage (Uimp)	8 kV
Poles No.	3-Pole
Contact	3-Pole 3 Normally Open (NO) + 1 Normally Closed (NC)
Rated Breaking Capacity	1100 A
Protection Class	IP20
Ambient Temperature	-40 / 60 °C
Dimensions	127 x 85 x 130 mm
