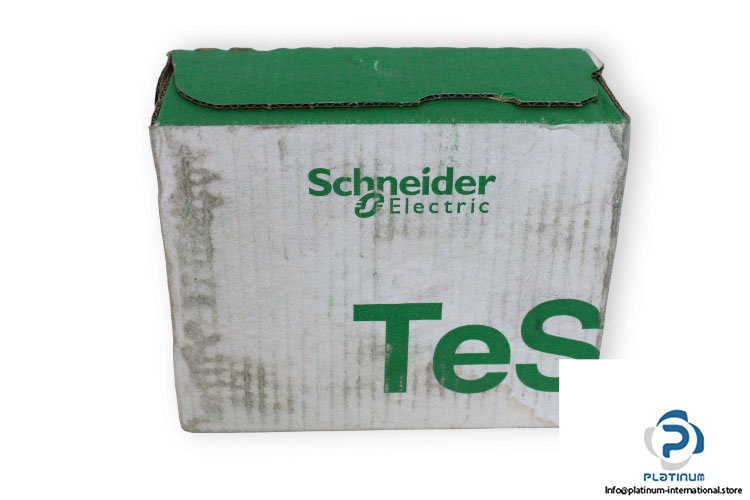

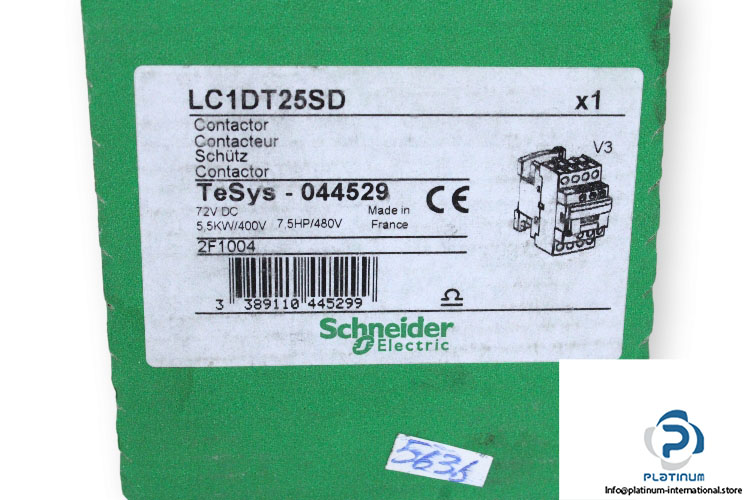

Schneider LC1DT25SD Contactor

Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1DT25SD
Range: TeSys
Part no.: 2F1004

[Ue] rated operational voltage:
Power circuit: <= 690 V AC 25…400 Hz
Power circuit: <= 300 V DC
[Ie] rated operational current:
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage: 72 V DC
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Pole contact composition: 4 NO
Contact compatibility: M7
Auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current:
10 A (at 60 °C) for signalling circuit
25 A (at 60 °C) for power circuit
Ambient temperature: -40 … 60 °c
Dimension ( Width x Depth x Height ): 45 x 99 x 85 mm
