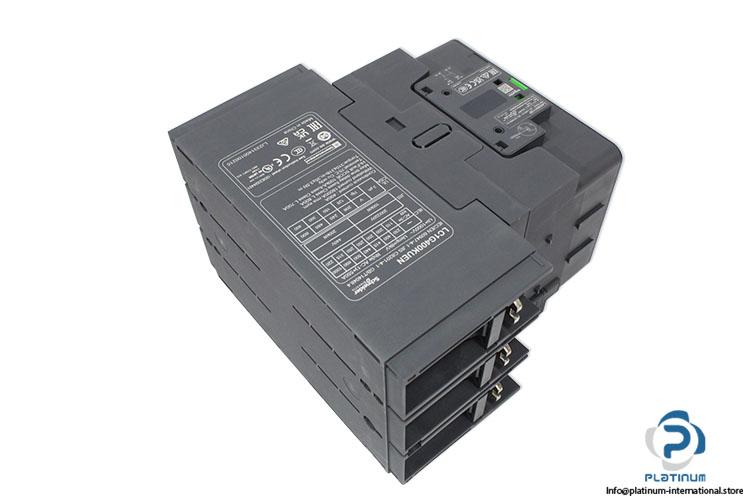

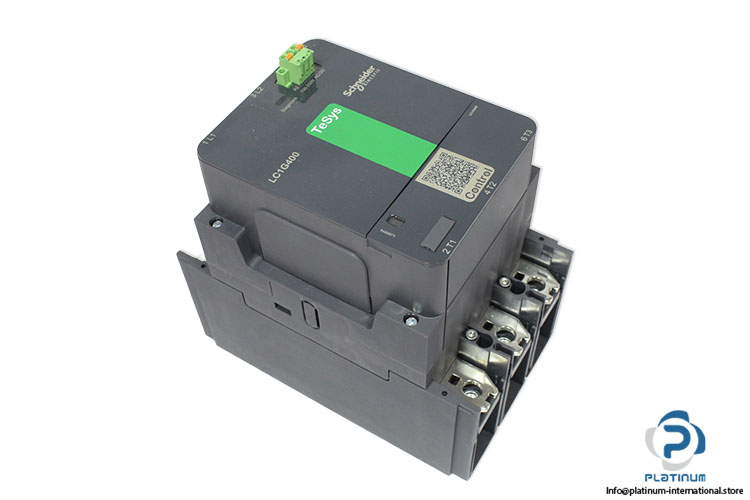

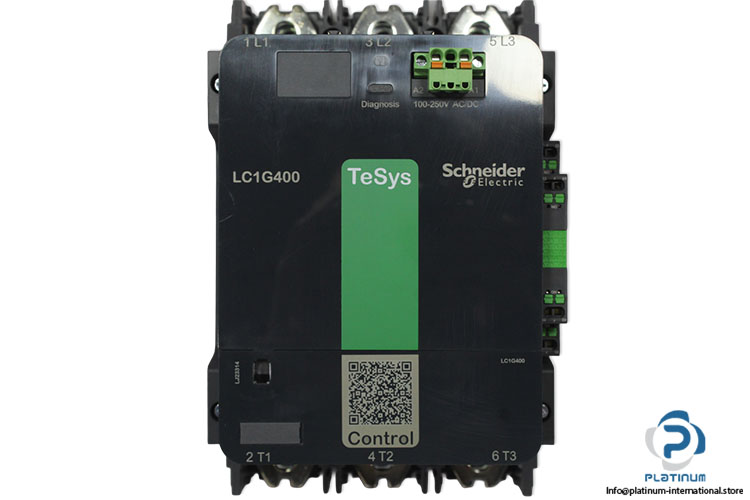

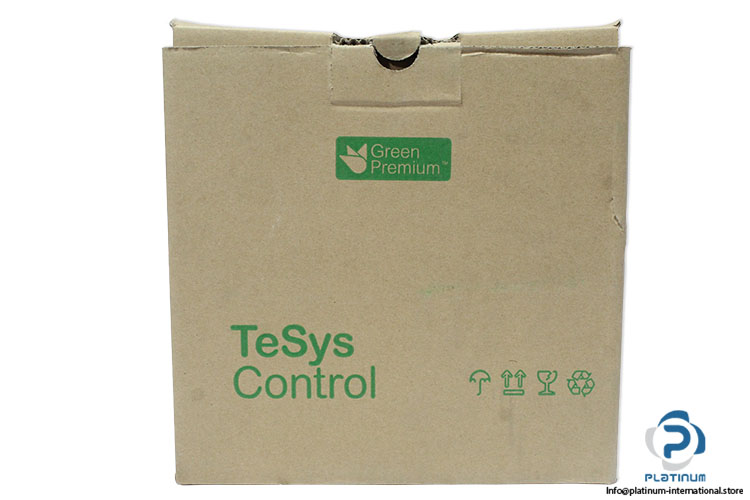

Contactor SCHNEIDER TeSys Giga LC1G400KUEN contactor designed for industrial motor control and power switching applications with 400 A rated operational current and 1000 V AC operating voltage.

Hersteller
SCHNEIDER
SKU
1099312
Zustand
Neu
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SN3606481921987
RangeTeSys
Range of ProductTeSys Giga
Product or Component TypeContactor
Device short nameLC1G
Contactor applicationPower switching,Motor control
Poles description3P

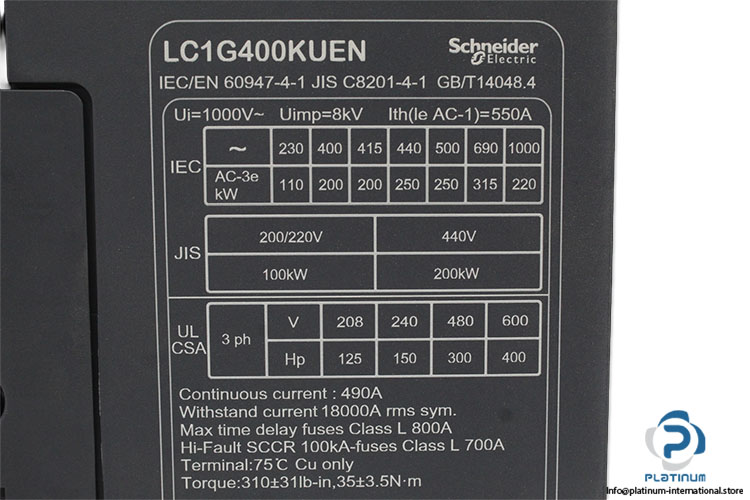

[Ue] rated operational voltage1000 V AC 50/60 Hz , 460 V DC
[Ie] rated operational current400 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Uc] control circuit voltage100...250 V AC 50/60 Hz,100...250 V DC
[Uimp] rated impulse withstand voltage8 kV
Overvoltage categoryIII
[Ith] conventional free air thermal current550 A (at 104 °F (40 °C))
Rated breaking capacity3480 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Product CertificationsCB Scheme, CCC, cULus,EAC,CE,UKCA,EU-RO-MR by DNV-GL
Tightening torque309.8 lbf.in (35 N.m)
Height8.9 in (225 mm)
Width5.5 in (140 mm)
Depth8.9 in (226 mm)
Ambient air temperature for operation-13…140 °F (-25…60 °C)

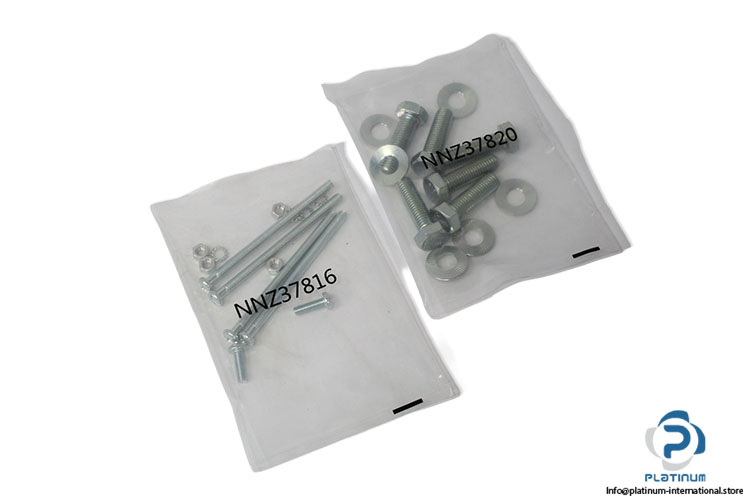

Attached withNNZ37820/NNZ37816 assembly kit

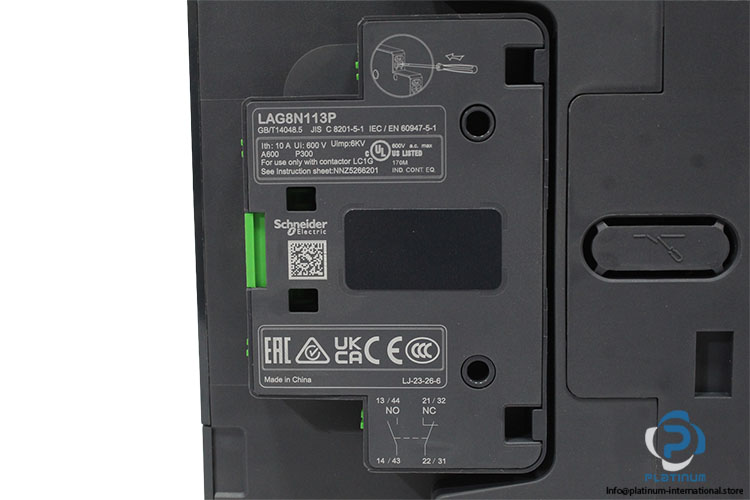

Attached with2SCHNEIDER LAG8N113P Auxiliary contact block
[Ue] rated operational voltage, Auxiliary contact block600 V AC 25...400 Hz
Pole contact composition, Auxiliary contact block1 NO + 1 NC
Height, Auxiliary contact block2.2 in (55.8 mm)
Width, Auxiliary contact block0.6 in (15.4 mm)
Depth, Auxiliary contact block3.3 in (84.8 mm)
Stock KeyCON003
ConditionNew
SKU1099312
Weight7,75
