Schneider LC1K0610B7 Contactor
Neu
Auf Lager1 EinheitVersandbereit

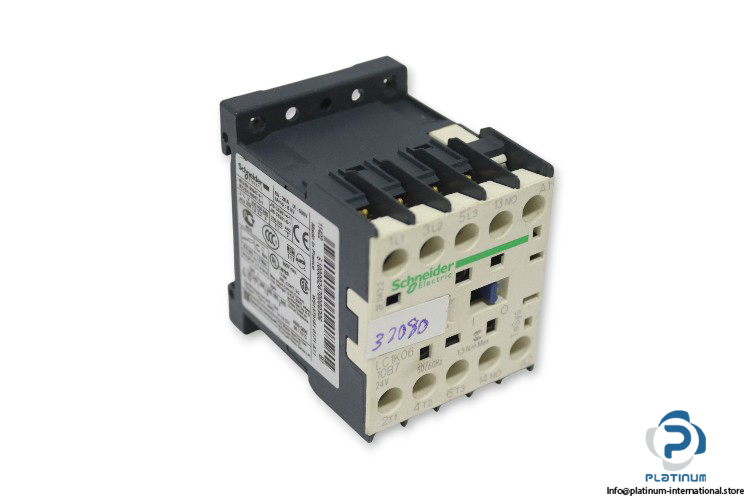

Contactor The Schneider Electric LC1K0610B7 is a compact TeSys 3-pole contactor with 6 A rated current and 24 V AC control voltage, designed for reliable motor control and industrial switching applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 6100002470000306 |
| Range | TeSys |
| Device Short Name | LC1K |
| Utilisation category | AC-3/AC-3e/AC-4 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz/Signalling circuit: <= 690 V AC <= 400 Hz |
| [Ie] rated operational current | 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| Standard | IEC/EN 60947-4-1,IEC/EN 60947-5-1 |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Motor power Kw | 1.5 kW at 220...230 V AC 50/60 Hz AC-3,2.2 kW at 380...415 V AC 50/60 Hz AC-3 |
| Number Of Poles | 3 |
| Auxiliary Contact Composition | 1 NO |
| Ambient air temperature for storage | -50…80 °C |
| Dimensions | 58 x 45 x 57 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100635 |
| Weight | 0,17 |
