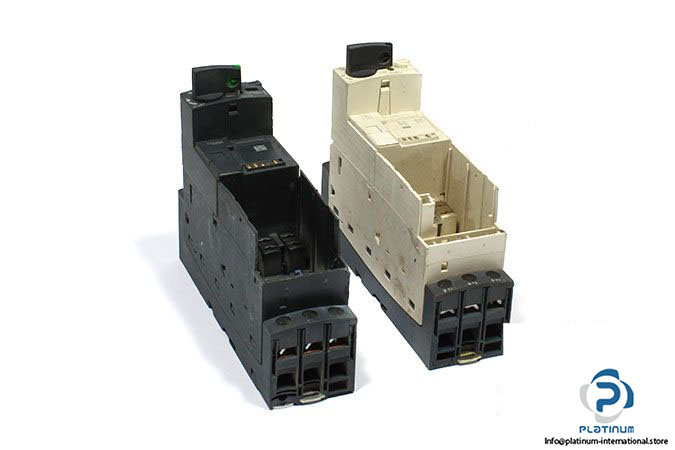

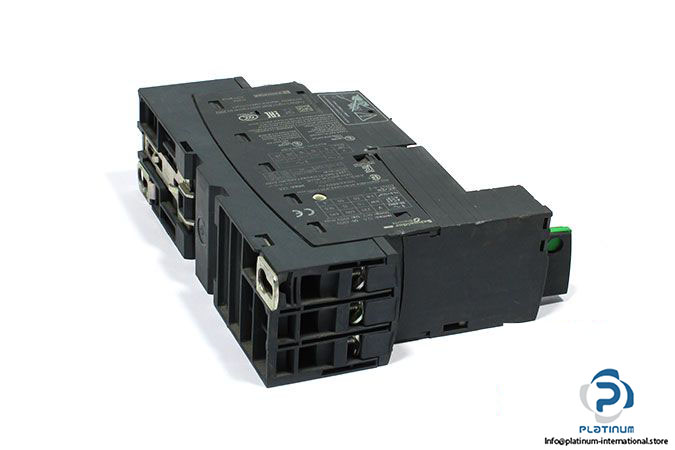

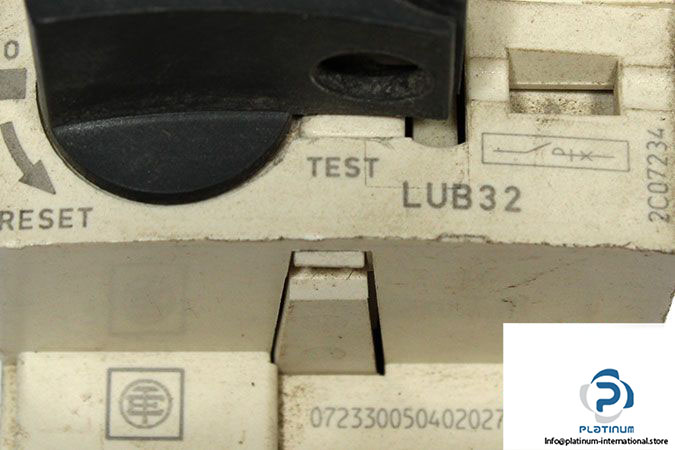

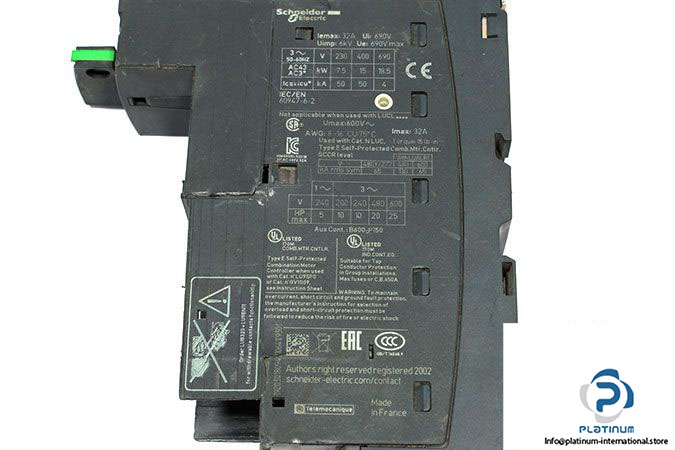

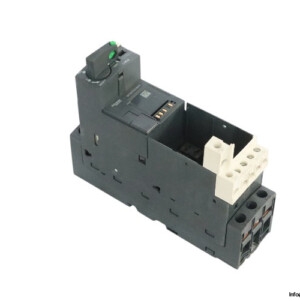

Schneider LUB32 Power Base

Manufacturer: SCHNEIDER

Type: Power Base

Range: TeSys

Model: LUB32



Device Application: Motor control, Motor protection

Rated operational voltage: 690 V AC power circuit

network frequency: 40…60 Hz

conventional free air thermal current: 32 A

Rated operational current: 28.5 A <= 440 V

23 A 500 V

21 A 690 V

auxiliary contact composition: 1 NO + 1 NC

Dimension ( W X H X D ): 45 X 154 X 126 mm

Ambient Temperature: -40 … 85 °C
