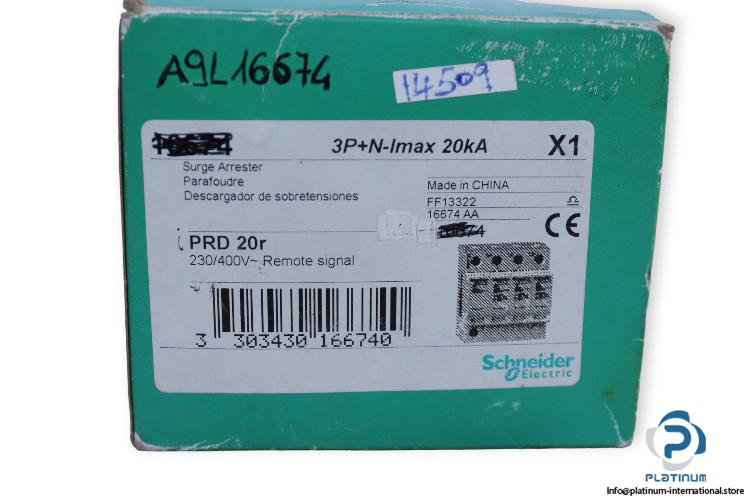

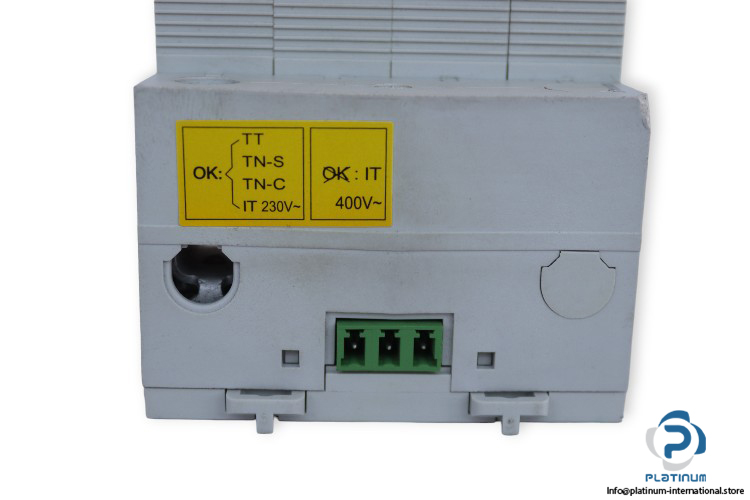

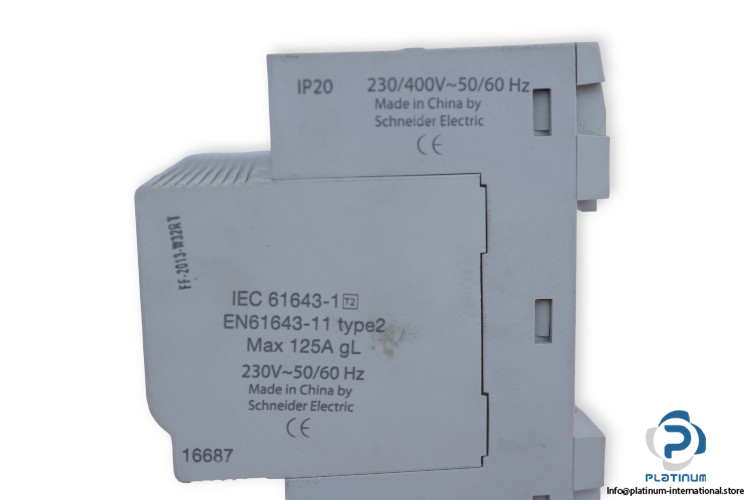

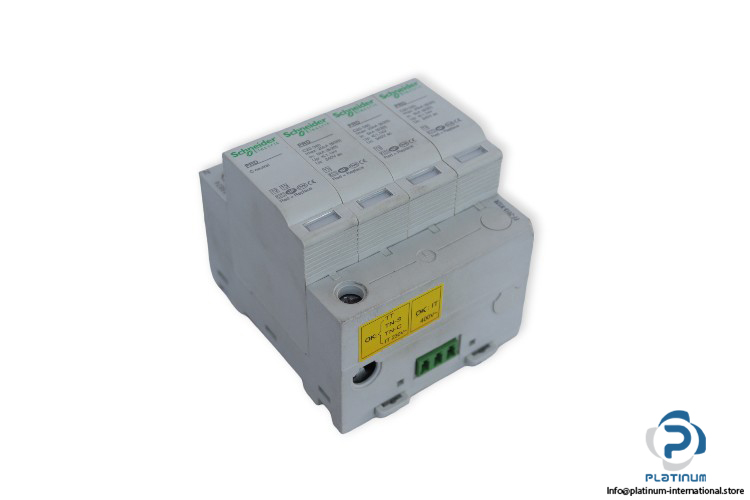

SCHNEIDER PRD20r SURGE ARRESTER MODULE

Manufacturer: SCHNEIDER
Type: Surge Arrester Module
Model: PRD20r
Part No.: 16674

Range: Multi9 PRD
Rated Operational Voltage: 230 / 400 V AC
Nominal Discharge Current: 5 kA
Maximum Discharge Current: 20 kA
Frequency: 50 … 60 Hz
No. of Poles: 3-Pole+N
Surge Arrester Technology: MOV + GDT
Protection Class: IP20
Ambient Operating Temperature: -25 … 60 °C
Dimensions: 81 x 72 x 69 mm

Attachment:

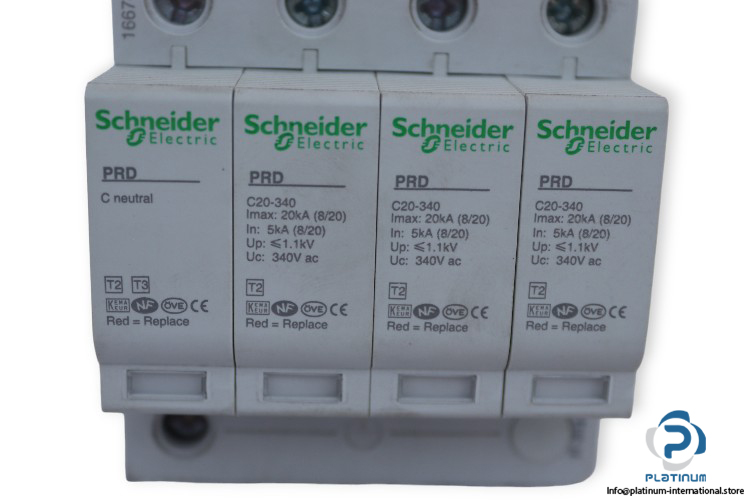

SCHNEIDER C20-340 SURGE ARRESTER CARTRIDGE

Manufacturer: SCHNEIDER
Type: Surge Arrester Cartridge
Model: C20-340
Part No.: 16687

Range: Multi9 PRD
Short Name: C neutral-340
Rated Continuous Operational Voltage: 340 V AC
Nominal Discharge Current: 5 kA
Maximum Discharge Current: 20 kA
Frequency: 50 … 60 Hz
Technology: MOV
Mounting Mode: Plug-In
Material: PBT (Polybutylene Terephthalate)
Protection Class: IP20
Ambient Operating Temperature: -25 … 60 °C
Dimensions: 50 x 18 x 60 mm

Attachment:
SCHNEIDER C neutral ARRESTER CARTRIDGE

Manufacturer: SCHNEIDER
Type: Surge Arrester Cartridge
Model: C neutral
Part No.: 16691

Range: Multi9 PRD
Rated Continuous Operating Voltage: 260 V AC
Nominal Discharge Current: 20 kA
Maximum Discharge Current: 65 kA
Frequency: 50 … 60 Hz
Technology: GDT
Mounting Mode: Plug-In
Material: PBT (Polybutylene Terephthalate)
Protection Class: IP20
Ambient Operating Temperature: -25 … 60 °C
Dimensions: 50 x 18 x 60 mm
