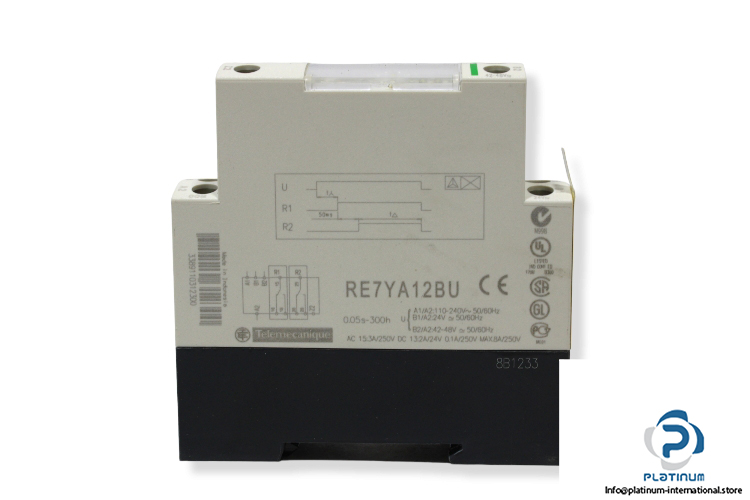

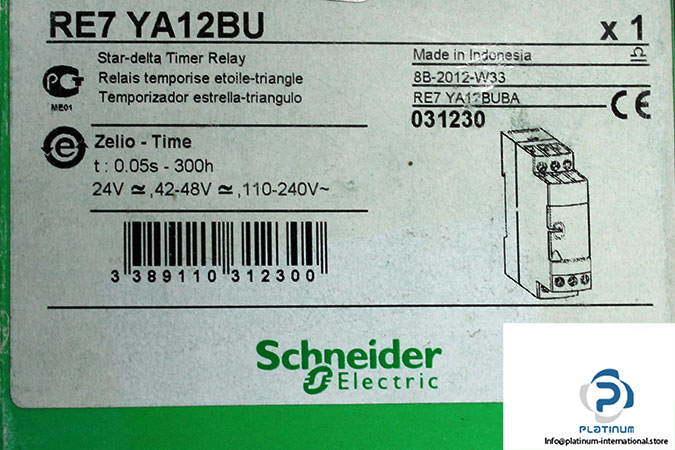

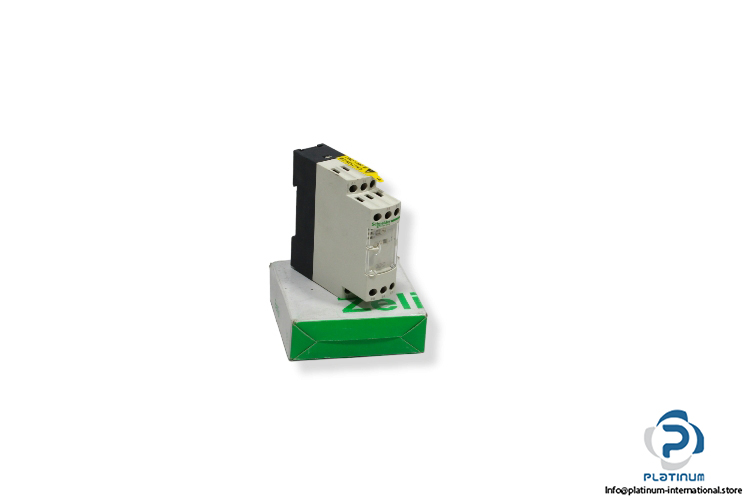

Schneider RE7 YA12BU Star-Delta Timer Relay

Manufacturer: SCHNEIDER

Type: Star-Delta Timer Relay

Model: RE7 YA12BU

Part No.: 031230

Rated Supply Voltage: 110 … 240 V Ac , 24 V AC / DC , 42 … 48 V AC / DC

Maximum rated operational current: 2 A DC-13 24 V , 0.1 A DC-13 250 V , 0.2 A DC-13 115 V,  3 A AC-15

Maximum power consumption: 0.8 W at 24 V (1.2 VA) , 1.6 W at 48 V (2 VA)

Time ranges: 0.05 s … 300 h

Number of contacts: 2 C/O contact

Contact material: 90/10 silver nickel contacts

Frequency: 50 … 60 Hz

Operating Temperature: -20 … +60 °C

Degree of protection (terminal): IP20

Dimension: 78 x 22.5 x 80 mm
