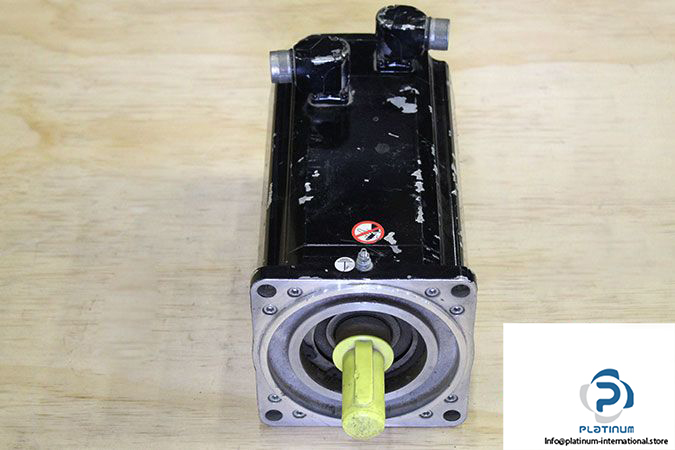

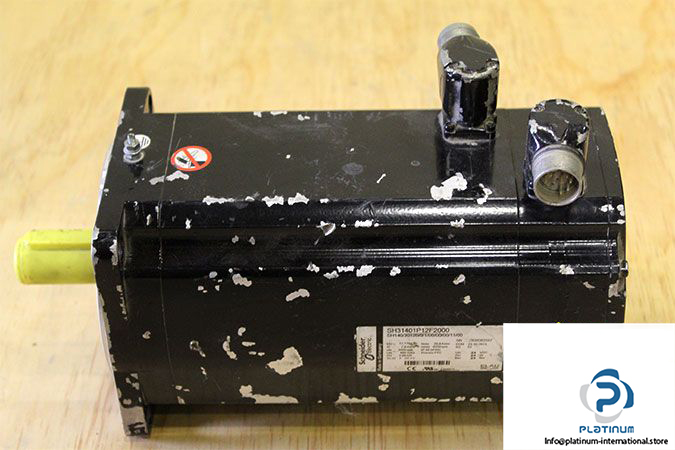

Schneider Electric SH31401P12F2000 Servo Motor

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR

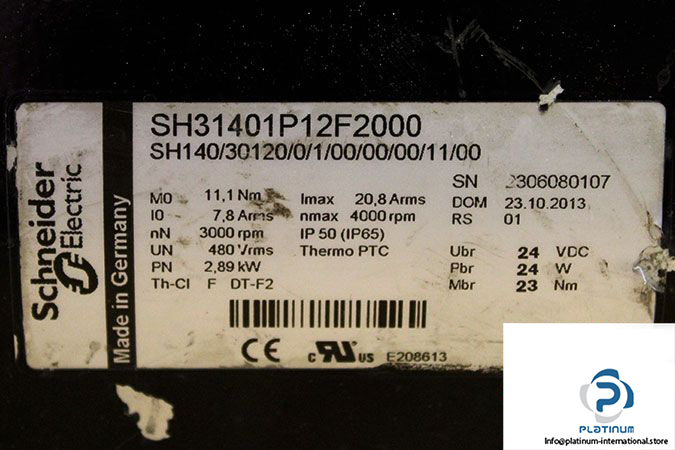

Model: SH31401P12F2000

Alternative Model: SH140/30120/0/1/00/00/00/11/00

Rated Voltage : 480 Vrms

Max. Current: 20.8 Arms

Stall Current: 7.8 Arms

Normal Speed: 3000 Revolution Per Minute (rpm)

Max. Speed: 4000 Revolution Per Minute (rpm)

Nominal Torque: 11.1 Nm

Holding Torque: 23 Nm

Holding Brake: With

Nominal Power: 2.89 kW

Flange Size: 140 mm

Motor Length: 255.5 mm

Shaft Diameter: 24 mm

Shaft Length: 50 mm

Thermal Class: F

Protection Class: IP50 (IP65)
