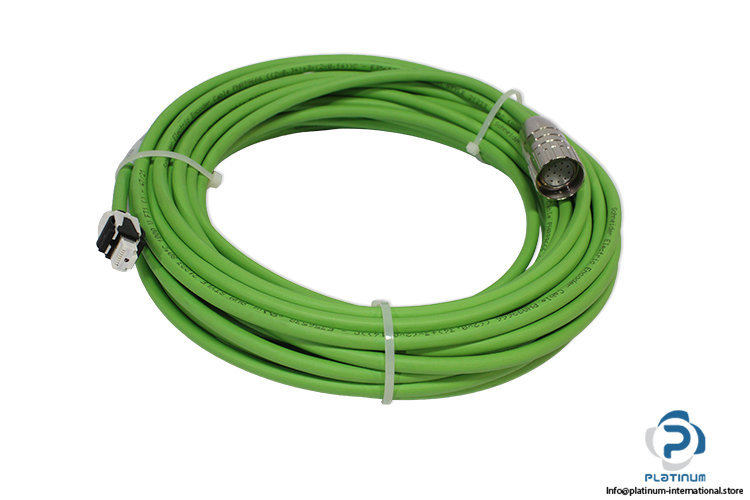

Schneider VW3M8102R150 Encoder Cable
Encoder-Kabel SCHNEIDER SinCos Hiperface Encoderkabel VW3M8102R150, 15 m Länge, mit RJ45- und 12-poligen Buchsensteckern, für Encoder-Feedback zwischen Servomotoren und Servoantrieben entwickelt.
SCHNEIDER VW3M8102R150 SinCos Hiperface Encoder Cable
The SCHNEIDER VW3M8102R150 is a high-quality SinCos Hiperface encoder cable designed for precise feedback signal transmission between servo motors and servo drives. It is engineered to ensure reliable communication, high electrical performance, and durability in demanding industrial automation environments.
Manufacturer: SCHNEIDER
Type: SinCos Hiperface Encoder Cable

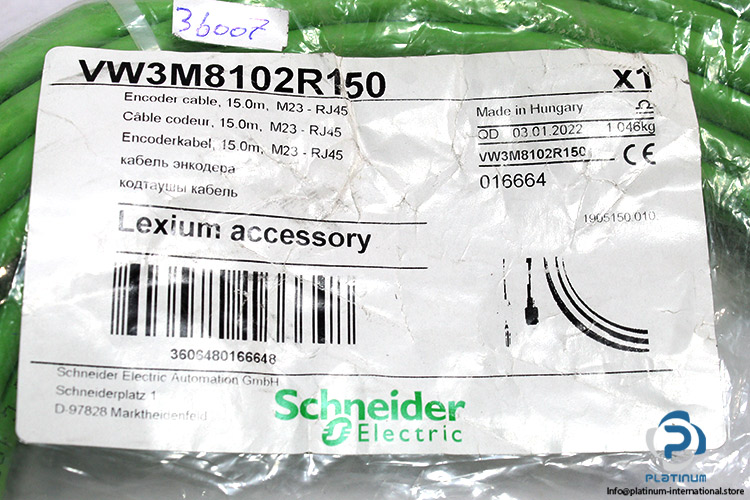

Model: VW3M8102R150

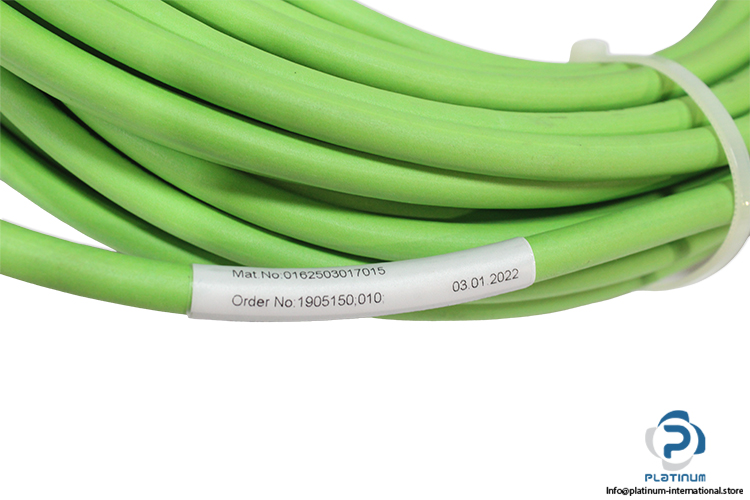

Order No.: 1905150.010
Material No.: 0162503017015
Code: 016664 / 3606480166648
Application
Used as an encoder feedback cable between servo motors and servo drives in Schneider Electric servo systems, CNC machinery, and robotics applications.
| Cable Length | 15 m |

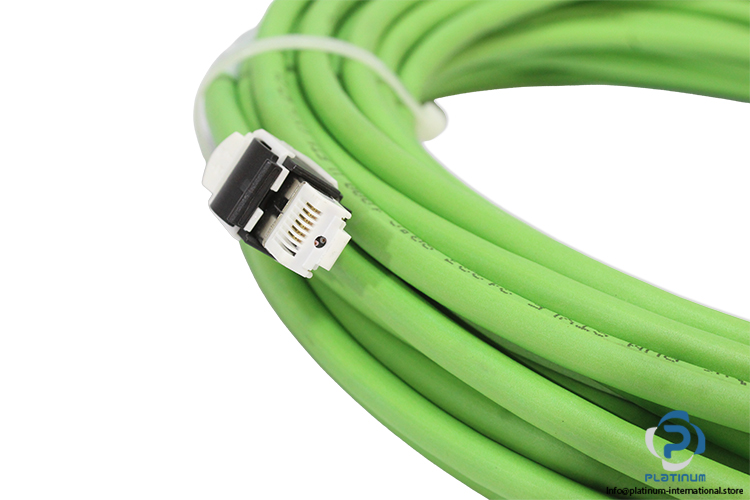

| Connector 1 | RJ45 |

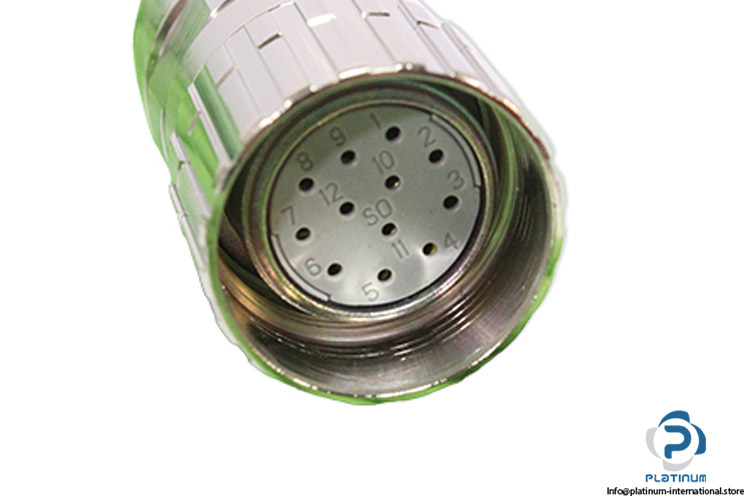

| Connector 2 | 12 Pin / Female |
| Thread Size | M23 |
| Range Compatibility | Lexium 32 |
| Product Or Component Type | SinCos Hiperface Encoder Cable |
| Accessory / Separate Part Destination | From Servo Motor To Servo Drive |

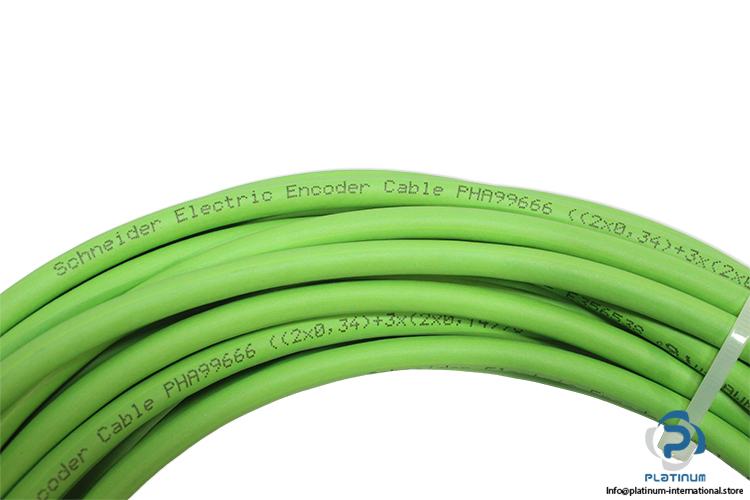

| Cable Composition | 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²) |

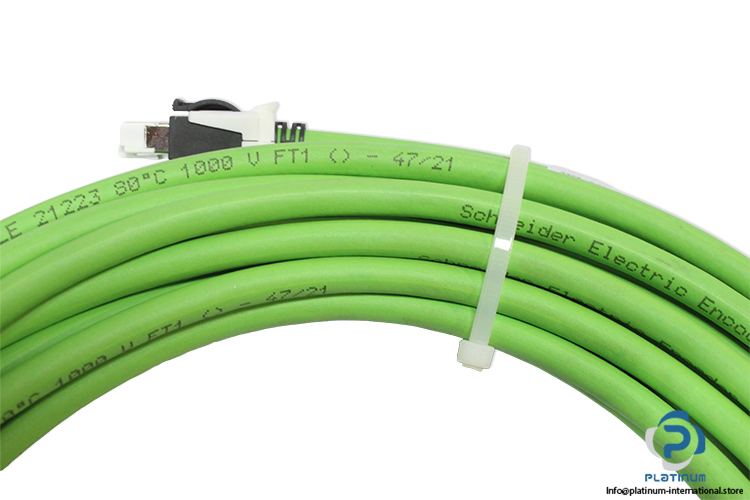

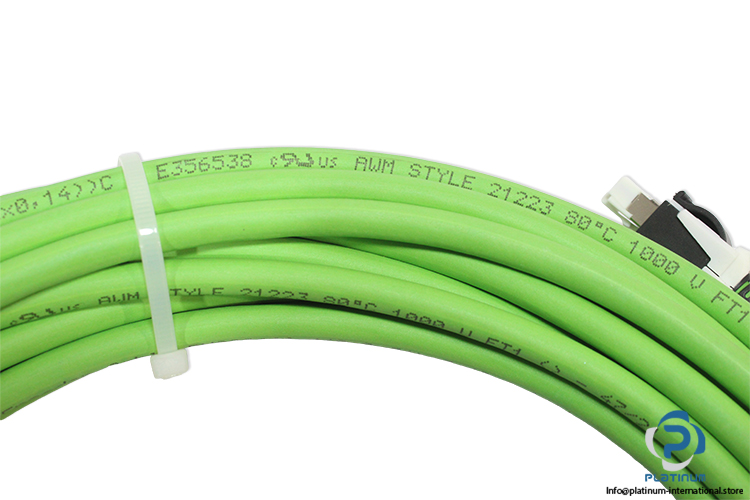

| Cable Information | 80°C, 1000 V, FT1, AWM Style 21223 |
