Schneider XAP M1202 Empty Control Station Enclosure
Neu
Auf Lager2 EinheitenVersandbereit
Empty Control Station Enclosure
The SCHNEIDER XAPM1202 is a die-cast metal control station enclosure with two cut-outs, IP65 and IP69K protection, and compatibility with 22 mm control and signalling units.22AlloyBoxControlEmptyenclosureHarmonyHousingIndustrialIP65IP69KmmSchneiderSeriesStationUnitXAPxapmXAPM1202Zinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SCHNEIDER XAPM1202 Empty Control Station Enclosure

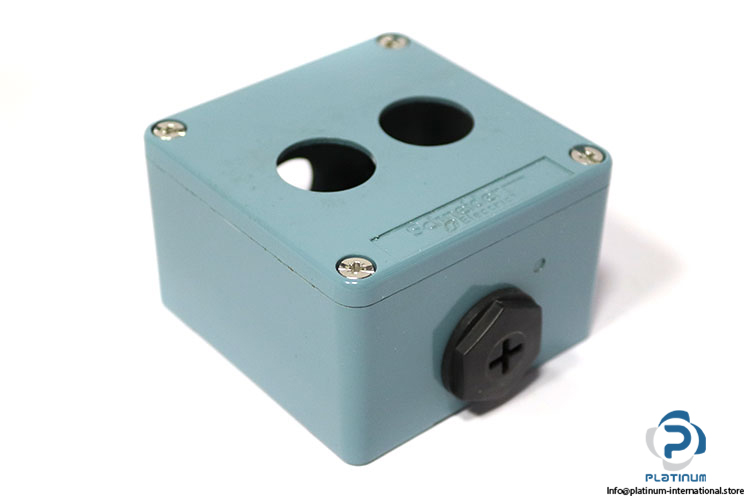

The SCHNEIDER XAPM1202 Empty Control Station Enclosure is a robust die-cast housing designed for Ø 22 mm control and signalling units. Built for harsh environments, it provides strong mechanical protection, reliable sealing, and compatibility with the Harmony XAP range.
Manufacturer: SCHNEIDER
Type: Empty Control Station Enclosure

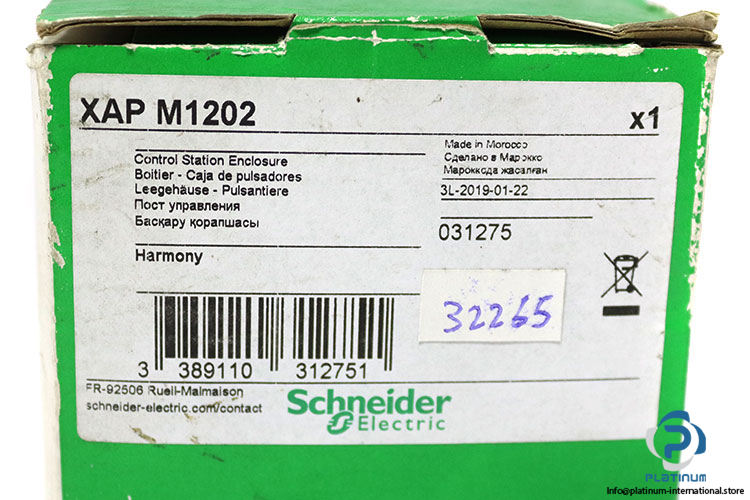

Model: XAPM1202
MRN: 031275
Serial Number: 3389110 312751
| Range of Product | Harmony XAP |
| Product or Component Type | Die-cast empty control station |
| Device Short Name | XAPM |
| Product Destination | For 22 mm control and signalling units |
| Front Plate Size | 80 x 80 millimeters |
| Usable Depth | 49 millimeters |
| Number of Cut-outs | 2 cut-outs |
| Colour of Base | Blue |
| Colour of Cover | Blue |
| Material | Zinc alloy |
| Cable Entry | 1 hole with blanking plug, clamping capacity 14 millimeters; 1 hole without blanking plug, clamping capacity 14 millimeters |
| Device Mounting | Flush |
| Protection Degree | IP65 (IEC 60529), IP69 (NF C 20-010), IP69K |
| Number of Vertical Rows | 2 |
| Protective Treatment | TC |
| Ambient Air Temperature for Operation | minus 40 to 70 degree Celsius |
