Schneider XAP M1601 Empty Control Station Enclosure

Schneider XAPM1601 Empty Control Station Enclosure

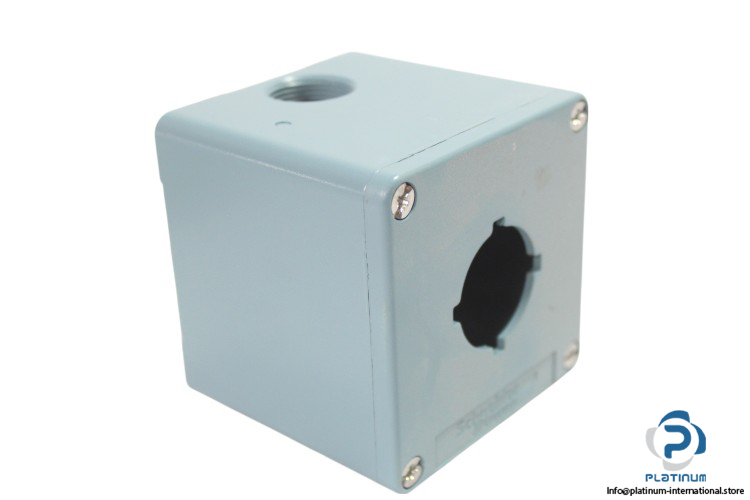

The Schneider XAPM1601 is an empty control station enclosure from the Harmony XAP range. Designed for mounting 30.5 mm control and signaling units, it provides excellent protection and durability with a zinc alloy body. Offering high IP65 and IP69K protection ratings, this enclosure is ideal for industrial applications that require secure, weatherproof housing for electrical controls.

Manufacturer: SCHNEIDER

Type: Empty Control Station Enclosure

Model: XAPM1601

MRN: 031301

Technical Data:

• Range of Product: Harmony XAP
• Device Short Name: XAPM
• Product Destination: For diameter 30.5 mm control and signaling units
• Product Front Plate Size: 80 x 80 mm
• Usable Depth: 74.5 mm
• Number of Cut-Out: 1 cut-out
• Color of Base of Enclosure: Blue
• Color of Cover: Blue
• Material: Zinc alloy
• Cable Entry: 1 hole with blanking plug for cable gland, clamping
• Degree of Protection: IP65 IEC 60529, IP69 NF C 20-010, IP69K
• Ambient Air Temperature for Operation: -40 to 70 °C
