Schneider ZB4BG614 Head FOR KEY Selector Switch
Kopf für Schlüsselschalter SCHNEIDER ZB4BG614 Kopf für Schlüsselschalter aus der Harmony XB4 Reihe mit verchromtem Metallrahmen, 22 mm Einbaudurchmesser, Schutzart IP66/IP67/IP69/IP69K und 2-Positionen 90°-Betätigung.
SCHNEIDER ZB4BG614 Head For Key Selector Switch

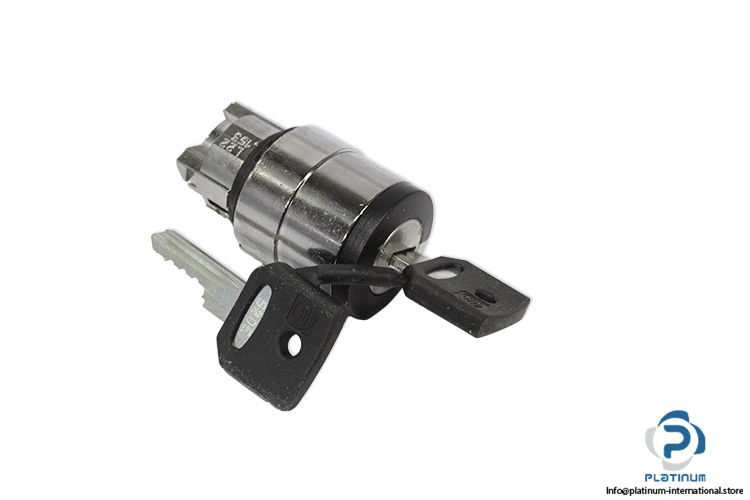

The SCHNEIDER ZB4BG614 is a robust head for key selector switch from the Harmony XB4 range, engineered for industrial control and automation applications. Featuring a chromium plated metal bezel and durable construction, it ensures reliable performance in demanding environments.
Manufacturer: SCHNEIDER
Type: Head For Key Selector Switch
Model: ZB4BG614
Part No.: 10156835

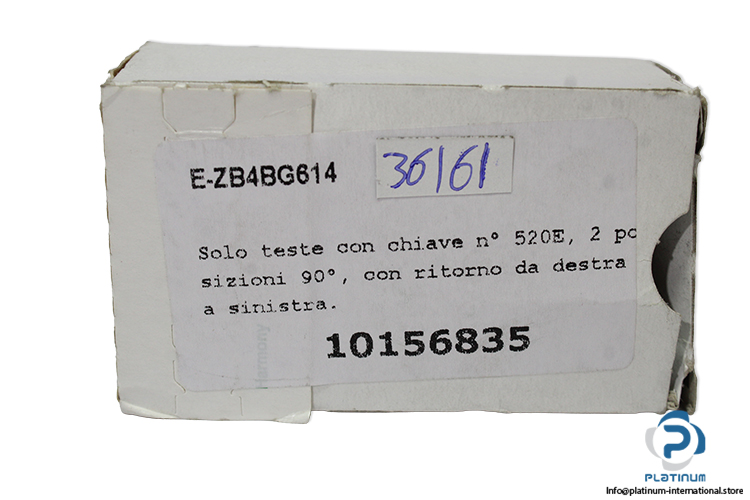

Code: E- ZB4BG614

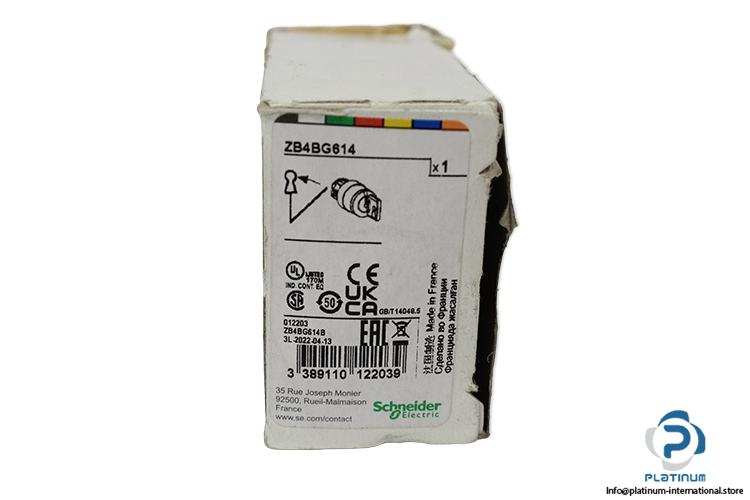

Serial No.: 3389110 122039
IP Degree Of Protection:
IP66 IEC 60529
IP67
IP69
IP69K
Standards:
EN/IEC 60947-5-5
EN/IEC 60947-5-1
UL 508
GB 14048.5
EN/IEC 60947-5-4
EN/IEC 60947-1
CSA C22.2 No 14
| Range Of Product | Harmony XB4 |
| Product Or Component Type | Head For Key Selector Switch |
| Device Short Name | ZB4 |
| Bezel Material | Chromium Plated Metal |
| Mounting Diameter | 0.9 in (22 mm) |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Return | Right To Left |
| Operator Profile | Black Key Switch |
| Operator Position Information | 2 Positions 90° |
| Type Of Keylock | Key 520E |
| Key Withdrawal Position | Left |
| CAD Overall Width | 1.1 in (29 mm) |
| CAD Overall Height | 1.1 in (29 mm) |
| CAD Overall Depth | 2.8 in (72 mm) |
| Ambient Air Temperature For Operation | -40 / 158 °F (-40 / 70 °C) |
| Overvoltage Category | Class I Conforming To IEC 60536 |
