Schneider ZBV-B1 Light Block
Lichtblock Die Schneider Electric ZBV-B1 Light Block ist eine 24V AC/DC Direktversorgungseinheit mit einer weißen Lichtquelle, Schraubklemmanschlüssen und IP20 Schutz.

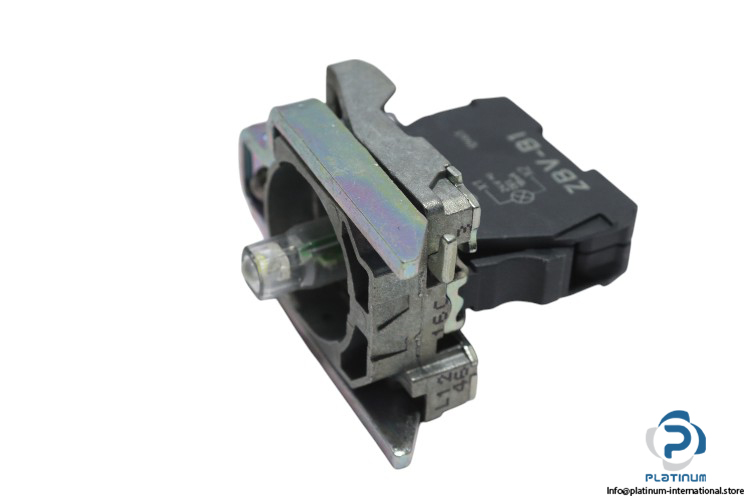

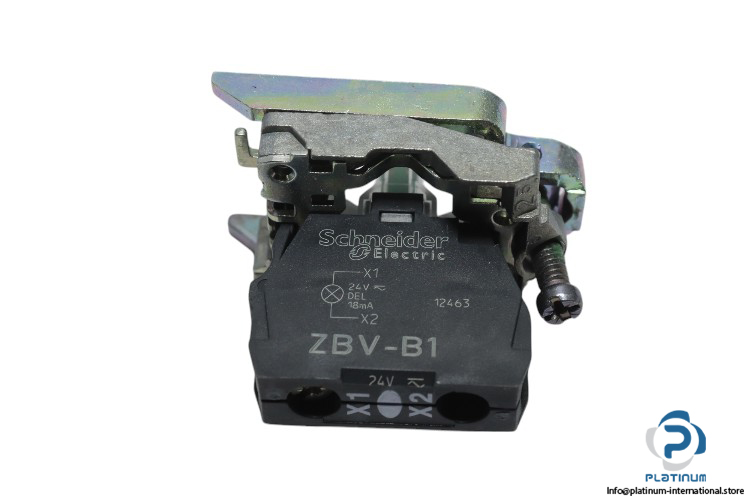

Schneider Electric ZBV-B1 Light Block
The Schneider Electric ZBV-B1 Light Block is a high-performance signaling component designed for use with 22 mm pilot light heads. Featuring direct light block supply, a white light source, and screw clamp terminal connections, this unit ensures reliable operation in industrial control applications.
Manufacturer: Schneider Electric
Type: Light Block
Model: ZBV-B1
Connections:
Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end (IEC 60947-1)
Screw clamp terminals, ≥ 1 x 0.22 mm² without cable end (IEC 60947-1)
| Used for Head | 22 mm |
| Rated Supply Voltage | 24 V AC/DC |
| Current Consumption | 18 mA |
| Light Block Supply | Direct |
| Light Source Color | White |
| Ambient Air Temperature for Operation | -40 to 70°C |
| IP Degree of Protection | IP20 |
