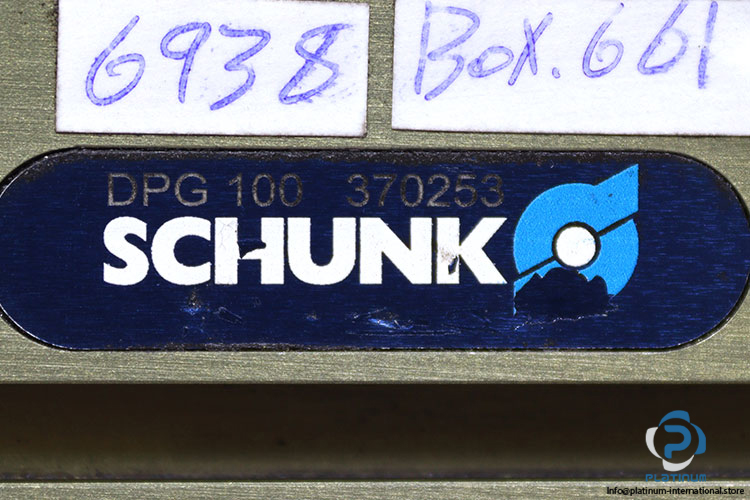

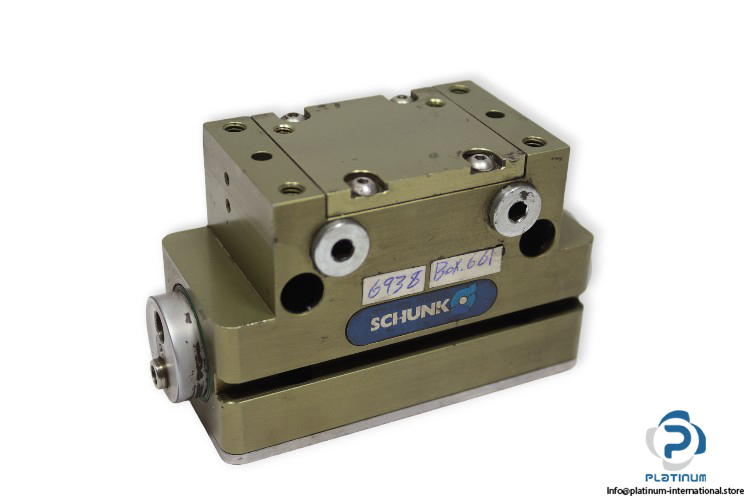

Schunk DPG 100 Sealed Gripper

Manufacturer: SCHUNK
Type: Sealed Gripper
Model: DPG100
ID No.: 370253

Stroke Per Jaw: 10 mm
Closing Force: 430 N
Opening Force: 600 N
Cylinder volume per double stroke: 40 cm³
Max. permissible finger length: 100 mm
Min. Operating Pressure: 3 bar
Max. Operating Pressure: 8 bar
Closing time: 0,06 s
Opening Time: 0,05 s
Max. permissible weight per finger: 0.75 Kg
Max. axial force Fz max: 320 N
Ambient Temperature: 5 … 90 °C
