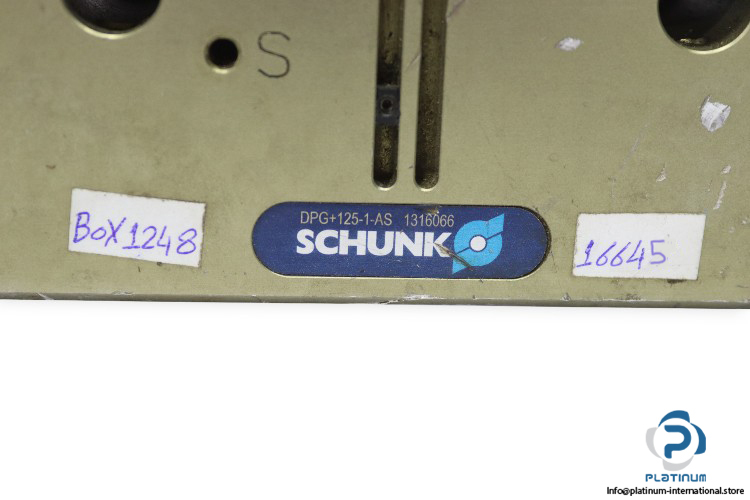

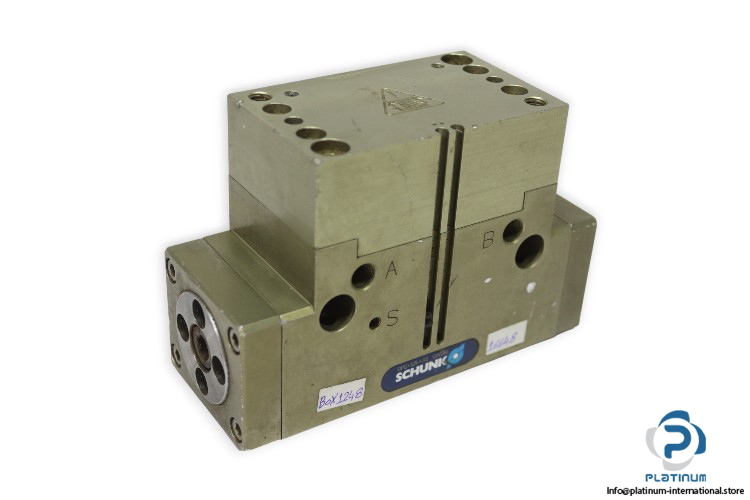

SCHUNK DPG-plus 125-1-AS SEALED UNIVERSAL GRIPPER
Gebraucht
Auf Lager1 EinheitVersandbereit
244,44$
Sealed Universal Gripper
The SCHUNK DPG-plus 125-1-AS is a precision pneumatic gripper with 13 mm stroke per jaw, 1400 N closing force, IP67 protection, and 0.01 mm repeat accuracy for high-performance automation systems.125-1-AS13AutomationComponentDPG-plusGripperIndustrialIP67mmPneumaticPrecisionSchunkSealedSeriesStrokeUniversal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SCHUNK DPG-plus 125-1-AS Sealed Universal Gripper
The SCHUNK DPG-plus 125-1-AS Sealed Universal Gripper is a high-performance pneumatic gripper designed for precise, reliable, and sealed handling in demanding industrial environments. Its durable construction, high gripping force, and IP67 protection make it ideal for automation applications requiring accuracy and endurance.
Manufacturer: SCHUNK
Type: Sealed Universal Gripper
Model: DPG-plus 125-1-AS
MRN: 1316066
| Stroke per Jaw | 13 mm |
| Closing Force | 1400 N |
| Closing Force (with Finger Lengths of 0 mm) | 1615 N |
| Minimum Spring Force | 375 N |
| Recommended Workpiece Weight | 5.1 kg |
| Cylinder Volume per Double Stroke | 119 cm³ |
| Minimum Operating Pressure | 4 bar |
| Maximum Operating Pressure | 6.5 bar |
| Nominal Operating Pressure | 6 bar |
| Minimum Air Purge Pressure | 0.2 bar |
| Maximum Air Purge Pressure | 0.5 bar |
| Closing Time | 0.11 s |
| Opening Time | 0.16 s |
| Maximum Permissible Finger Length | 125 mm |
| Maximum Permissible Weight per Finger | 1.75 kg |
| Protection Class | IP67 |
| Minimum Ambient Temperature | 5 °C |
| Maximum Ambient Temperature | 90 °C |
| Repeat Accuracy | 0.01 mm |
| Cleanroom Class ISO 14644-1 | 5 |
| Length X | 154 mm |
| Width Y | 60.1 mm |
| Height Z | 102.9 mm |
| Moment Mx Max | 90 Nm |
| Moment My Max | 110 Nm |
| Moment Mz Max | 75 Nm |
| Maximum Axial Force Fz Max | 2100 N |
