Schunk GWB 34 Angular Gripper
Gebraucht
Auf Lager1 EinheitVersandbereit
Angular Gripper
The Schunk GWB 34 Angular Gripper features a 90° opening angle, 2.112 Nm closing moment, and a compact design, offering precise gripping performance for automation applications.3490-degreeAngularAutomationGripperGrippingGWBhigh-performanceIndustrialopeningPneumaticPrecisionroboticSchunkSolutions
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

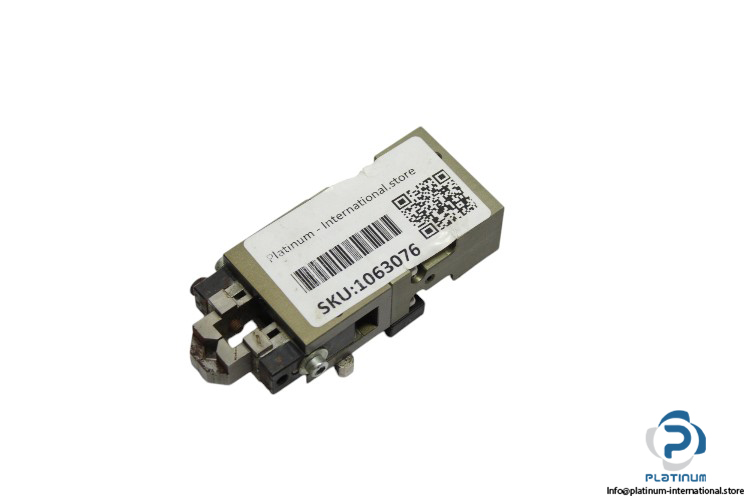

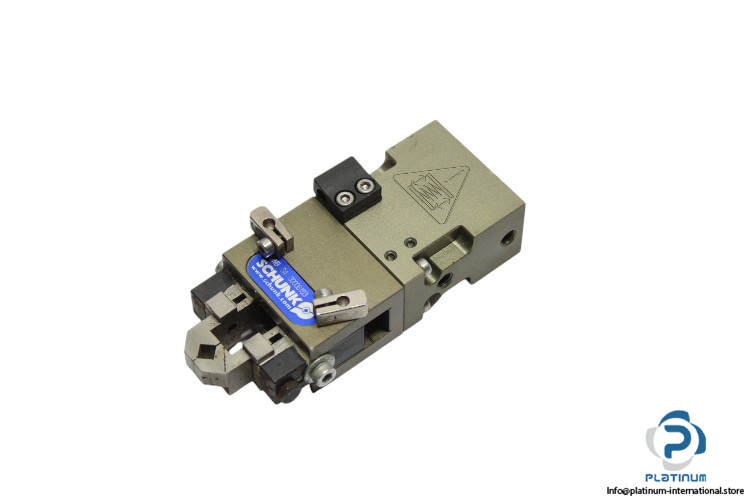

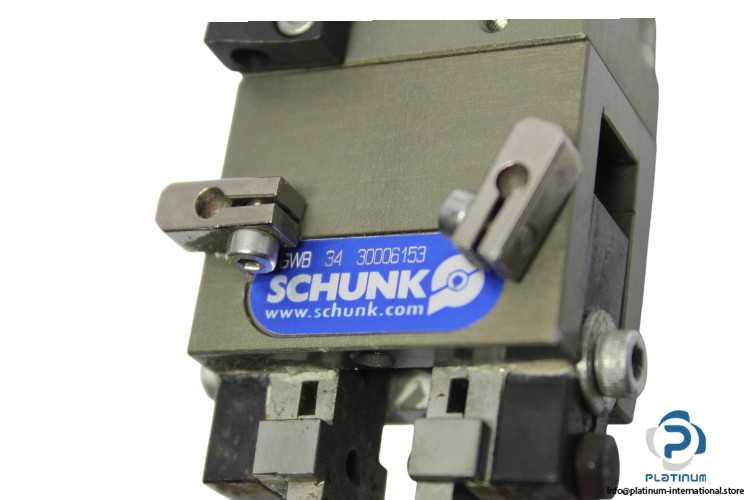

Schunk GWB 34 Angular Gripper
The Schunk GWB 34 Angular Gripper is a high-precision gripper designed for reliable gripping applications. With a compact design and a powerful gripping force, this gripper is ideal for industrial automation and robotic applications requiring precise handling.
Manufacturer: Schunk
Type: ANGULAR GRIPPER
Model: GWB 34
Part No.: 30006153
This angular gripper offers strong, precise, and reliable gripping performance, making it an ideal choice for industrial and automation applications.
| Opening Angle per Jaw | 90° |
| Opening Angle per Jaw up to | 2° |
| Closing Moment | 2.112 Nm |
| Closing Moment Ensured by Spring | 0.5 Nm |
| Recommended Workpiece Weight | 0.3 kg |
| Air Consumption per Double Stroke | 4.5 cm³ |
| Nominal Pressure | 6 bar |
| Minimum Pressure | 4 bar |
| Closing Time | 0.3 s |
| Opening Time | 0.4 s |
| Max. Permitted Finger Length | 40 mm |
| Connection | 5 mm |
