Schunk KGG 140 Gripper
Gebraucht
Auf Lager1 EinheitVersandbereit
199,99$
GRIPPER FOR SMALL COMPONENTS
SCHUNK KGG140 pneumatic gripper with 30 mm stroke per jaw, 260 N closing force, 300 N opening force, 2.5“8 bar pressure range, and 1.3 kg workpiece capacity.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

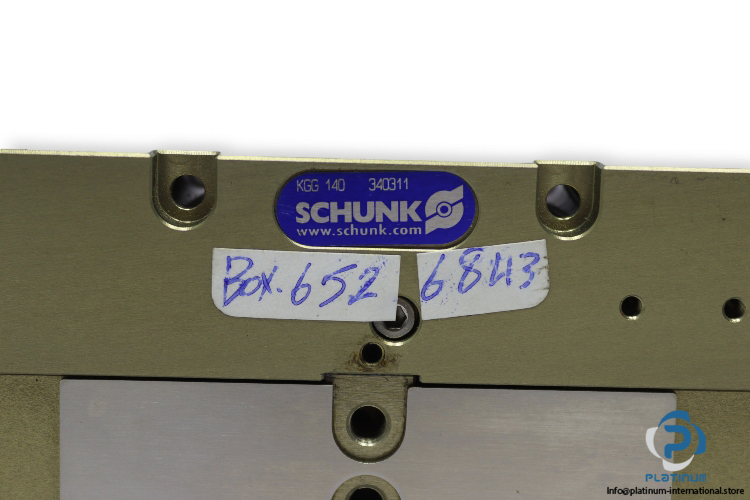

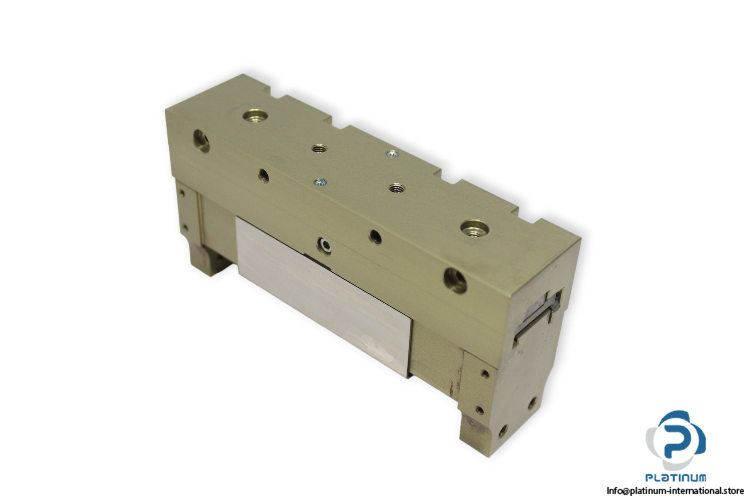

SCHUNK KGG140 Gripper for Small Components
The SCHUNK KGG140 is a precision gripper designed for handling small components in automation systems. With high gripping force, short cycle times, and compact dimensions, it provides reliable and efficient performance for assembly and material handling tasks.
Manufacturer: SCHUNK
Type: Gripper for Small Components
Model: KGG140
ID No.: 340311
| Stroke Per Jaw | 30 mm |
| Closing Force | 260 N |
| Opening Force | 300 N |
| Min. Spring Force | 1050 N |
| Min. Operating Pressure | 2.5 bar |
| Max. Operating Pressure | 8 bar |
| Closing Time | 0.17 s |
| Opening Time | 0.17 s |
| Connection | 5 mm |
| Recommended Workpiece Weight | 1.3 kg |
| Max. Ambient Temperature | 90 °C |
