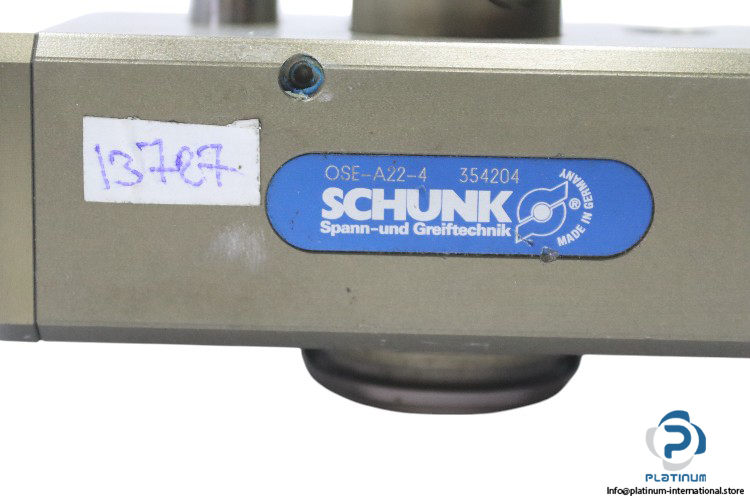

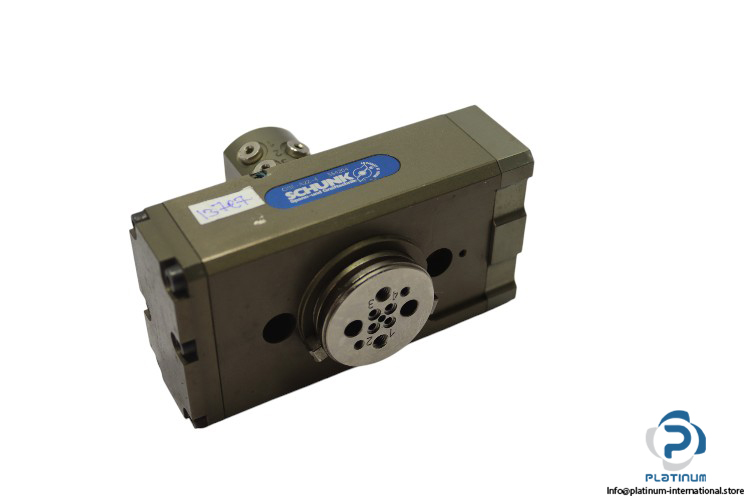

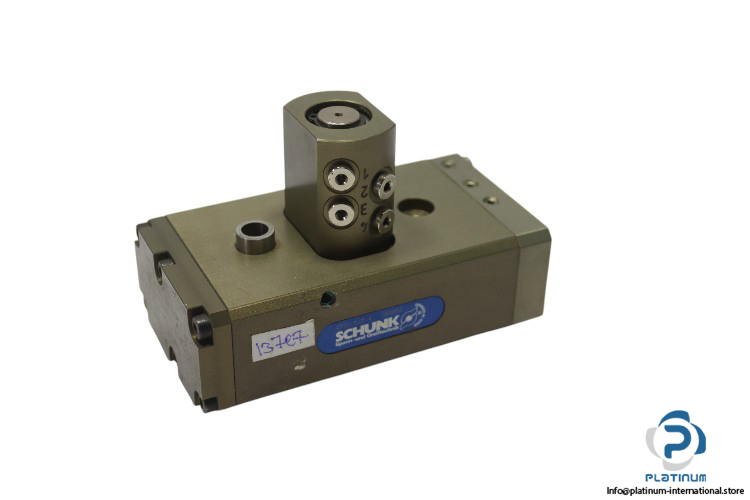

SCHUNK OSE-A22-4 SWIVEL UNIT

The SCHUNK OSEA224 Swivel Unit is a compact and high-performance rotary actuator designed for precise and durable use in automated systems. With a robust IP67 protection class and support for multiple pneumatic feed-throughs, it is well-suited for demanding industrial environments requiring efficient and accurate rotation.

Manufacturer: SCHUNK

Type: Swivel Unit

Model: OSE-A 22-4

Part No.: 354204

Swivel Angle: 180°

Operating Pressure: 4.5 … 8 bar

Feed-Throughs No.: 4

Axial Bearing Load: 800 N

Radial Bearing Load: 10.4 Nm

Protection Class: IP67

Operating Temperature: 5 … 60 °C

Pneumatic Connection: 7 mm

Dimensions: 118.5 x 36 x 64 mm
