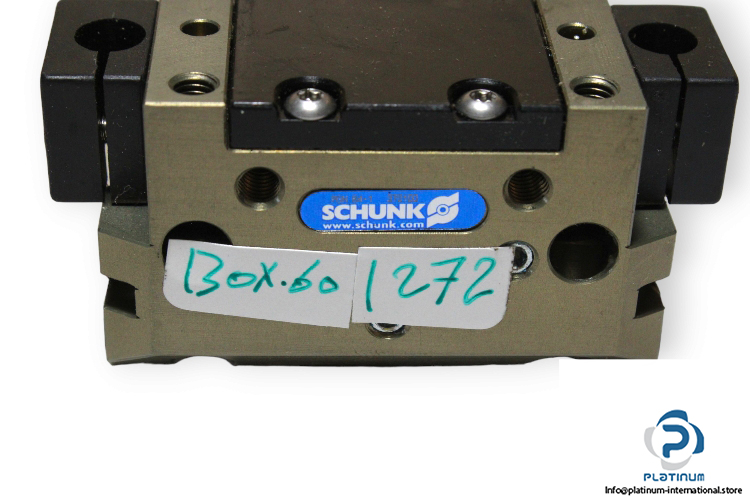

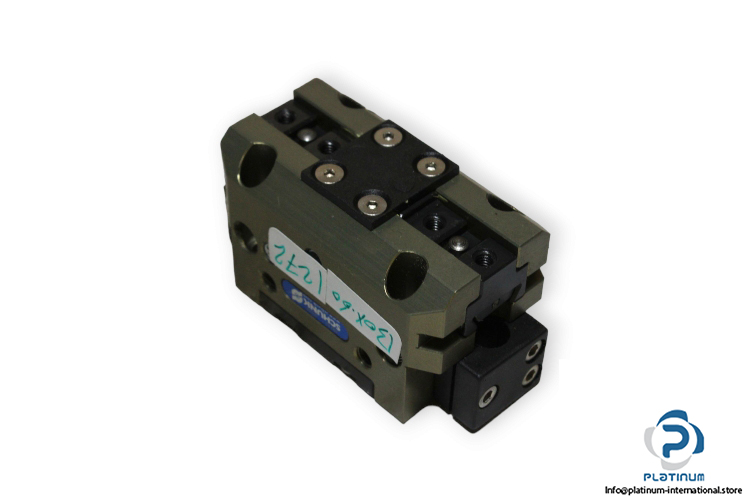

Schunk PGN 64-1 Universal Gripper

Manufacturer: SCHUNK
Type: Universal gripper
Model: PGN64-1

Stroke per jaw: 6 mm
Closing force: 250 N
Opening force: 270 N
Closing force (with finger lengths of 0 mm): 290 N
Opening force (with finger lengths of 0 mm): 315 N
Recommended workpiece weight: 1.25 kg
Min. operating pressure: 2.5 bar
Max. operating pressure: 8 bar
Nominal operating pressure: 6 bar
Min. air purge pressure: 0.5 bar
Max. air purge pressure: 1 bar
Closing time: 0.03 S
Opening time: 0.03 S
Max. permissible finger length: 90 mm
Max. permissible weight per finger: 0.35 kg
IP protection class: 40
Min. ambient temperature [°C]: 5
Max. ambient temperature [°C]: 90
