Schunk PGN+200/1AS Universal Gripper
Gebraucht
Auf Lager1 EinheitVersandbereit
Universal Gripper
The Schunk PGN-PLUS 200-1-AS Universal Gripper features pneumatic actuation, a 25 mm stroke, and a 3610 N closing force. Built for precision, it ensures reliability in industrial automation.200-1-ASAutomationComponentsForceGripperGrippingHighIndustrialPGN-PlusPneumaticPrecisionroboticRoboticsSchunkSystemUniversal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

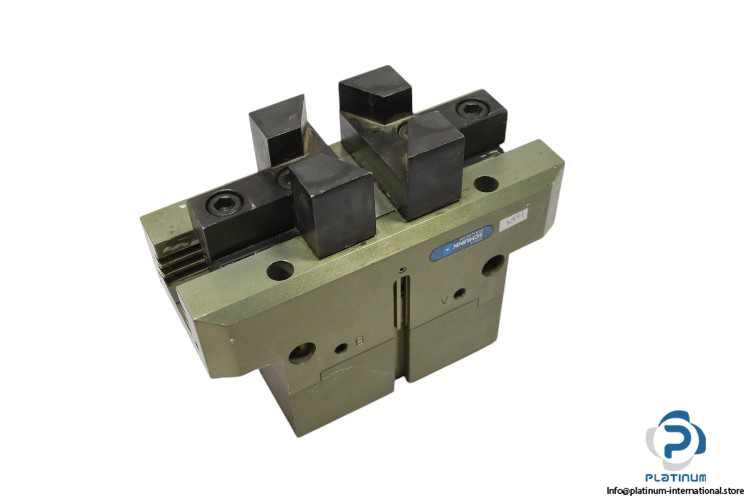

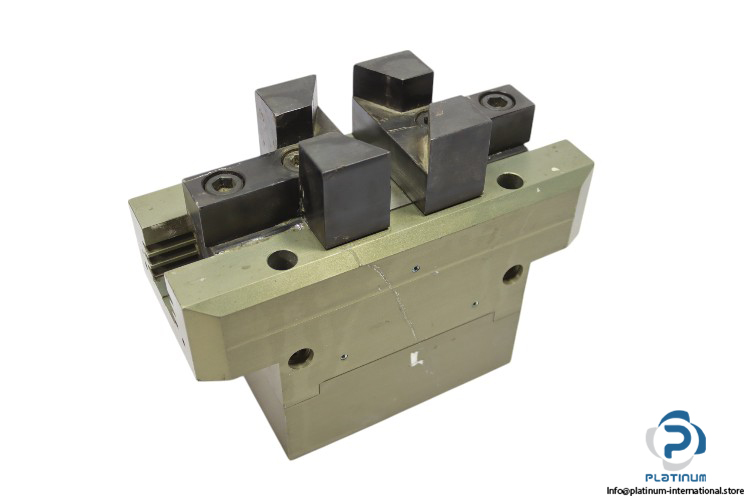

Schunk PGN-PLUS 200-1-AS Universal Gripper
The Schunk PGN-PLUS 200-1-AS Universal Gripper is a high-performance pneumatic gripper designed for precision handling in industrial automation. With a strong closing force of 3610 N and an efficient double-stroke cylinder system, this gripper ensures reliable and precise operation under demanding conditions.
Manufacturer: Schunk
Type: Universal Gripper
Model: PGN-PLUS 200-1-AS

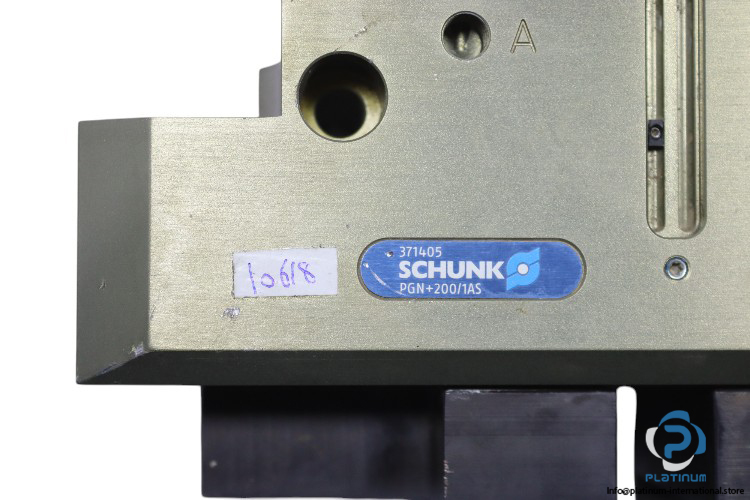

Id. No.: 371405
Designed for industrial robotics and automation, the Schunk PGN-PLUS 200-1-AS delivers exceptional precision, durability, and force, making it a reliable solution for high-precision gripping applications.
| Actuation | Pneumatic, with filtered compressed air |
| Stroke per Gripper Jaw | 25 mm |
| Closing Force | 3610 N |
| Min. Spring Force | 910 N |
| Housing Material | Aluminum |
| Base Jaw Material | Steel |
| Cylinder Volume per Double Stroke | 495 cm³ |
| Operating Pressure | 4 to 6 bar |
| Nominal Operating Pressure | 6 bar |
| Closing Time | 0.3 s |
| Opening Time | 0.6 s |
| Max. Permissible Finger Length | 240 mm |
| Max. Axial Force Fz max. | 5000 N |
| Ambient Temperature | Max. 90°C |
| Connection | G1/8 |
