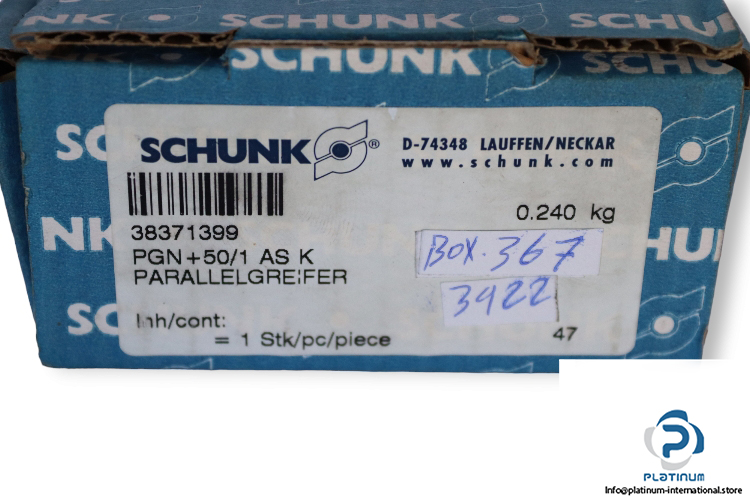

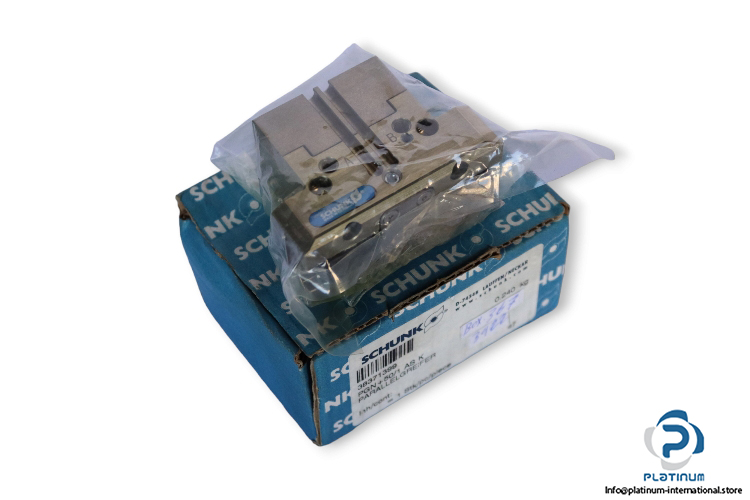

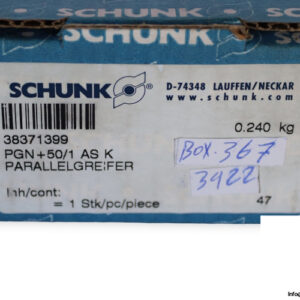

Schunk PGN+50/1 AS K Parallel Gripper

Manufacturer: SCHUNK
Type: Parallel gripper
Model: PGN+50/1 AS K
Part No.: 38371399

Stroke per jaw: 4 mm
Closing force: 295 N
Closing force (with finger lengths of 0 mm): 330 N
Min. spring force: 75 N
Fluid consumption double stroke: 10 cm³
Min. operating pressure: 4 bar
Max. operating pressure: 6.5 bar
Nominal operating pressure: 6 bar
Min. air purge pressure: 0.5 bar
Max. air purge pressure: 1 bar
Closing time: 0.015 s
Opening time: 0.025 s
Closing/opening time with spring: 0.03 s
Max. permissible finger length: 75 mm
IP protection class: 40
Min. ambient temperature: 5 °C
Max. ambient temperature: 90 °C
Repeat accuracy: 0.01 mm
Dimensions: 65 X 30 X 47 mm
Moment Mx max.: 27 Nm
