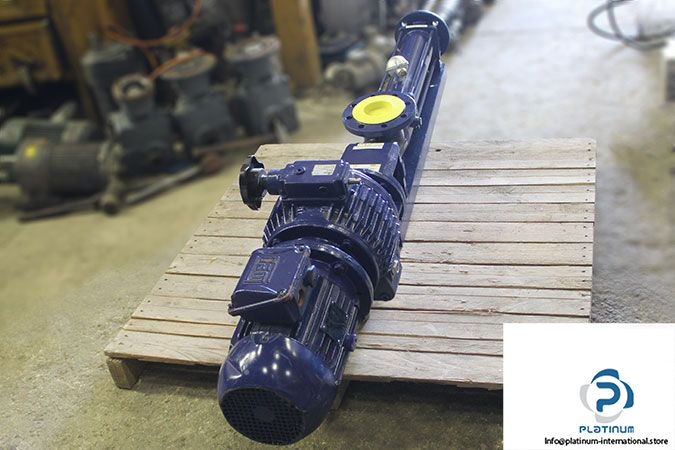

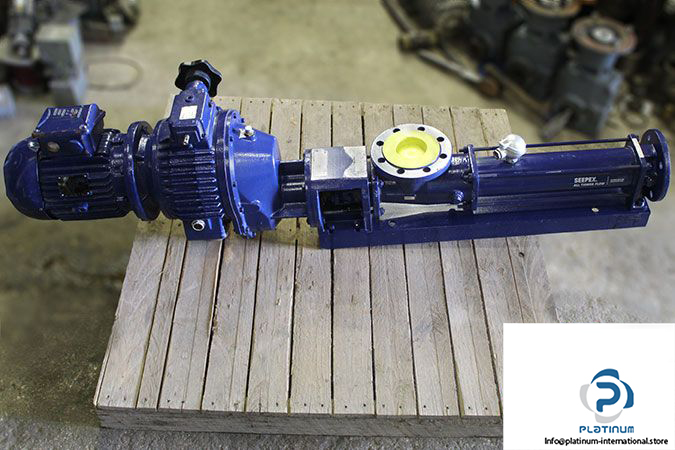

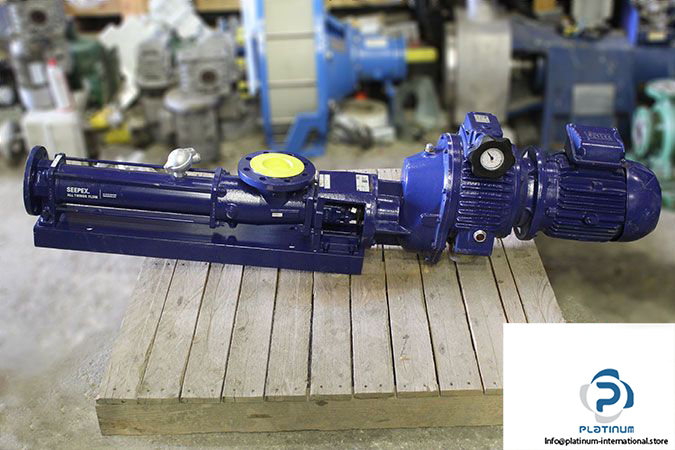

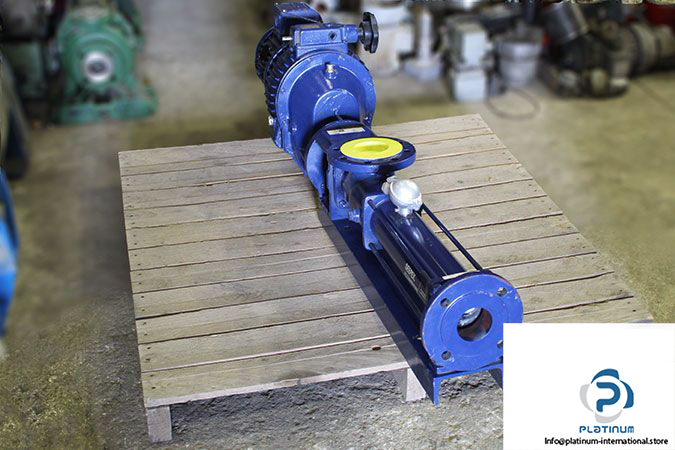

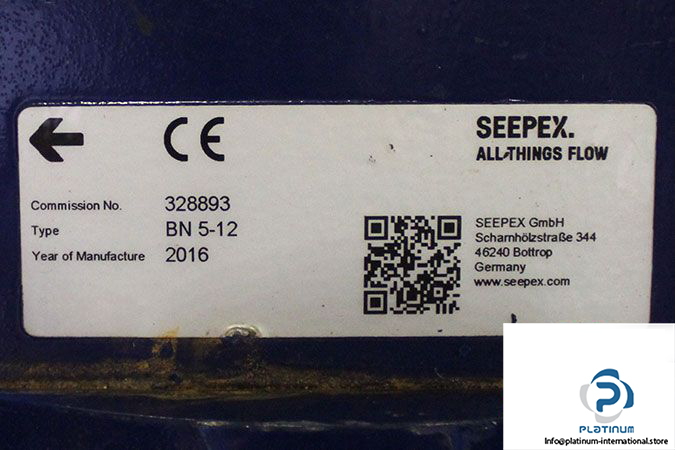

Seepex BN 5-12 Progressive Cavity Pump

Manufacturer: Seepex

Type: Progressive Cavity Pump

Model: BN 5-12

FEATURES AND BENEFITS

SPACE-SAVING

Thanks To the Drive Unit Being Positioned Directly Behind the Protective Frame and Dispensing with A Separate Pump Bearing

EASY MAINTENANCE

Simple Maintenance Thanks to Quick-Release Plug Connections Between the Unit and Drive System

LOW PULSATION

Gentle, Even Pumping Flow Without Dampeners or Condensers – Particularly Suitable for Sensitive Pumping Media

FLEXIBLE INSTALLATION OPTIONS

Depending On the On-Site Conditions, Installation Is Possible in A Horizontal or Vertical Position with A Large, Rotatable, Spherical Suction Intake

COMPATIBLE

Available With Various Rotor/Stator Geometries and A Wide Range of Different Shaft Seals – Tailored to Suit Any Conveying Process

COST-EFFECTIVE

Reduced Material Costs Thanks to a Design Without a Drive Casing, Elastic Coupling and Shared Baseplate

SCT RETROFIT OPTION

Retrofit Option For The Particularly Maintenance-Friendly Smart Conveying Technology (SCT)

Pressure: ≤ 48 bar

Conveying Capacity: 0.03…500 m³/h

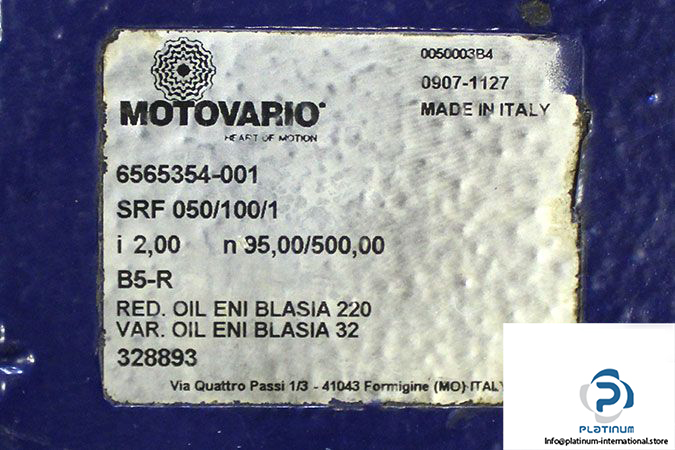

Attachment: MOTOVARIO 050/100/1 GEAR REDUCER

Manufacturer: Motovario

Type: Gear Reducer

Model: 050/100/1

Reduction Ratio: 2

Rated Revolutions: 95…500 rpm

Mounting Position: B5

Gear Reducer Oil Type: ENI BLASIA 220

Variator Oil Type: ENI BLASIA 32

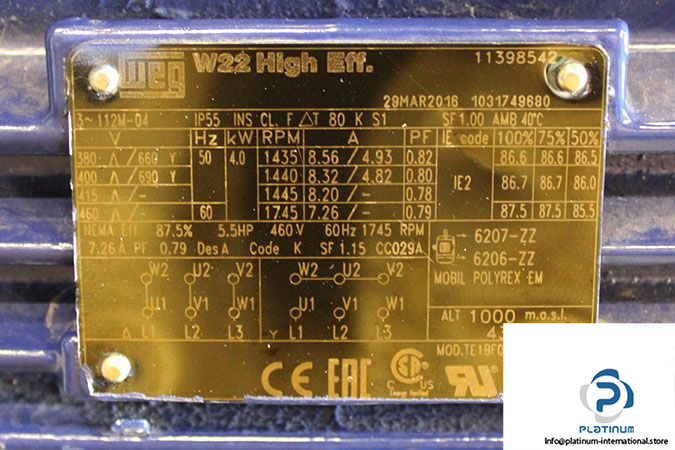

Attachment: WEG 29MAR2016 3 PHASE ELECTRIC MOTOR

Manufacturer: WEG

Type: 3 Phase Electric Motor

Model: 29MAR2016

At 50 Hz

At 1435 rpm

• Rated Voltage(star): 660 V
• Rated Voltage(delta): 380 V
• Rated Current: 56…4.93 A
• Power Factor:82

At 1440 rpm

• Rated Voltage(star): 690 V
• Rated Voltage(delta): 400 V
• Rated Current: 32…4.82 A
• Power Factor:80

At 1445 rpm

• Rated Voltage(delta): 415 V
• Rated Current: 2 A
• Power Factor:78

Rated Power: 4 kW

At 60 Hz

At 1745 rpm

• Rated Voltage(delta): 460 V
• Rated Current: 26 A
• Power Factor:79
• Rated Power:5 HP

Ambient Temperature: 40 °C

Protection Class: IP55

Duty: S1

Insulation Class: F

Gross Weight: 175.7 kg
