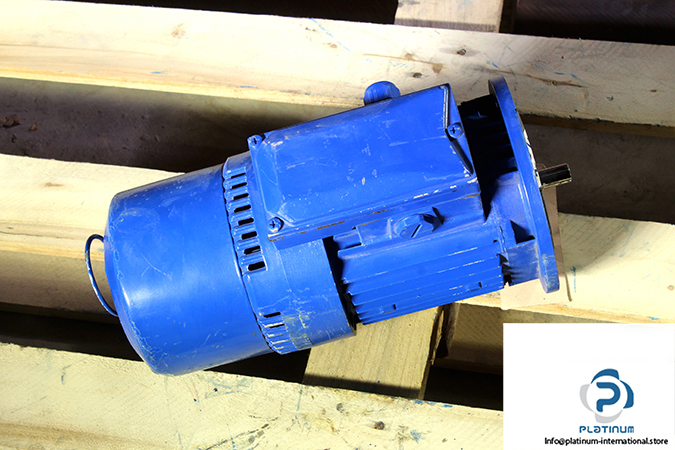

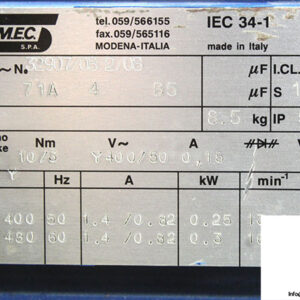

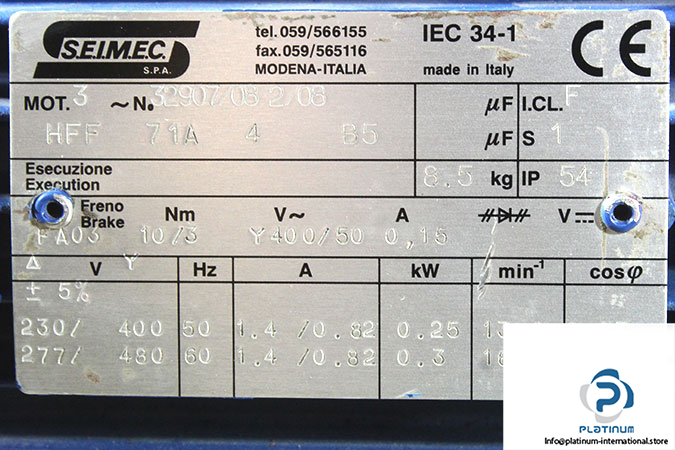

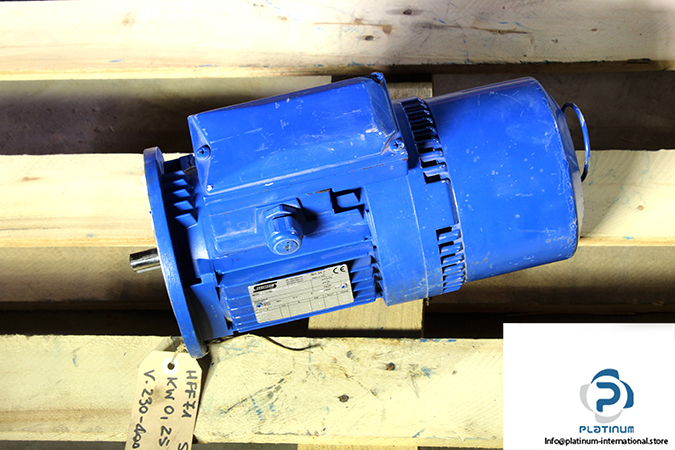

Seimec HFF 71A 4 B5 Brake Motor

Manufacturer: Seimec
Type: Brake Motors
Model: HFF71A4B5

Motor Speed [r/min]: 1390/1670
Motor Power [kW]: 0.25/0.3
Rated Voltage [V]: 230/277 Delta
Rated Voltage [V]: 400/480 Star
Nominal Current [A]: 1.4/0.82 Delta/Star
Motor Frequency [Hz]: 50/60
Cos Phi: 0.63
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Mounting Position [MI]: B5
Brake Model: FA03
Brake Torque [Nm]: 10/3
Brake Voltage [V]: 400/50
Brake Current [A]: 0.15
Weight [kg]: 10,0
