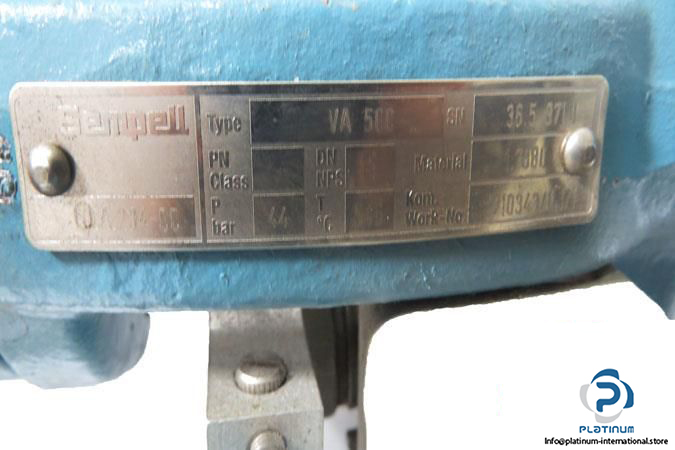

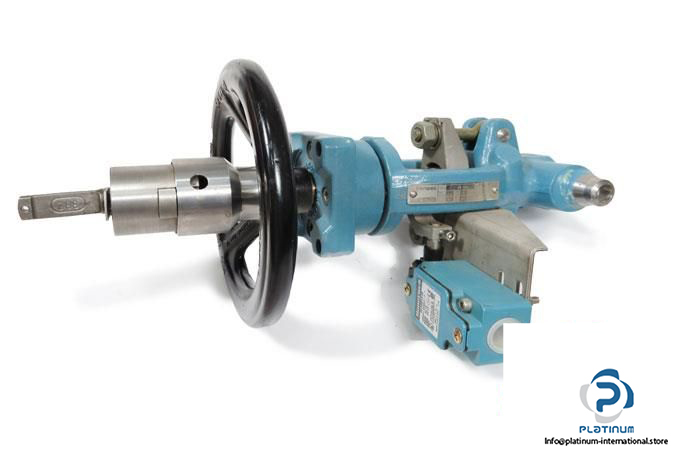

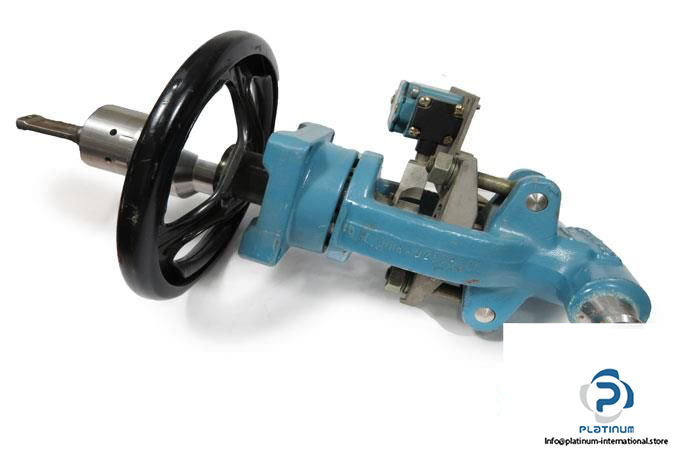

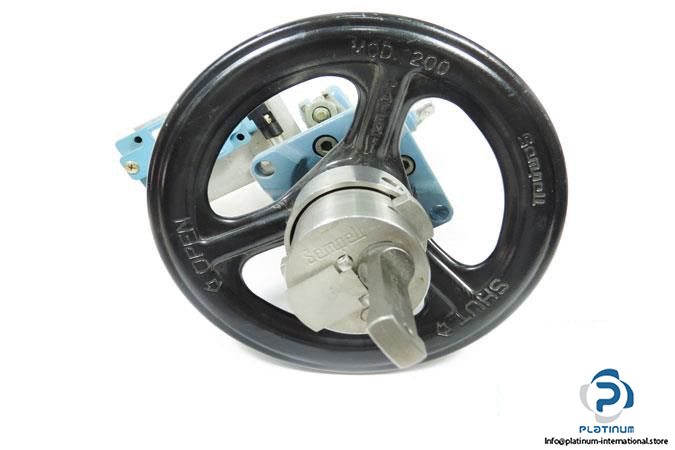

Sempell VA 500 High-Pressure Stop Valve

Manufacturer: SEMPELL EMERSON

Type: HIGH-PRESSURE STOP VALVE

Model: VA 500

Valve Design: 500

Material Specification: 01/11/10/13/30

Body Material: 10CrMo910

Pressure: 44 bar

Nominal Valve Size: DN 15

Temperature: 546 °C

Accessories: Valve Lock A3-A5

Valve Type: Stop Valve

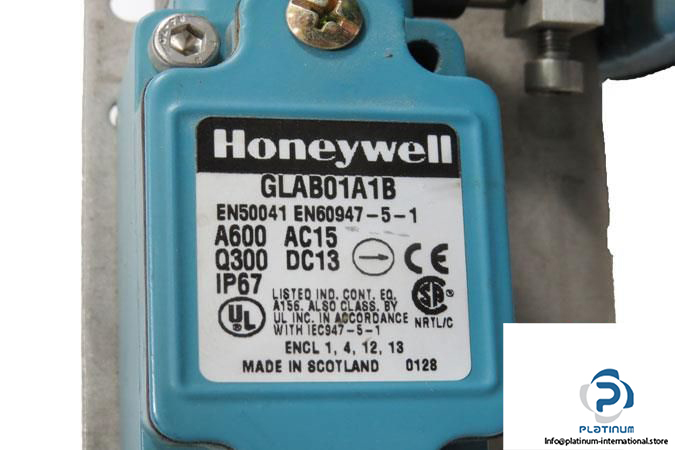

INCLUDE HONEYWELL GLAB01A1B GLOBAL LIMIT SWITCHE:

Manufacturer: HONEYWELL

Type: GLOBAL LIMIT SWITCHE

Model: GLAB01A1B

Body Style Code: EN50041, non-plug-in

Conduit Entry Threading Code: PG 13.5

Basic Switch: SPDT snap action

Head/Actuator: Side rotary, fixed, 19 x 6 steel roller

Current Rating: 10 A

Supply Voltage: 600 V AC and 250 V DC Max.

Operating Force: 0.33 N

Termination Style: Screw

Sealing: IP67

Weight: 9.3 kg
