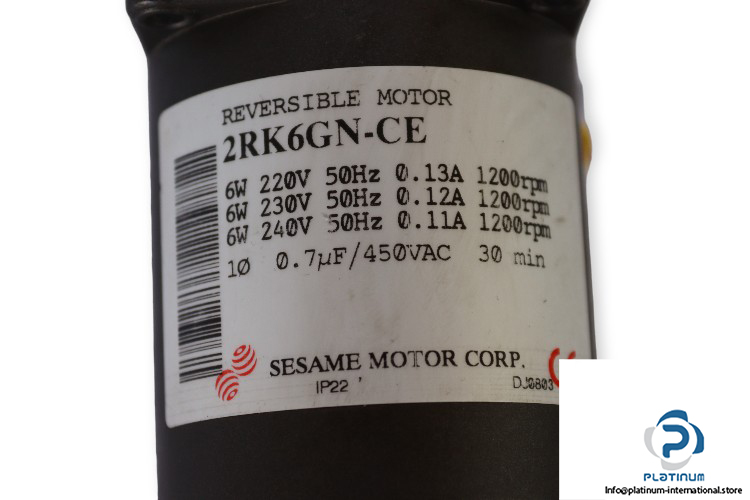

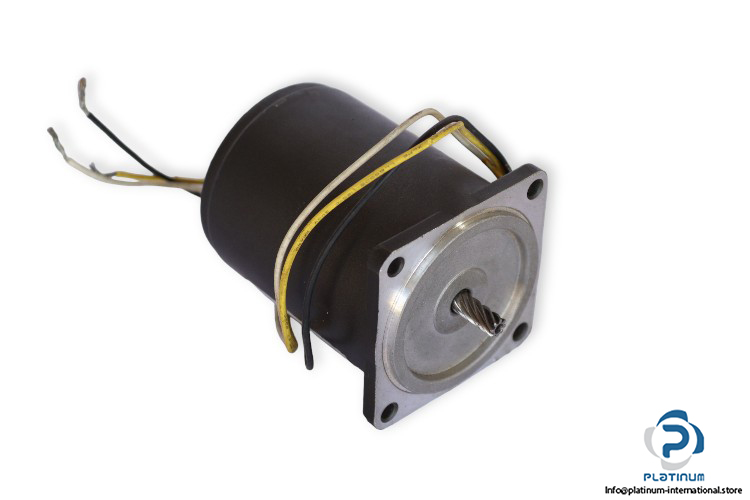

Sesame Motor 2RK6GN-CE Reversible Motor

Manufacturer: SESAME MOTOR
Type: Reversible Motor
Model: 2RK6GN-CE

Shape of shaft: pinion shaft
Output Power: 6 W
Rated Time:  30
Capacitor: 0.75 µf/ 450VAC
Gear Ratio: 3:180
Horse Power: 1/125 HP
Protection Class: IP 22
number of poles: 4 p
At Voltage 220 V
Frequency: 50 Hz
Rated Speed: 1200 rpm
Starting Torque: 0.95/ 0.94 Kg.cm
Rated Torque: 0.53/ 0.55 Kg.cm
Rated Current: 0.13 A
At Voltage 230
Frequency: 50 Hz
Current: 1.12 A
Speed: 1200 rpm
At voltage 240
Frequency: 50 Hz
Current: 0.11 A
Speed: 1200 rpm
Gearhead Model: GN Model (Helical Gear)
