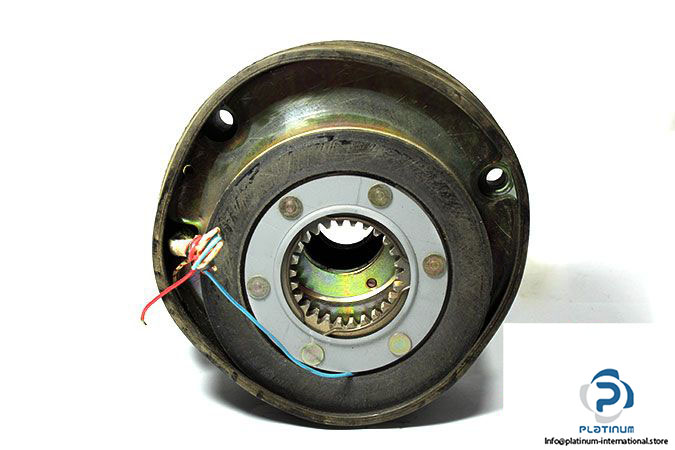

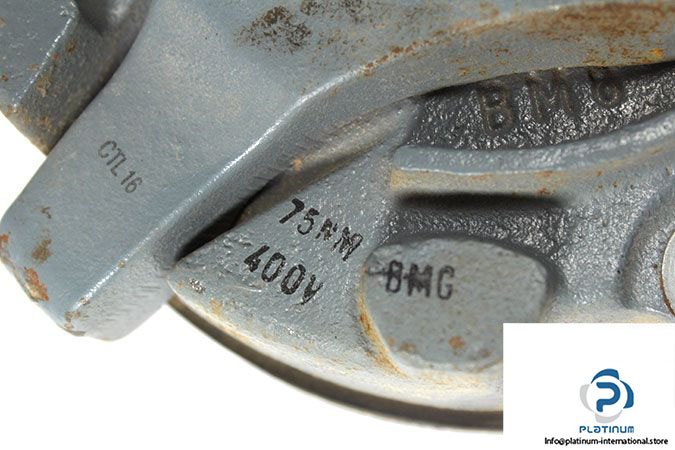

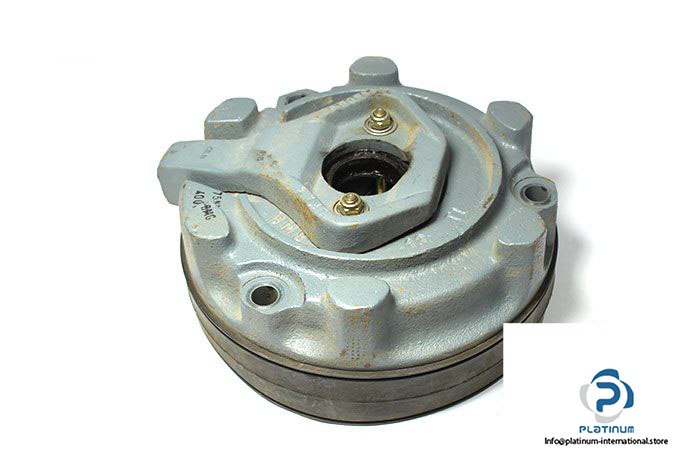

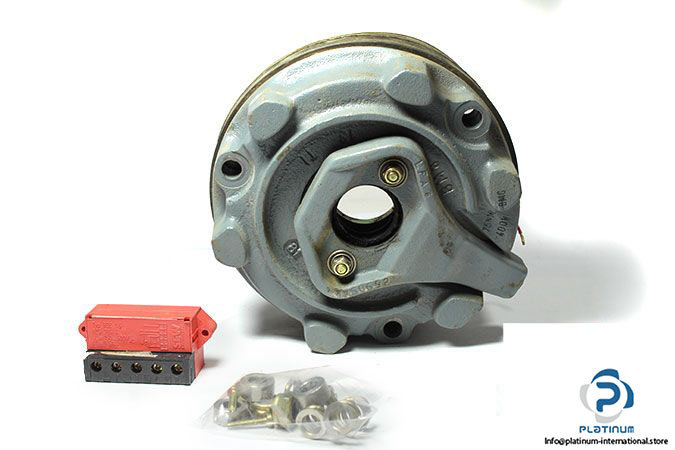

SEW BM8HF 400V 75Nm ELECTRICAL BRAKE

Manufacturer: SEW –  Eurodrive

Type: Electrical Brake

Model: BMG8HF

Part No.: 08714983

Voltage: 400 V AC

Braking Torque: 75 Nm

Coil Power: 70 W

Uses: For Motor Sizes DV112 M/DV 132 S

Rubber Sealing Collar: 182 260 8

Red Brake spring: 01355708

Normal Brake spring: 01848453

Attachment: SEW BGE 1.5 825 385 4 RECTIFIER

Manufacturer: SEW Eurodrive

Type: One-Way Brake Rectifier

Model: BGE 1.5

MRN: 08253854

Uses: to be mounted in Motor Conduit Boxs for BMG brakes, BM brakes, BR brakes

Voltage: 150…500 V AC

Holding current: 1.5 A

Dimensions: 33 x 36 x 77 mm

Weight: 0.08 kg
