SEW EG7C Incremental Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
Incremental Encoder
The SEW OG 83 UN 1024 / EG7C is a high-performance incremental encoder for motors 132M“280, offering IP66 protection, up to 6000 rpm, and 120 kHz pulse frequency.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

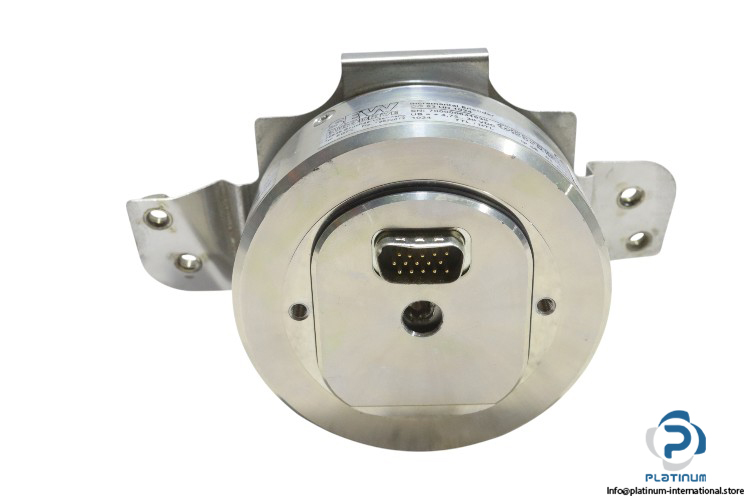

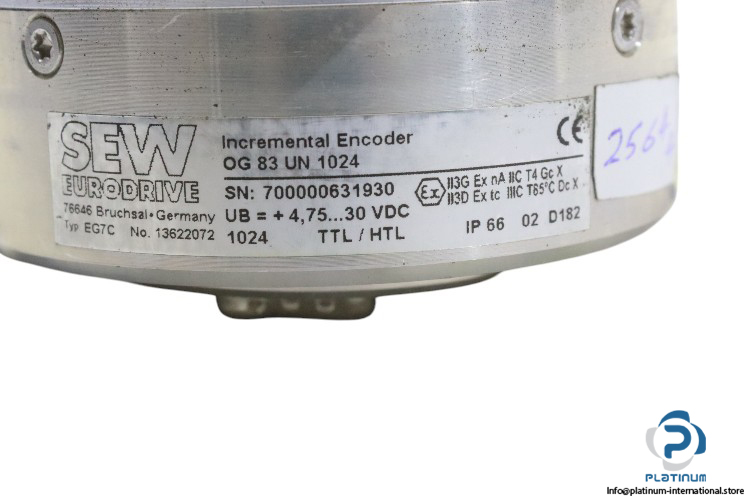

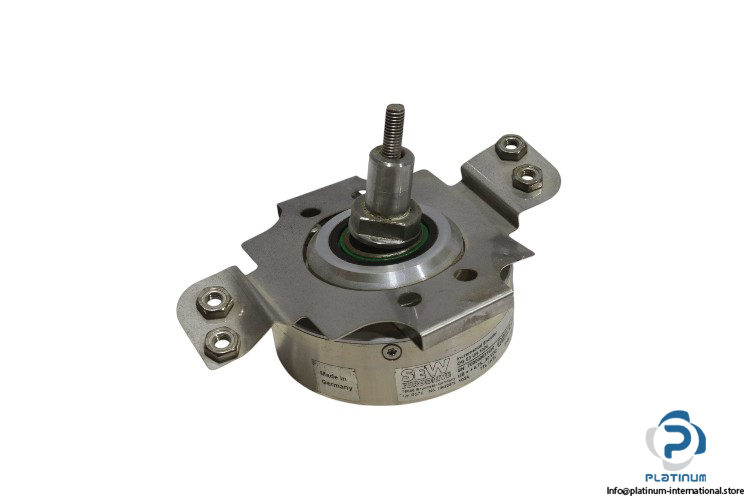

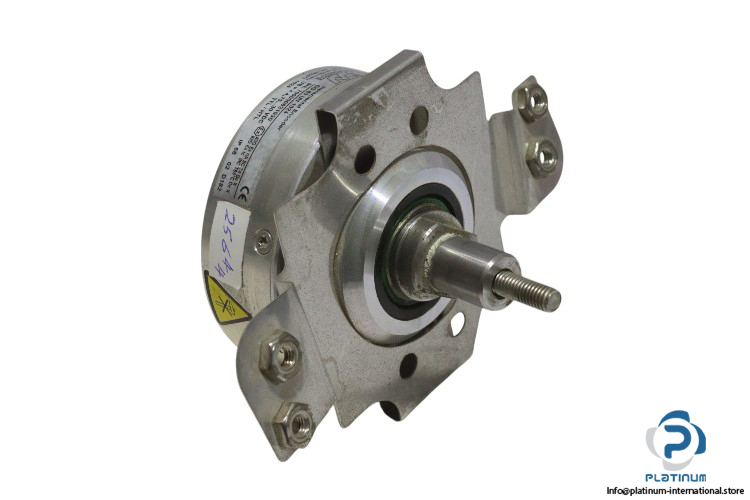

SEW OG 83 UN 1024 / EG7C Incremental Encoder
The SEW OG 83 UN 1024 / EG7C (Part No. 13622072) is a high-precision incremental encoder engineered for accurate speed and position feedback in industrial automation systems. Designed for use with motor sizes 132M to 280, it ensures dependable performance even under challenging environmental conditions.
Manufacturer: SEW
Type: Incremental Encoder
Model: OG 83 UN 1024 / EG7C
Part No.: 13622072
| Sizes | 132M “ 280 |
| Supply Voltage | 4.75 V “ 30 V DC |
| Max. Current Consumption | 240 mA |
| Max. Pulse Frequency | 120 kHz |
| Output Current per Track | 60 mA |
| Maximum Speed | 6000 rpm |
| Degree of Protection | IP66 |
| Connection | Terminal box on incremental encoder |
| Ambient Temperature | -30 to 60 °C |
